LD10237

Description

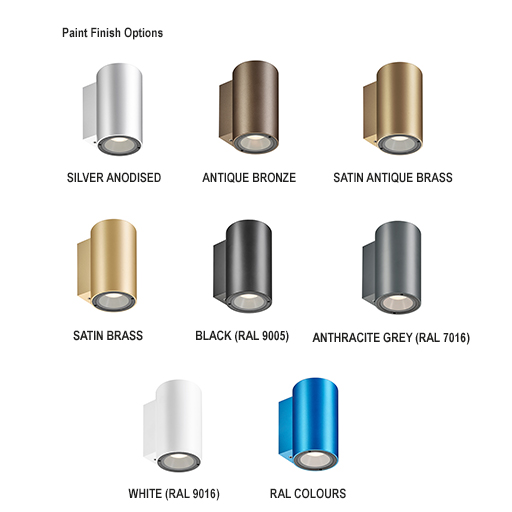

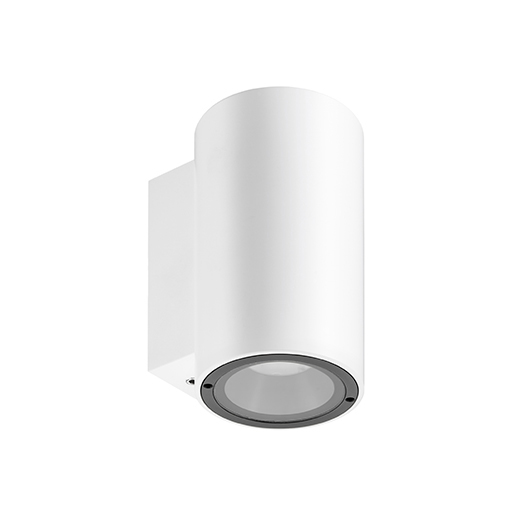

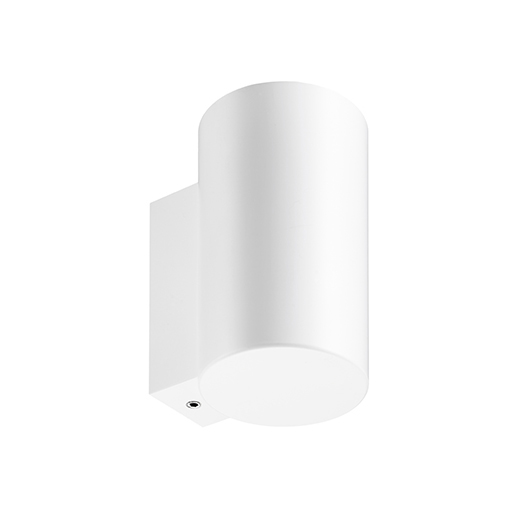

The LD10237 is a powerful interior and exterior, surface mounted product, designed for wall washing applications, that dependant on its chosen orientation, can illuminate the surface up or downwards. It can be specified with a wide range of options allowing it to suit most project requirements. Available LED engines include E3, Tunable White, RGBW and F1 which offer a range of colour temperatures between 2200K-5000K, with multiple beam angles to choose from. The LD10237 body is a machined billet of aluminium offering a robust and minimal design in numerous paint finishes with discreet fixing options available. Low glare illumination has been achieved by recessing the LED into the body, which is then held in place by anti-glare rings. This is a very tough, high quality fitting, machined from high grade materials, ensuring excellent thermal and light output performance.

Applications

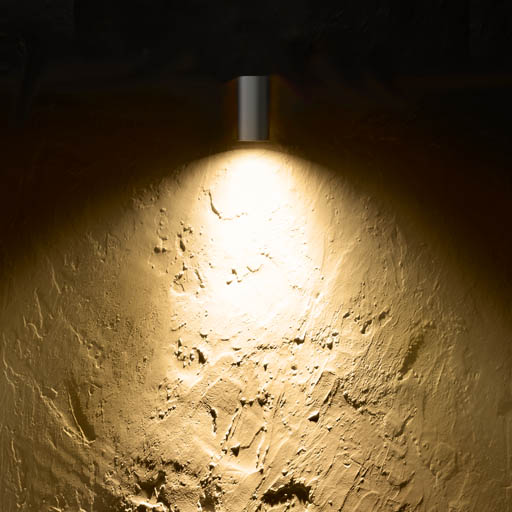

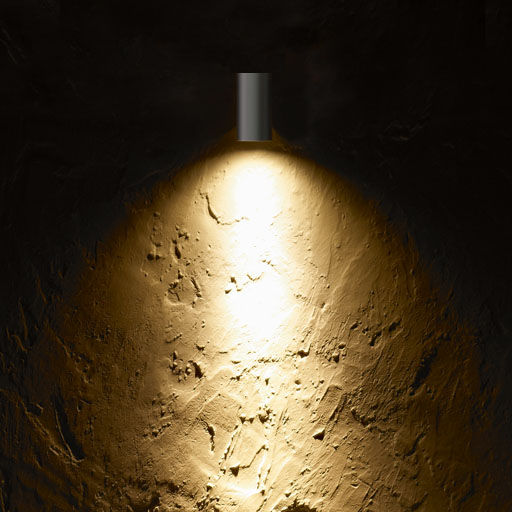

Colour Change, External, Surface Mounted, Wall Wash, Yacht Lighting, Tunable White, (600lm-900lm) Compact+ range

Fixing

Fixing is by a first fix stainless steel bracket attached to the mounting surface. The main body is then attached to the bracket by two discreet stainless steel M6 security grub screws.

LED Information

E3 LED Engine - Up to 10W @ 700mA (White)

E3-2CH LED Engine
Channel 1 - Up to 10W @ 700mA (White)
Channel 2 - Up to 2 x 2.4W @ 700mA (Secondary colour)

F1 LED Engine - up to 7W @ 700mA

TW LED Engine - Up to 7W @ 500mA (2 channels of 2 x 1.7W)

RGBW LED Engine - Up to 7W @ 500mA

CLR LED Engine - Up to 7W @ 500mA

Materials

Body: machined billet of aluminium

Bracket: stainless steel

IP Rating

IP67
