LD1220

Description

The LD1220 has been discontinued and is replaced by our range of high-power downlights including the LD1094 and LD1083. Please speak to a member of our sales team by calling +44 (0) 1322 524 902 or emailing [email protected] for any project requirements.

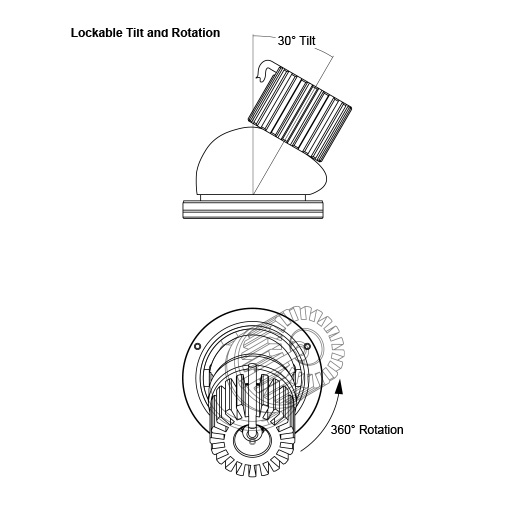

The LD1220 is a very powerful, low glare, exterior rated, adjustable downlighter. This is a specialist product primarily designed for use externally on yachts, so special attention needs to be paid to the mounting of this product. It is machined from high grade materials, to ensure it can withstand sea environments.

Applications

Downlights, Wall Wash, Yacht Lighting

Fixing

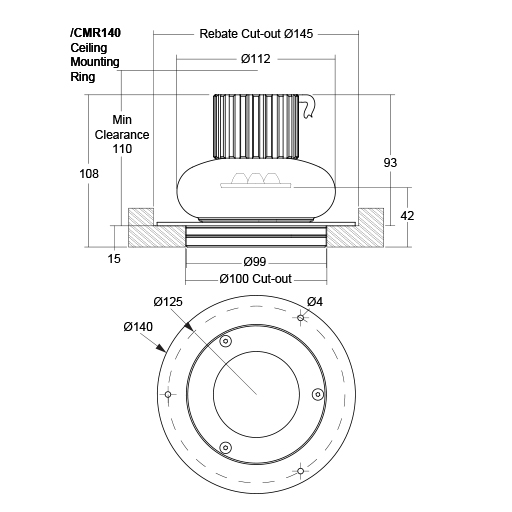

Metal Ceiling Mount Ring

LED Information

1 x 6 LED cluster: 7W @ 350mA, 10W @ 500mA and 14W @ 700mA

Materials

Stainless steel bezel, with an anodised aluminium body

IP Rating

IP67 from the front & IP54 from behind

Accessories

Ceiling mount ring & honeycombe louvre

Downloads

LD1220
LD1220 Datasheet
LD1220
Design Pack
LD1220
Photometric LDT
Files
LD1220
Drivers

Similar Products

LD1210
