LD18

Description

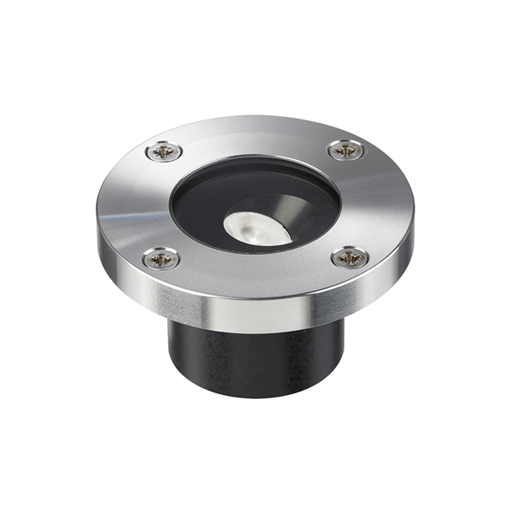

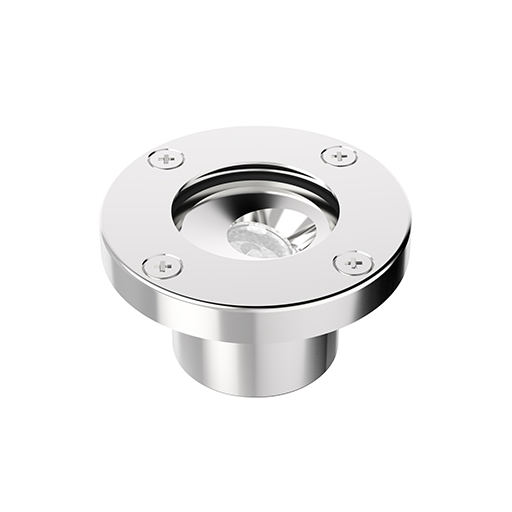

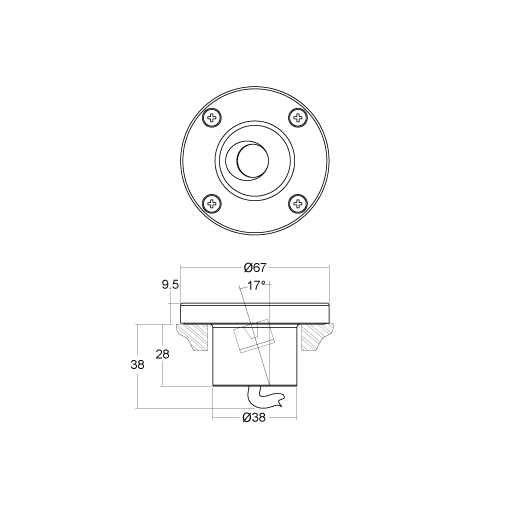

The updated LD18 utilizes the latest LED technology with a typical CRI of 93 in warm white and has been fitted with our new optics. The lens assembly is now tilted by 17° for floor or wall washing applications. It can be used as an uplight or wall light, with 5mm thick toughened glass, polished & passivated 316 stainless steel bezel and anodised aluminium body. When used on yacht exteriors the body can be made from 316 stainless steel.

Applications

External, Floor Wash, Recessed Uplighting, Steps, Wall Wash, Yacht Lighting

Fixing

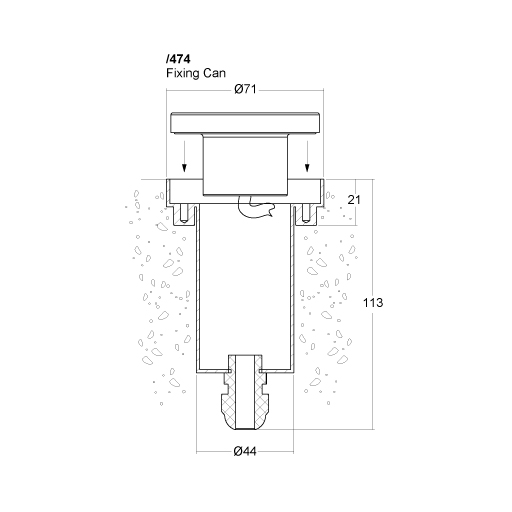

4x countersunk screws, /474 concrete housing

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD18-C1-350), 1.7W @ 500mA (LD18-C1-500) and 2.4W @ 700mA (LD18-C1-700)

Materials

316 Stainless Steel bezel, anodised aluminium or stainless steel body

IP Rating

IP68 - Not for permanent submersion (for permanent submersion applications use LD242A)

Accessories

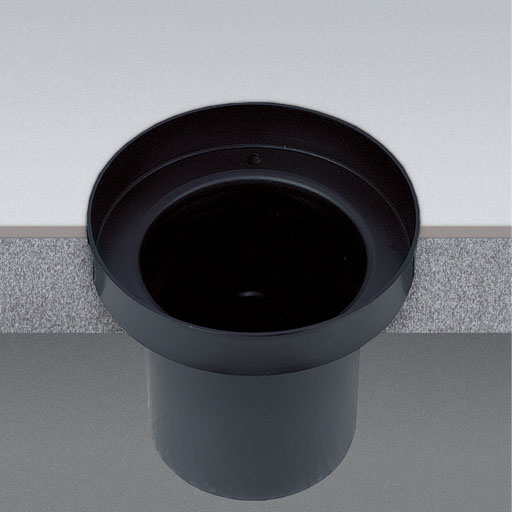

/474 Concrete housing

Downloads

LD18
LD18C1-1 Datasheet
LD18
Design Pack
LD18
Install Instructions
LD18
Drivers
