LD242A

Description

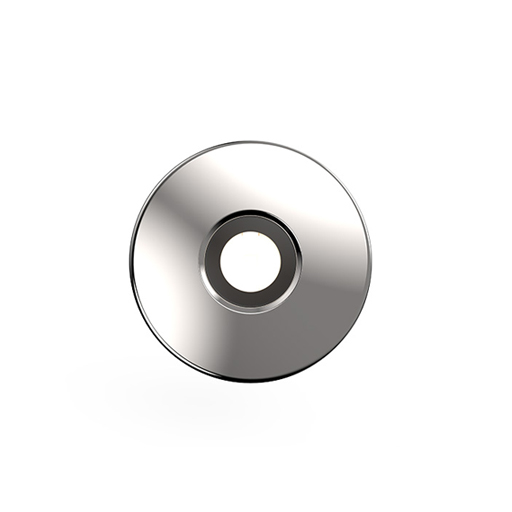

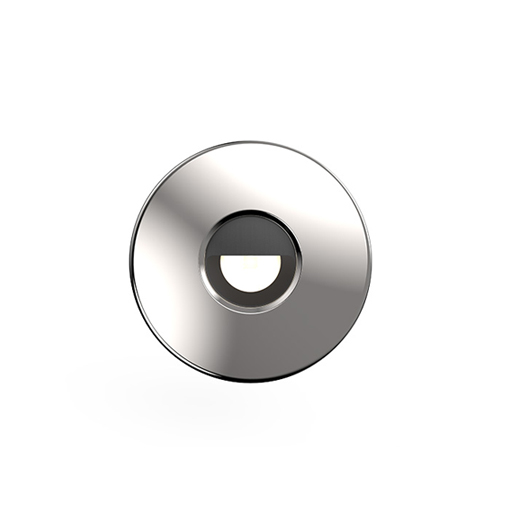

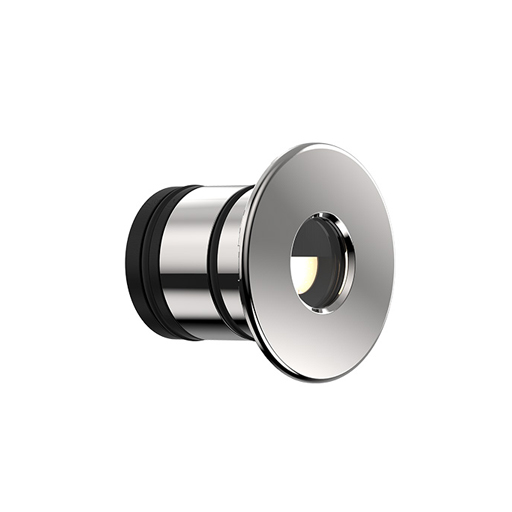

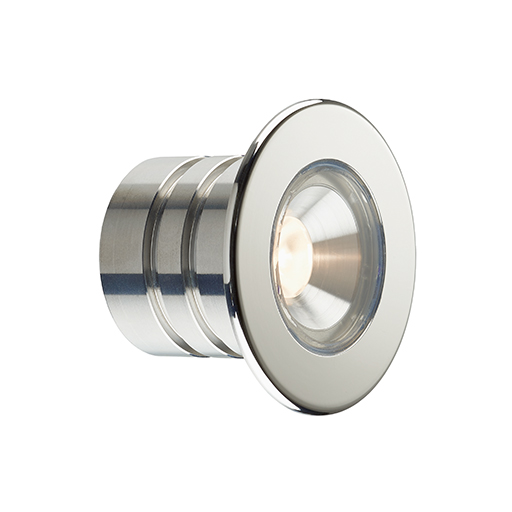

The LD242A has a Polished & Passivated 316 Stainless Steel bezel for use in swimming pool steps and wet areas. It has no visible fixings and is available with a choice of beam angles and colour temperatures.

Applications

External, Floor Wash, Steps, Yacht Lighting, Underwater

Fixing

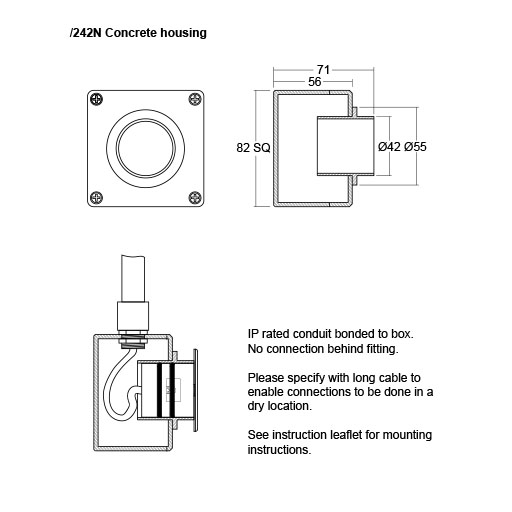

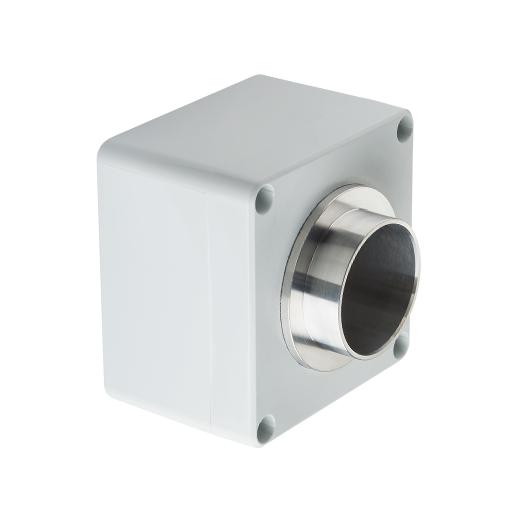

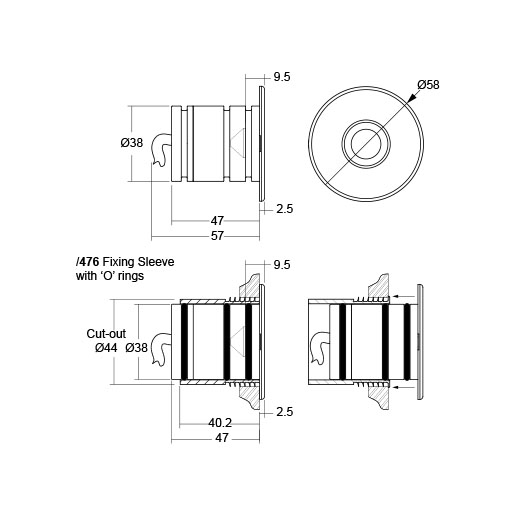

O-rings with /476 fixing sleeve, Concrete housing /242N

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD242A-C1-350) 1.7W @ 500mA (LD242A-C1-500) 2.4W @ 700mA (LD242A-C1-700)

Materials

Polished & Passivated 316 Stainless Steel bezel, hard anodised aluminium body, 5mm low iron glass

IP Rating

IP68 (Up to 2m)

Accessories

/GS Glare Shield

Downloads

LD242A
LD242AC1-2 Datasheet
LD242A
Design Pack
LD242A
Photometric LDT
Files
LD242A
Drivers

Similar Products

LD242
