LD41

Description

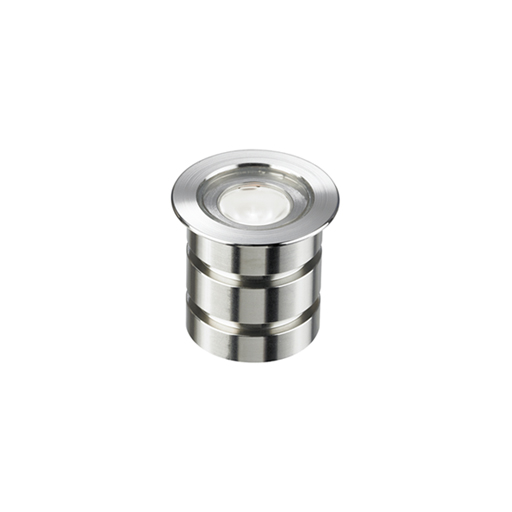

Our smallest fitting with a bezel diameter of just 34mm, the LD41 is a very tough, miniature fitting. It can be run up to 1.7W, and comes with a choice of beam angles making it suitable for a wide range of applications.

Applications

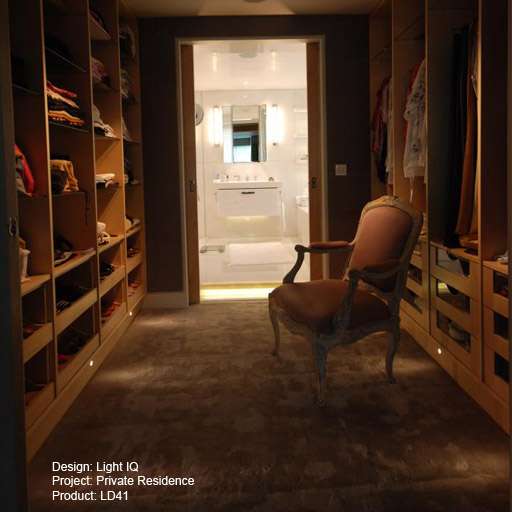

Bathroom and Mirror, Display and Shelf, External, Recessed Uplighting, Steps, Wall Wash, Yacht Lighting, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

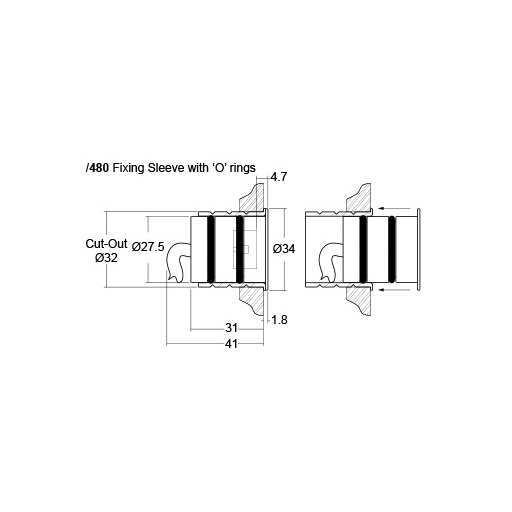

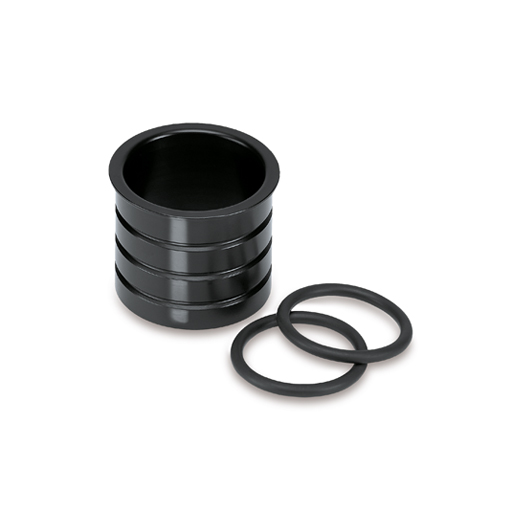

/480 fixing sleeve and O-rings, /480GT Ground tube

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD41-C1-350), 1.7W @ 500mA (LD41-C1-500)

Materials

Machined 316 Stainless Steel

IP Rating

IP68 - Not for permanent submersion (use LD242A)

Downloads

LD41
LD41C1-5 Datasheet
LD41
Design Pack
LD41
Photometric LDT
Files
LD41
Install Instructions
LD41
Drivers
