LD46

Description

A small round, high quality fitting rated IP67 with no visible fixings. Manufactured with a machined 316 stainless steel bezel and black anodized body these can be used for indoor and outdoor use. The compact design and set back optics reduce glare, makeing them ideal for step lighting. The 12° beam will kiss light across the step or a 31° beam can be used to wash light more directly to the edges. Available with a choice of beam angles and colour temperatures.

Applications

Bathroom and Mirror, Downlights, External, Floor Wash, Steps, Yacht Lighting, Pathway, (50lm-200lm) Miniature range

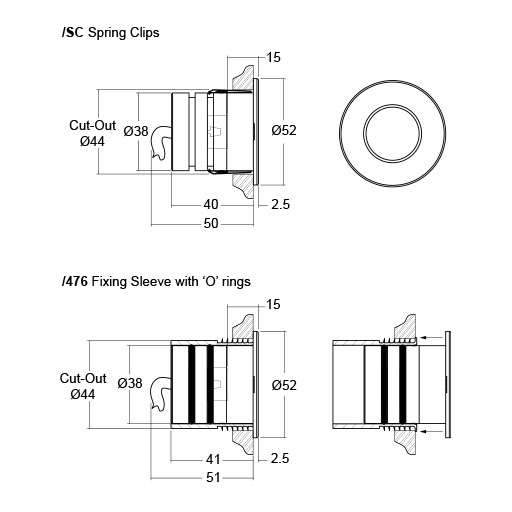

Fixing

Spring clips, 'O' rings and the /476 fixing sleeve

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD46-C1-350), 1.7W @ 500mA (LD46-C1-500) or 2.4W @ 700mA (LD46-C1-700)

Materials

Machined 316 Stainless Steel bezel, hard anodised aluminium body, 5mm borosilicate glass

IP Rating

IP67

Downloads

LD46
LD46C1 Datasheet
LD46
Design Pack
LD46
Photometric LDT
Files
LD46
Install Instructions
LD46
Drivers
