LD65

Description

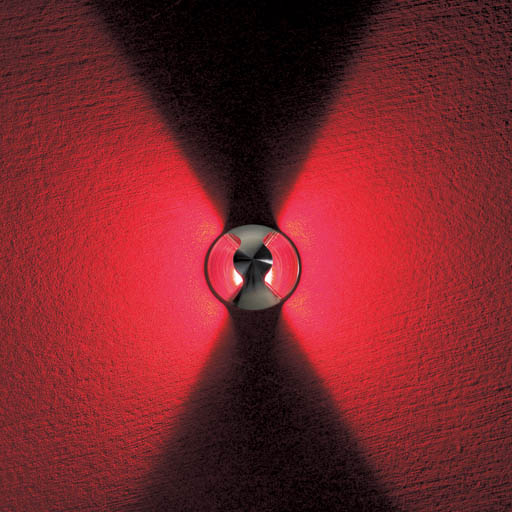

The LD65 is a miniature in-ground LED surface washer that uses a specially designed reflector to produce 2 x 120° angles of illumination. It is manufactured from a single billet of 316 stainless steel making it extremely robust. It is useful for a wide range of applications including steps and pathways and can be used on interior or exterior walls to create interesting effects. With no visible fixings it is secured either by O-rings and a first fix sleeve or a ground tube.

Applications

External, Floor Wash, Steps, Yacht Lighting, Pathway, RLE - Replaceable Light Engines

Fixing

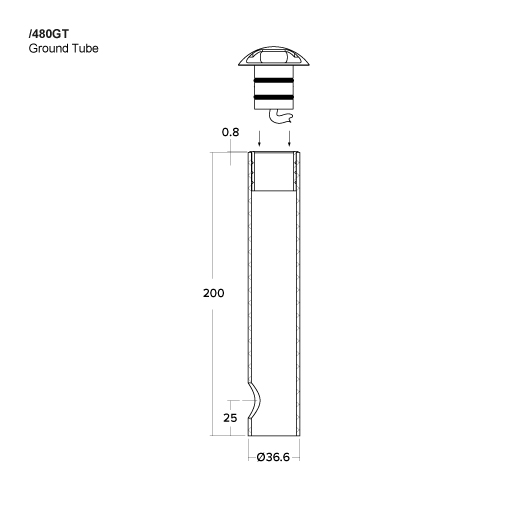

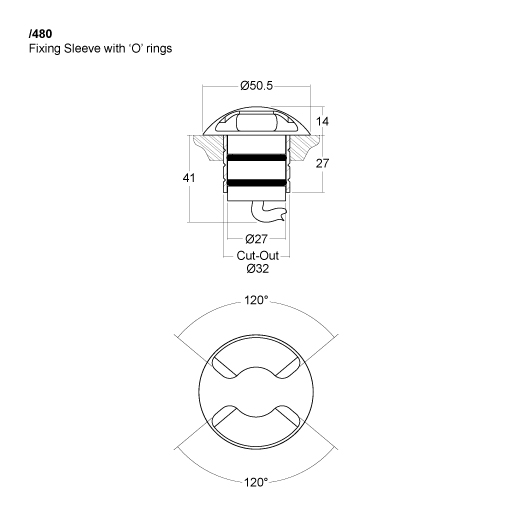

O-rings and the first fix /480 sleeve, /480GT ground tube

LED Information

NICHIA:1.2W @ 350mA (LD65-C1-350), 1.7W @ 500mA (LD65-C1-500)

Materials

316 Stainless Steel, Polished & Passivated 316 Stainless Steel, Flamed Solid Bronze

IP Rating

IP67

Downloads

LD65
LD64LD65C1 Datasheet
LD65
Design Pack
LD65
Photometric LDT
Files
LD65
Install Instructions
LD65
Drivers
