LD1093Z

Description

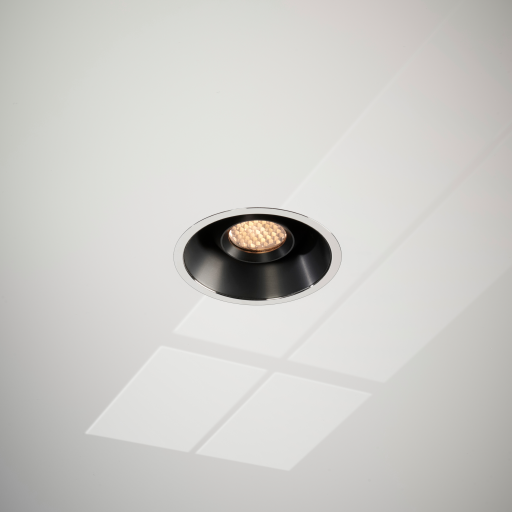

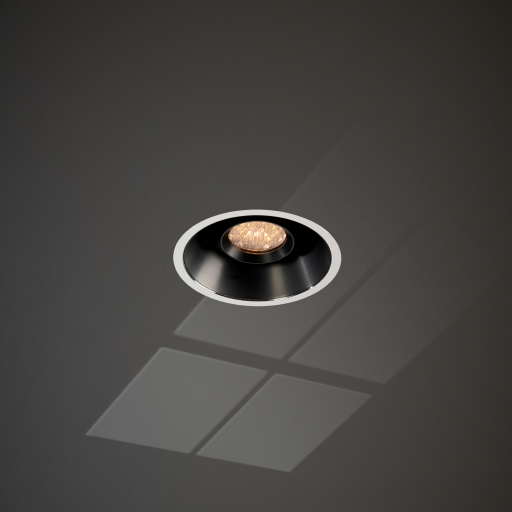

The LD1093Z is a high-power, IP67, adjustable recessed LED downlight engineered specifically for demanding marine environments. This modular lighting solution comes with a ‘Zero’ trimless bezel, but is also available with a trimmed bezel (LD1093). It has an innovative ball joint allowing the lens assembly to be rotated 360°, tilted at up to 25° and locked in place with a simple one-handed twist. Post-installation focusing is quick and efficient, with no need to remove the product from its mounting surface.

The LD1093Z is compatible with a variety of concealed fixing options, making it adaptable to a wide range of ceiling types, including suspended/drop ceilings and thicknesses down to 1mm. With a light output exceeding 1000 delivered lumens, this product is available with the E3 or N1 LED engine, offering colour temperatures ranging from 2200K to 5000K. Choose from a variety of beam angles, from 12° to 65°, as well as two elliptical options. Designed for adaptability, this robust downlight ensures exceptional thermal management and light performance, making it the ideal solution for marine environments.

Key Features

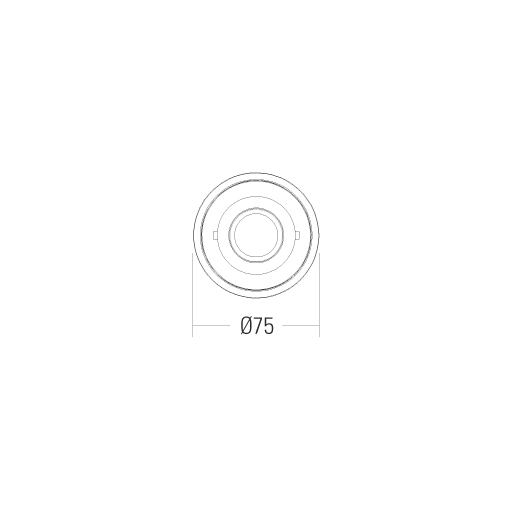

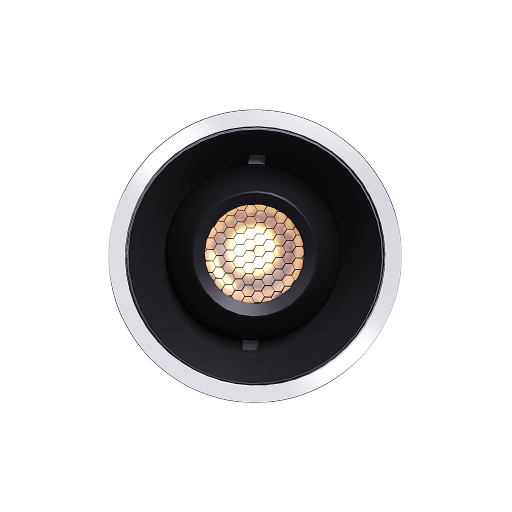

  • Zero Trim (trimless) flush mount bezel

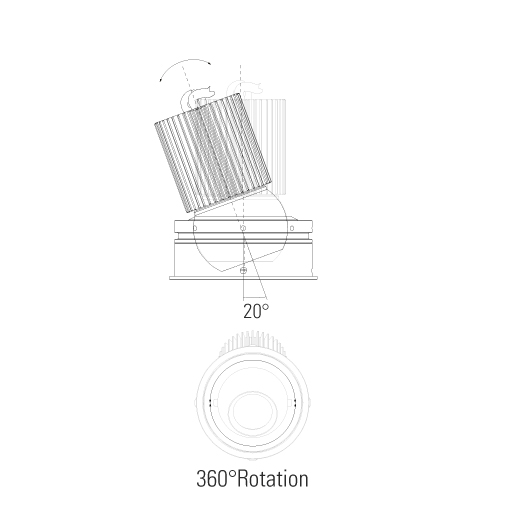

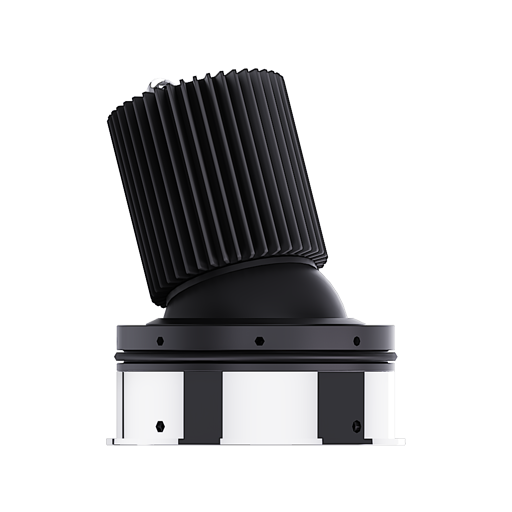

  • Innovative lockable 360° rotating ball-joint can be positioned in any direction and tilted up to 25° for ultimate flexibility when focusing onsite
  • Quick and easy on-site focusing once the product is installed

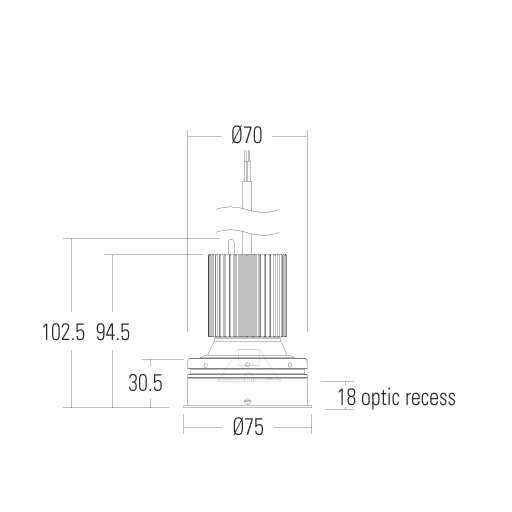

  • Very shallow depth, ideal for height restricted applications

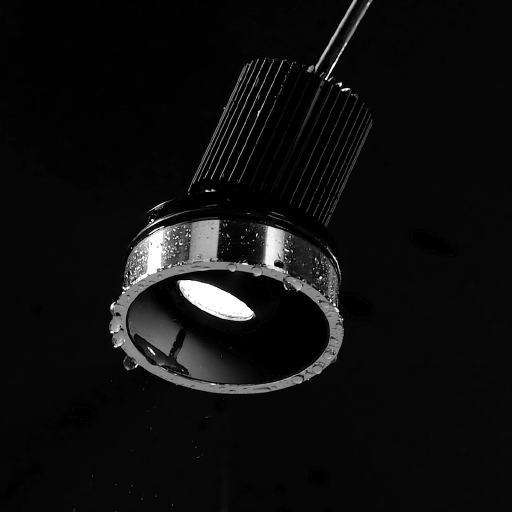

  • Rated IP67
  • Interchangeable optics and glare control accessories including honeycomb louvre
  • Beam angles ranging from 12° Narrow, to 65° Extra Wide, and 2 Oval options
  • E3 and N1 LED engines available, producing up to 1032 lumens in 3000K at 700mA
  • Single optic produces superior beam shape and no multiple shadows
  • High quality machined bezel available in: Polished & Passivated 316 Stainless Steel, 316 Stainless Steel, White (RAL 9016), Black (RAL 9005), Classic Bronze, Textured Mars Bronze, Textured Fir Green, Gunmetal Grey and any RAL colour
  • Various hidden fixing methods for multiple ceiling types
  • Contains our integral moisture guard (anti-wicking barrier), stopping water ingress from going up the cable into the product from incorrect IP-rated connections
  • Switched, 0-10V, Casambi, DMX, DALI or Mains dimmable drivers available





Applications

Downlights, Wall Wash, Yacht Lighting, (600lm-900lm) Compact+ range, Trimless

Fixing

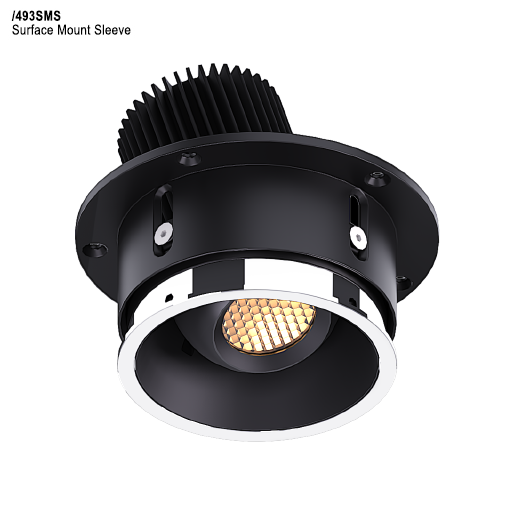

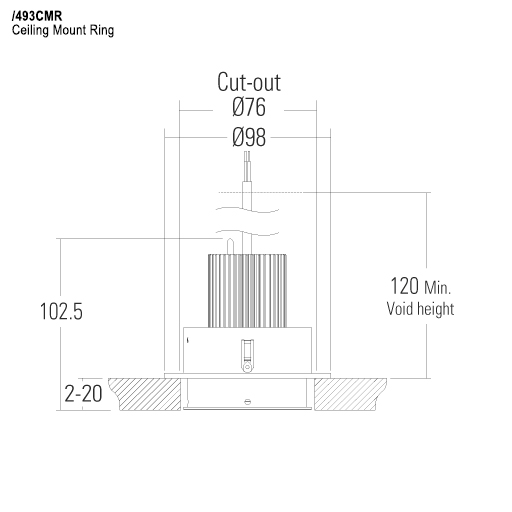

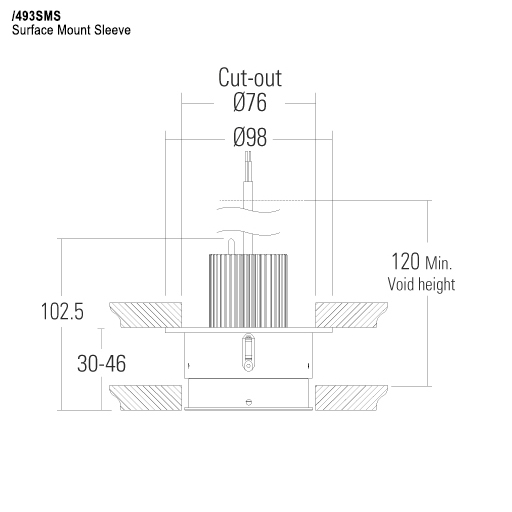

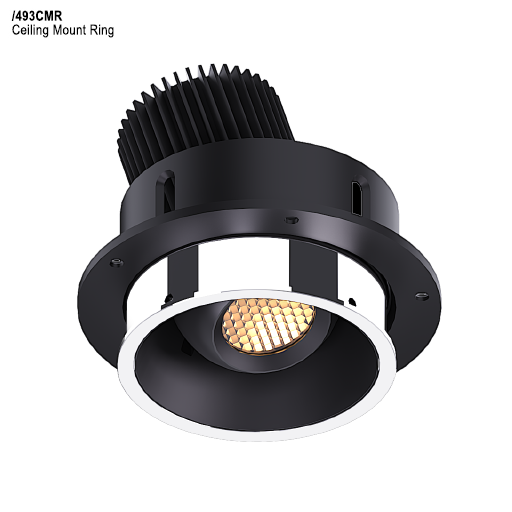

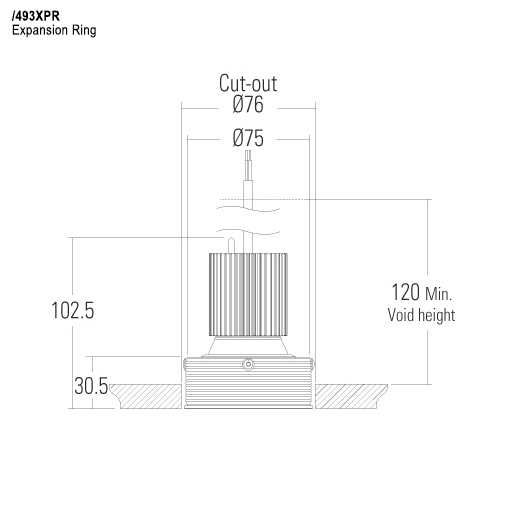

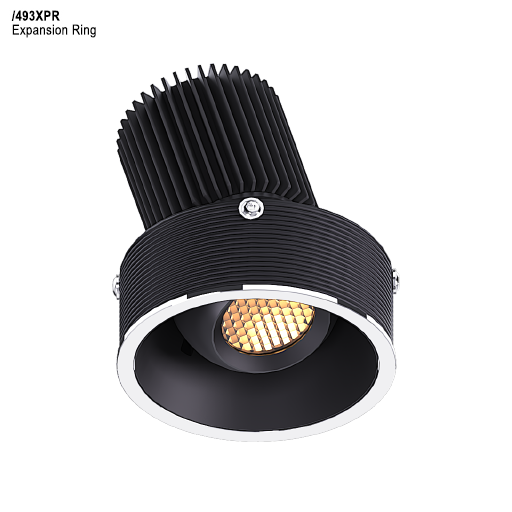

/493XPR-Expansion Ring, /493CMR-Ceiling Mount Ring, /493SMS-Surface Mount Sleeve

LED Information

E3 LED Engine - up to 10W @ 700mA N1 LED Engine - up to 14W @ 700ma

Materials

Black anodised aluminium body, 316 stainless Steel bezel, Glass

IP Rating

IP67

Accessories

/HL-Honey Comb Louvre, /HT1093-Hand Tool

Downloads

LD1093Z
LD1093E3N1-3 Datasheet
LD1093Z
Design Pack
LD1093Z
Photometric LDT
Files
LD1093Z
Install Instructions
