    LED

    LightGraphix have created a large number of fittings to utilise the advantages of the latest Light Emitting Diode technology. We place particular importance on the heat management of our luminaires, and by designing each product around the LED we can use the housing as part of the heat sink. This ensures a practical life of 50,000 hours to 70% output is achieved. LGX are a Luxeon approved manufacturer and a member of the Lighting Association which means all new LED fittings have passed a series of formal tests for build process and heat control.

    All our LED's require a constant current (350mA, 500mA or 700mA) or constant voltage (24V) and because they are diodes polarity is critical. Voltages and current are inherently safe (ESLV) with low energy consumption.

    The light emission is either:

    • focused with a collimating lens to provide precise high efficiency beam control
    • spread using a specially designed reflector
    • diffused to provide indication or decorative effects
    Uplights and Wall Lights

    Featuring the LD41 which is our smallest LED fitting these uplights or wall lights can be used externally and internally for broad range of applications. They are available with a choice of lenses and LED colours and can be specified with a frosted glass for use as an indicator light.

    LD18
    2.4W LED
    17deg tilt
    IP68
    38mm Depth
    LD18
    LD41
    1.7W LED
    IP68
    Very Small
    Stainless Steel 316
    34mm Diameter
    41mm Depth
    LD41

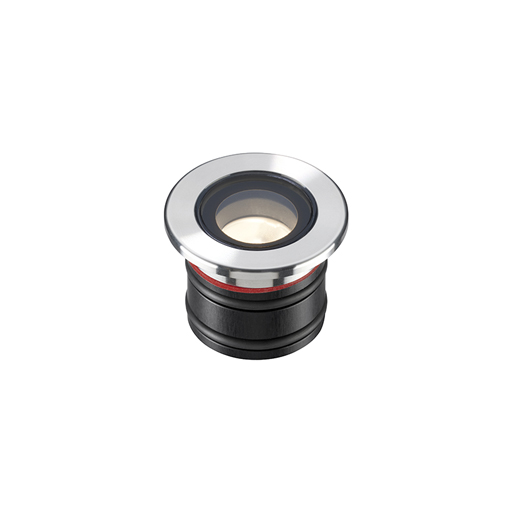

    LD43
    1.7W LED
    IP66
    Minimal depth
    Small bezel dia.
    Matches LD42 wall light
    LD43
    LD43R / LD43AR
    NEW LD43R / LD43AR

    The LD43R and LD43AR miniature recessed uplights with flush glass and walkover bezel are best suited to in-ground int...

    LD43R / LD43AR
    LD43W / LD43A
    1.7W LED
    IP66
    Minimal depth
    Small bezel dia.
    Glare shield
    20deg tilt available
    Matches LD42 wall
    LD43W / LD43A
    LD60
    1.7W LED
    IP68
    Stainless steel 316
    Good indicator light
    LD60
    Recessed Footlights

    Our broad range of recessed LED uplighters include indicator lights and low glare options such as the LD56 with a deep recessed lamp position or the more powerful LD151 and LD153 with built in glare shields. These high quality fittings are manufactured with machined components and high grade materials including 316 stainless steel. All are rated IP67 and above.

    LD150
    Up to 10W LED
    IP54
    High power
    Low glare
    Single optic
    No visible fixings
    LD150
    LD150T
    Up to 10W LED
    6deg tilt
    IP54
    High power
    Low glare
    Single optic
    No visible fixings
    LD150T
    LD151
    Up to 10W LED
    IP67
    High power
    Low glare
    Single optic
    No visible fixings
    LD151
    LD151T
    Up to 10W LED
    6deg tilt
    IP67
    High power
    Low glare
    Single optic
    No visible fixings
    LD151T
    LD153
    Up to 10W LED
    IP67
    High power
    Low glare
    Single optic
    No visible fixings
    LD153
    LD155
    NEW LD155

     The LD155 is a high powered, adjustable uplight with an innovative 360° rotating ball joint containing the ...

    LD155

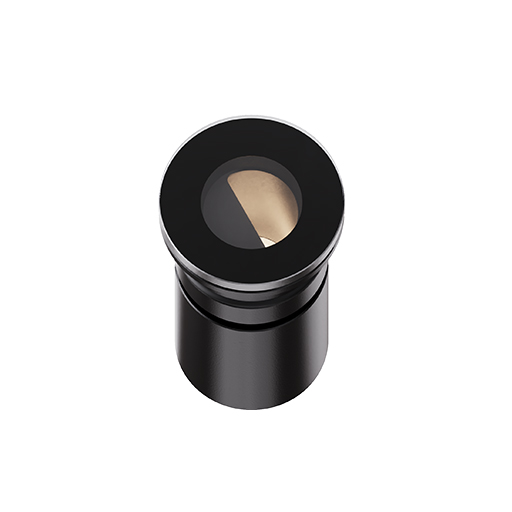

    LD43DR
    2.4W LED
    IP68
    Very low glare
    LD43DR
    LD52
    5.1W LED
    IP67
    Triple LED
    High power
    Very shallow
    LD52
    LD56
    2.4W LED
    IP68
    Low glare
    Very versatile
    High power for size
    Glare shield option
    LD56
    LD56 RGB
    3.6W LED
    IP68
    Tri RGB LED
    Low glare
    Single optic
    LD56 RGB
    LD56T
    2.4W LED
    IP68
    6deg tilt
    Low glare
    Very versatile
    High power for size
    Glare shield option
    LD56T
    Wall and Floor Markers

    Manufactured from 316 Stainless steel these ultra small, robust 1.7W LED fittings utilise a specially designed reflector to wash the surface around them. Rated IP67 for mounting onto interior or exterior pathways, staircases and walls. They can be specified with a range of LED colours and these really do look fantastic!

    LD61
    1.7W LED
    IP67
    360deg illumination
    Hidden fixings
    Indicator light
    LD61
    LD62
    1.7W LED
    IP67
    360deg illumination
    20deg beam
    Hidden fixings
    Indicator light
    LD62
    LD63
    1.7W LED
    IP65
    Shallow Recessed Fitting
    Diffused even glow
    LD63
    LD64
    1.7W LED
    IP67
    120deg illumination
    Hidden fixings
    Floor or path light
    LD64
    LD65
    1.7W LED
    IP67
    2 x 120deg angle
    Hidden fixings
    Floor or path light
    LD65
    Recessed Wall Mounted

    Our broad range of recessed LED wall lights include many innovative low glare options, with most having the lens set back as well as some set at an angle. The new LD42 is one of the smallest, going up to the more powerful LD170. All come with high quality machined bezels and are available in a range of finishes and materials. All are rated IP67 and above and can be used for indoor or outdoor use.

    LD170
    Up to 7W LED
    IP67
    High power
    Low glare
    No visible fixings
    Angled light source
    LD170
    LD175
    Up to 7W LED
    IP67
    High output
    Diffused beam
    Low glare
    LD175

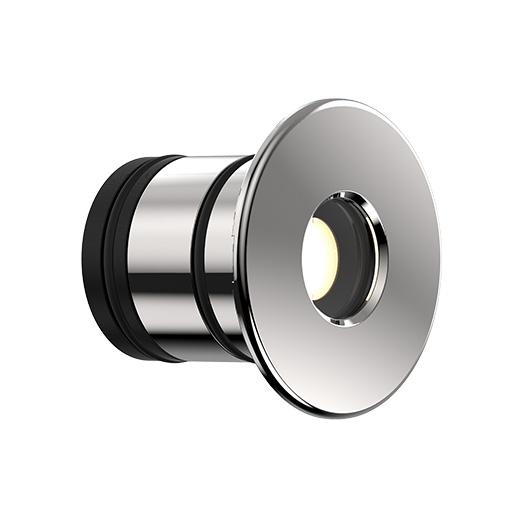

    LD242A
    2.4W LED
    IP68
    Underwater
    Solid stainless steel
    Passivated
    LD242A

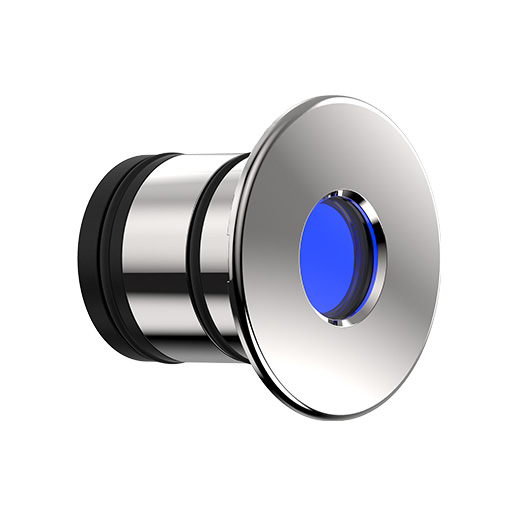

    LD242A RGB

    The LD242A RGB has been designed specifically for permanent submersion applications. It is manufactured from high gra...

    LD242A RGB

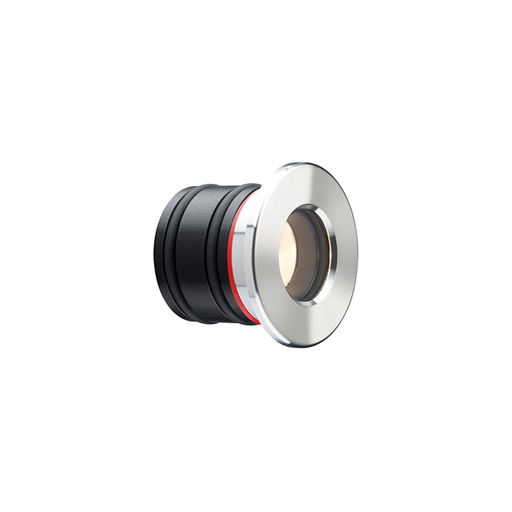

    LD42
    1.7W LED
    IP68
    Minimal depth
    Small bezel dia.
    Recessed LED
    No glass glue line
    LD42
    LD42R / LD42AR
    NEW LD42R / LD42AR

    The LD42R and LD42AR miniature recessed wall lights are ideal for discreet lighting of steps and pathways in interior...

    LD42R / LD42AR
    LD42W / LD42A
    1.7W LED
    IP68
    Minimal depth
    Small bezel dia.
    Glare shield
    20deg tilt available
    Recessed LED
    No glass glue line
    LD42W / LD42A
    LD45
    2.4W LED
    IP67
    Low glare
    No glass glue line
    LD45
    LD46
    2.4W LED
    IP67
    Low glare
    No glass glue line
    LD46
    LD47
    2.4W LED
    IP67
    Low glare
    20deg tilt
    No glass glue line
    LD47
    LD48
    2.4W LED
    IP67
    Low glare
    20deg tilt
    No glass glue line
    LD48
    LD57
    2.4W LED
    IP68
    No optic
    Very low glare
    Broad beam
    LD57
    LD57SQ
    2.4W LED
    IP67
    Low glare
    Very versatile
    LD57SQ
    LD59
    2.4W LED
    IP67
    Cree XPG2 LED
    Diffused beam
    93CRI
    Very low glare
    LD59
    Surface Mounted

    The compact, minimal design of our new surface mounted LED fittings means they will blend into most interior and exterior project styles. Low glare is achieved by a recessed lamp position or cowl accessories. Applications include wall washing, highlighting and garden lighting.

    LD10235
    NEW LD10235
    Up to 10W LED
    IP67
    High power
    Low glare
    Single optic
    LD10235

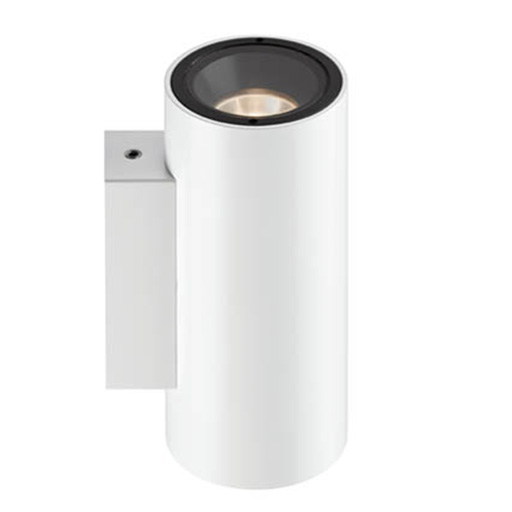

    LD10236
    Up to 2 x 7W LED
    IP67
    Up/down beam
    High power
    Minimal design
    No visible fixings
    Single optic
    LD10236

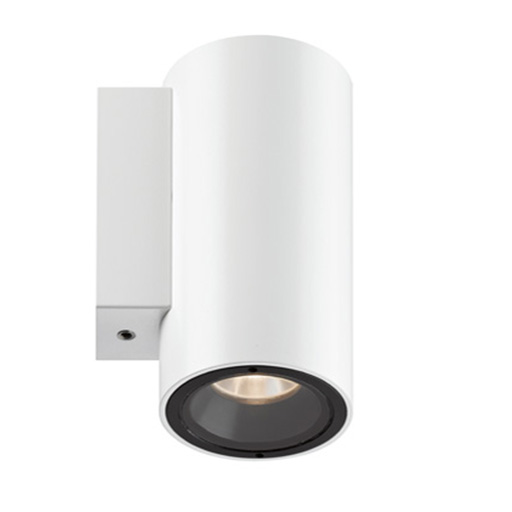

    LD10237
    Up to 10W LED
    IP67
    High power
    Minimal design
    No visible fixings
    Single optic
    LD10237

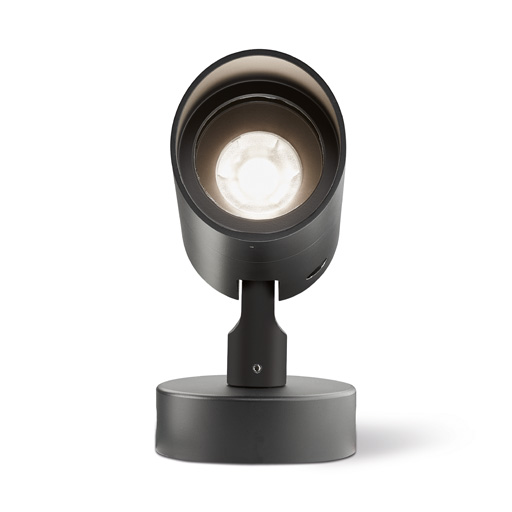

    LD10238
    Up to 14W LED
    IP67
    High power
    Surface mounted
    Lockable tilt
    Glare cowl
    Single optic
    LD10238
    LD51
    2.4W LED
    IP67
    Surface mounted
    Lockable tilt
    Very versatile
    Glare cowl
    Spike accessory
    LD51
    LD81
    2.4W LED
    IP40
    Mini spotlight
    Adjustable
    Very small
    Choice of optics
    Display cases
    Multiple spots
    LD81
    LD81M
    1.2W LED
    IP40
    Mini spotlight
    93 CRI
    Compact design
    Versatile
    Adjustable
    LD81M
    LD82
    2.4W LED
    IP40
    Mini spotlight
    Adjustable
    Very small
    Choice of optics
    Display cases
    Single spot
    LD82

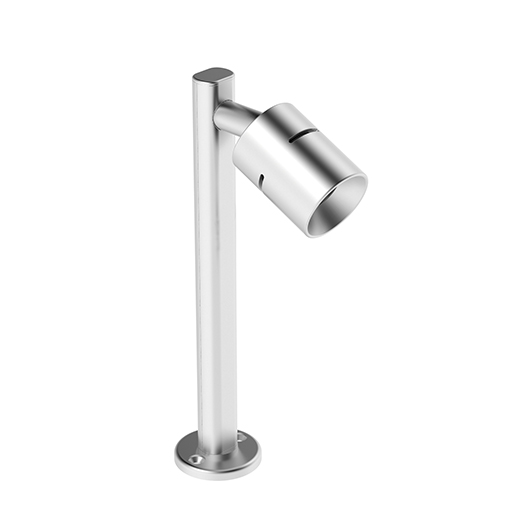

    LD83
    3.6W
    IP40
    Adjustable
    Range of fixing methods
    LD83
    LD95
    2.4W LED
    IP66
    Miniature design with high output LED
    Low Glare
    Reverse polarity protection
    LD95
    LD96
    2 x 2.4W LED
    IP66
    Miniature design
    Low Glare
    Polarity protection
    LD96
    LD97
    2.4W LED
    IP66
    Miniature design
    Low Glare
    Polarity protection
    LD97
    PL1
    LD81 and LD82 accessory for single spot
    PL1
    Spotlight Profile
    Custom made
    Spotlight mounting profile
    Range of fixing methods
    Multiple spots
    Spotlight Profile
    Downlights

    Ranging from the very small LD71 miniature adjustable LED downlight or fixed LD72 version up to our 14W fixed LD1250 and adjustable LD1270 versions we have a downlight for most applications. Glare control and minimal depth are design features across the range. Optics have been chosen for the there efficiencies and quality of beam. The LD1210 is a bit special in that it is rated IP68!

    LD1080
    CREE CXB 1310
    IP40 or IP65
    High power
    Low glare
    Shallow recessed
    Fixed Downlighter
    LD1080
    LD1081
    CREE CXB 1310
    IP40 or IP65
    High power
    Low glare
    Ultra shallow recessed
    Fixed Downlighter
    LD1081
    LD1082
    CREE CXB 1310
    IP40 or IP65
    High power
    Increased glare control
    Shallow recessed
    Fixed Downlighter with black baffle
    LD1082
    LD1083
    CREE CXB 1310
    IP67
    High power
    Marine
    Shallow recessed
    Fixed Downlighter
    LD1083
    LD1090
    CREE CXB 1310
    IP40 or IP65
    High power
    Low glare
    Shallow recessed
    Adjustable Downlighter
    LD1090
    LD1092
    CREE CXB 1310
    IP40 or IP65
    High power
    Increased glare control
    Shallow recessed
    Adjustable Downlighter with black baffle
    LD1092

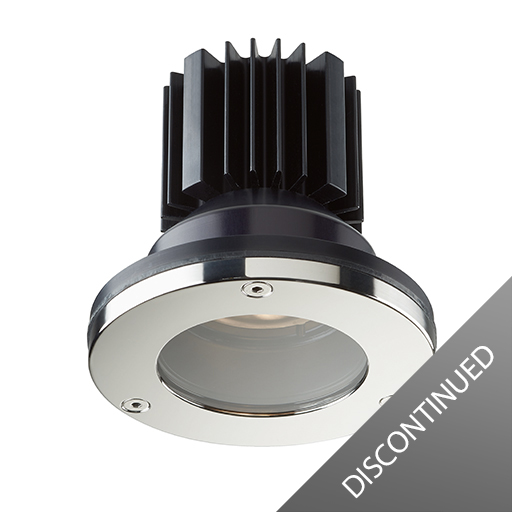

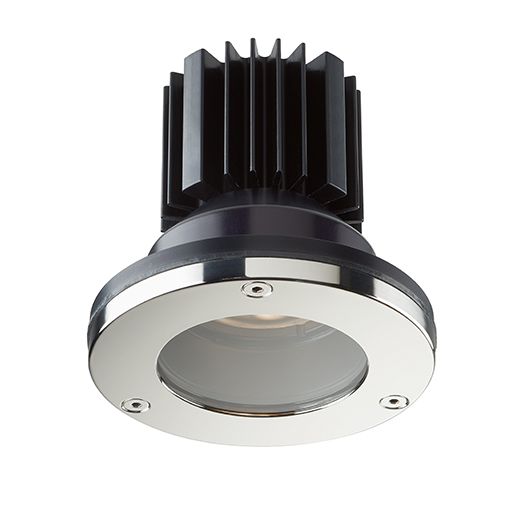

    LD1210
    14W LED
    IP68
    6 LED cluster
    High power
    Low glare
    Minimal depth
    LD1210

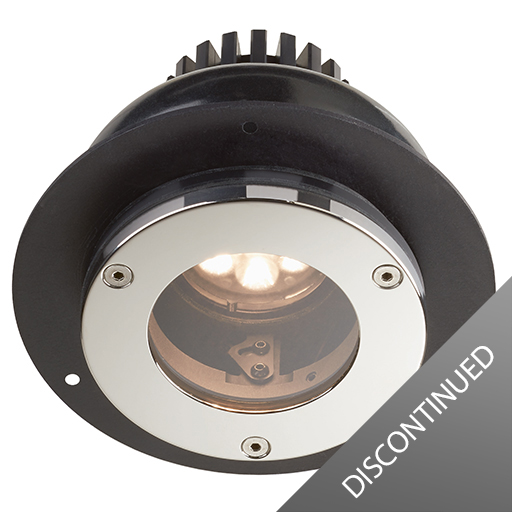

    LD1220

    The LD1220 is a very powerful, low glare, exterior rated, adjustable downlighter. This is a specialist product primar...

    LD1220
    LD242

    2.4W LED
    IP68
    Yacht spreader
    light

    LD242
    LD40
    1.2W LED
    IP67
    Minimal depth
    Small bezel dia.
    Under shelf
    No glass glue line
    LD40
    LD70
    NEW LD70
    2.4W LED
    IP20
    Surface mounted
    Shallow Recessed
    Very versatile
    LD70
    LD70-OP
    NEW LD70-OP
    2.4W LED
    IP20
    Surface mounted
    Shallow Recessed
    Very versatile
    LD70-OP
    LD70D
    NEW LD70D
    2.4W LED
    IP20
    Surface mounted
    Shallow Recessed
    Very versatile
    LD70D

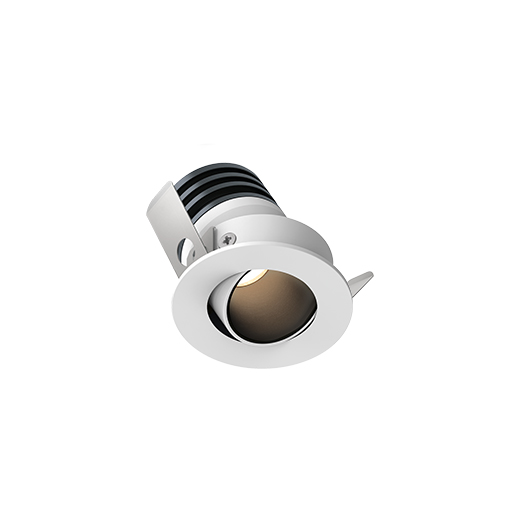

    LD71DR
    NEW LD71DR
    2.4W LED
    IP54
    Tiny spotlight
    25deg adjustable
    Minimal depth
    Low glare
    LD71DR
    LD71M
    NEW LD71M
    2.4W LED
    IP54
    Tiny spotlight
    25deg adjustable
    Minimal depth
    Low glare
    LD71M

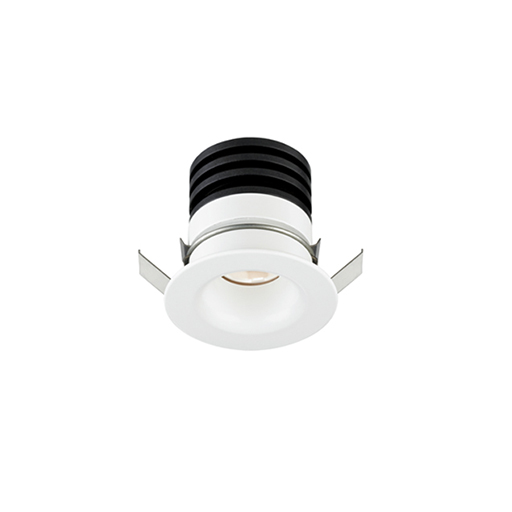

    LD72DR
    NEW LD72DR
    2.4W LED
    IP54
    Tiny spotlight
    Minimal depth
    Low glare
    LD72DR
    LD72M
    NEW LD72M
    2.4W LED
    IP54
    Tiny spotlight
    Minimal depth
    Low glare
    LD72M
    LD73SR
    3.6W
    IP54
    Ultra shallow
    Adjustable
    LD73SR
    LD74SR
    3.6W
    IP54
    High power
    Ultra shallow
    Recessed downlight
    LD74SR
    LD74SR-OP
    3.6W
    IP54
    High power
    Ultra shallow
    Recessed downlight
    LD74SR-OP

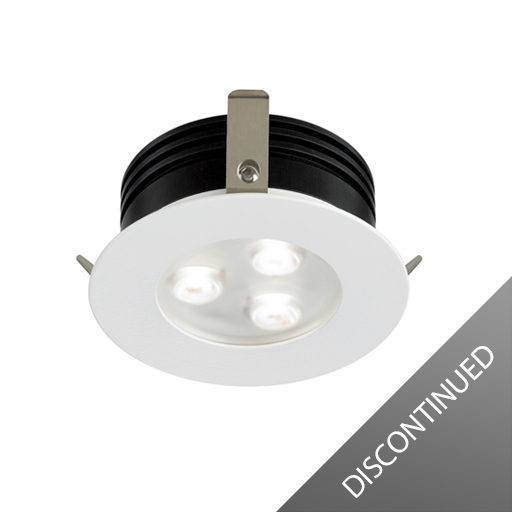

    LD75

    The LD75 is being phased out and is replaced by the smaller and more powerful LD73/74 range, please see links below&n...

    LD75
    Linear

    We have wide range of linear products for most applications. Our LD26, LD30 and LD32 are truly unique to us with the use of a specially designed linear reflectors integrated around the LED's. The LD36 is a powerful optic based system used for wall washing. All our linear LED is made to order to the lengths required on site (LED circuits permitting). For each product there is set out information on the maximium lengths and the cut increments available. Send us a list of lengths or a drawing and what groupings you require and we can work out the sizes. If you have any questions just give us a call and will be happy to talk it through with you.

    LD Flexi
    Choice of outputs
    24V
    IP68
    Flexible
    Custom lengths
    LD Flexi
    LD Line 15
    No spotting of LEDs
    480lm/m
    Choice of LED colours
    IP54
    IP67 option
    LD Line 15
    LD Picture Light
    900lm/m
    24V
    IP40
    Custom lengths
    Slim profile
    Adjustable
    Clear and frosted cover
    LD Picture Light

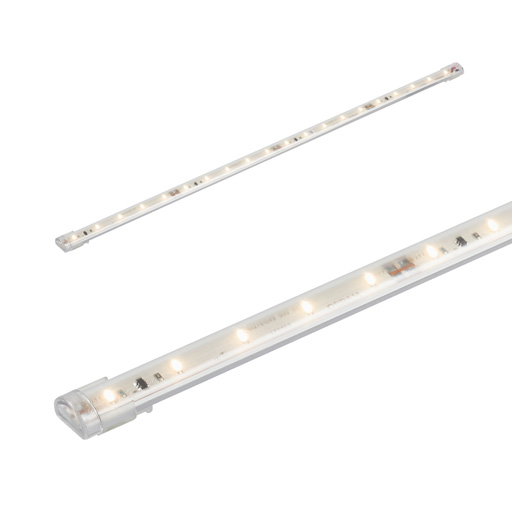

    LD11
    LD11 replaces our LD12LT
    24V
    IP54 standard
    IP67 option
    Custom lengths
    LD11
    LD22
    Choice of outputs
    24V
    IP40 (IP54 option)
    Cove lighting
    Low profile
    Custom lengths
    Linked sections
    LD22

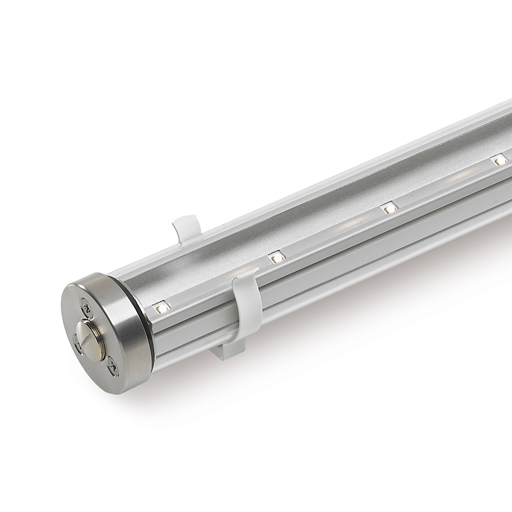

    LD26 / LD26A
    Choice of outputs
    Constant current
    IP40
    IP54 option
    Built-in reflector
    Cove lighting
    Low profile
    Custom lengths
    LD26 / LD26A
    LD26 / LD26A IP66

    LD26 is now offer...

    LD26 / LD26A IP66
    LD30
    Choice of outputs
    Constant current
    IP40
    Built-in reflector
    Display lighting
    Custom lengths
    LD30
    LD30HR
    Choice of outputs
    Constant current
    IP40
    Built-in reflector
    Hanging rail
    Custom lengths
    LD30HR
    LD30HR-24V
    24V Hanging Rail
    Constant voltage
    IP40
    No spotting
    Cost effective
    Custom lengths
    LD30HR-24V

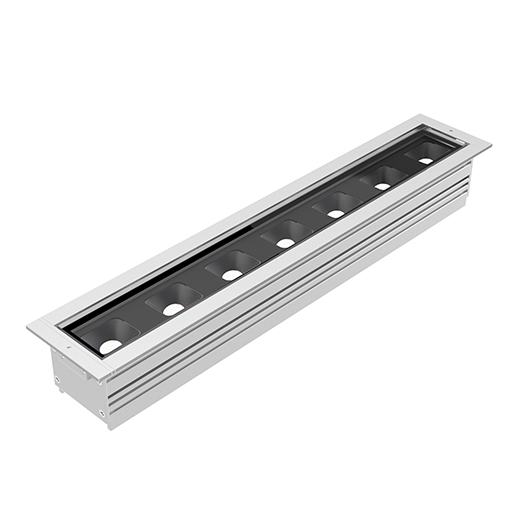

    LD34
    In-ground linear wall grazer
    Choice of outputs
    Low Glare
    IP67
    High power
    Compact design
    Custom lengths
    LD34

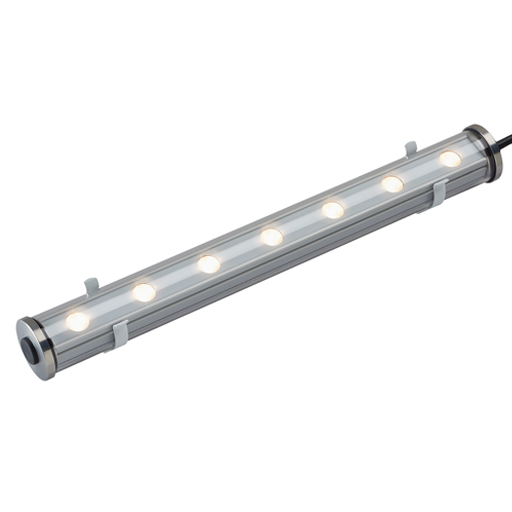

    LD36
    Choice of outputs
    Constant current
    IP40
    IP54 option
    Optics
    Wall washer
    Linked version
    Custom lengths
    LD36
    LD36 IP66

    LD36 is now offer...

    LD36 IP66
    LD36 RGB
    Colour mix
    Constant current
    IP40
    IP54 option
    Optics
    Wall washer
    Custom lengths
    LD36 RGB
    LD38
    Choice of outputs
    Constant Current
    IP67
    High power
    Compact design
    Custom lengths
    Linked sections
    LD38
    Accessories

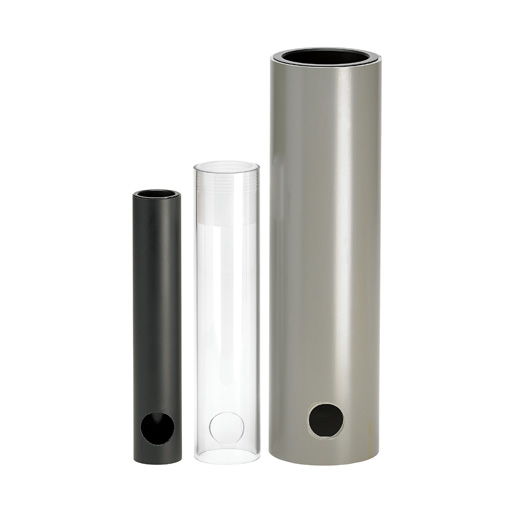

    Ground Tube
    In-ground Tubes:
    LD41
    LD56
    LD151
    Ground Tube
    IP Connection Kit
    IP Connection Kit
    IP68
    External use
    IP Connection Kit
    Drivers

    LEDs are different to normal low voltage light fittings in that they need to be connected to specific LED drivers. Depending on the product these will either be constant current (350, 500 or 700mA) or constant voltage (24V). We have a wide range of power outputs as well as 0-10V, DMX and Dali dimmable options. Driver information is displayed as a download on the products that apply.

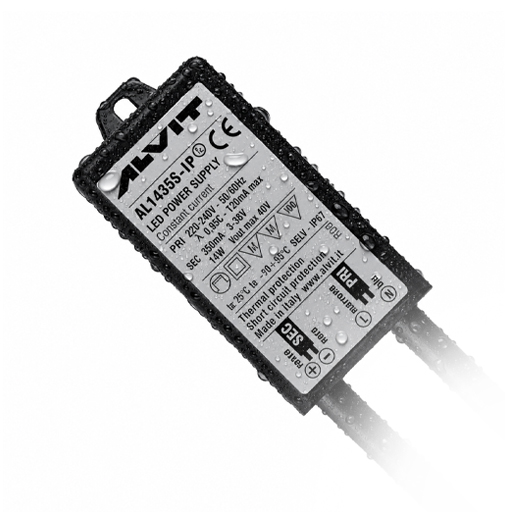

    Constant Current Drivers

    LEDs use specific drivers to run them, they are different from normal low voltage fittings in that they must be wired...

    Constant Current Drivers
    Constant Voltage Drivers

    LEDs using these drivers require a 24V DC constant voltage input with a parallel wiring method. Max 10m.

    Exam...

    Constant Voltage Drivers

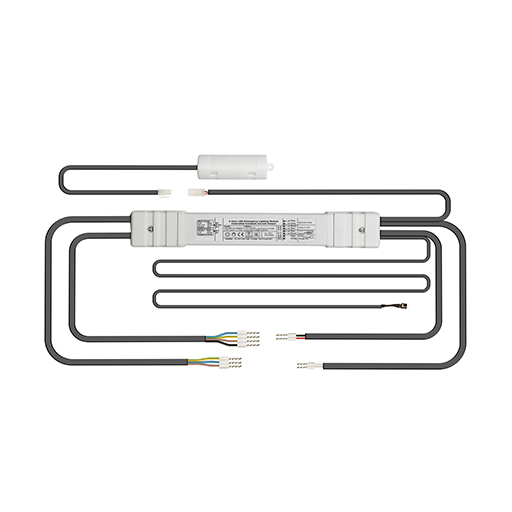

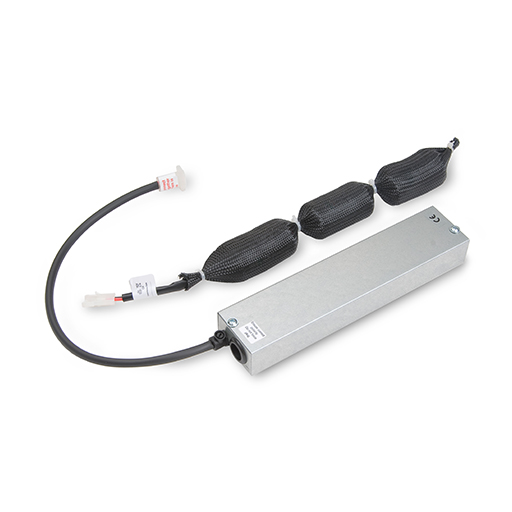

    Emergency Pack

    3Hr emergency lighting conversion kits designed to suit a wide variety of LED types and circuits. They are designed t...

    Emergency Pack
    Technical

    Downlighter Range
    Range of Yacht Downlighters
    Downlighter Range


    Miscellaneous

    These are the last remaining incandescent products we offer! 10148 and 0022 continue to be popular, and the downlighter range of 1006, 1009, 1022 and 1025 can be used with Soraa LED MR16 lamps. Lighttube will now be discontinued. The exception being the LED uplights of LD190 and LD195 which are slowly being phased out. Please get in touch if you can't find what you need and we can try and find an alternative.

    10148

    Useful and decorative as a shower light, but it works very well as a dressing room style mirror light. All the materi...

    10148
    FL197 / LD197

    Available with a 12V 20W G4 Halogen capsule lamp (FL197) or a 5W LED (LD197). It is rated IP67 for downlighting side ...

    FL197 / LD197
    LD190
    5W LED
    IP67
    Cree MKR LED
    High power
    Opal diffuser
    Indicator light
    LD190
    LD195
    Discontinued LD195
    5W LED
    IP67
    Cree MKR LED
    High power
    Opal diffuser
    Indicator light
    LD195
    LD71
    Discontinued LD71
    2.4W LED
    IP54
    Tiny spotlight
    25deg adjustable
    Minimal depth
    Low glare
    LD71
    LD72
    Discontinued LD72
    2.4W LED
    IP54
    Tiny downlight
    Fixed
    Minimal depth
    Low glare
    LD72

    Copyright © LightGraphix 2021 | Website by Apple Pear
