LD155

Description

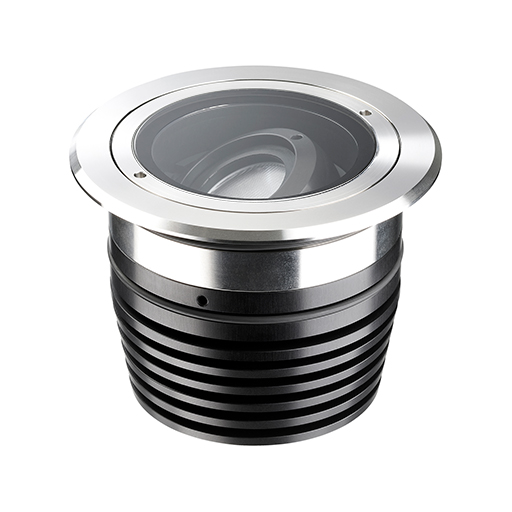

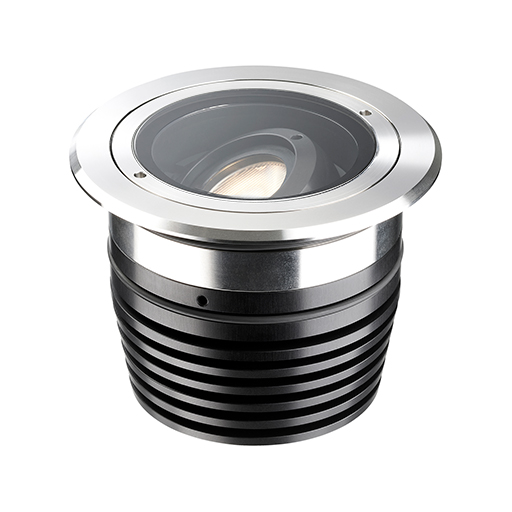

 The LD155 is a high powered, adjustable uplight with an innovative 360° rotating ball joint containing the LED, optics and accessories, which can be tilted at set increments up to 25°. On-site focusing is achieved quickly with a detachable inner bezel, eliminating the need for the product to be removed from the mounting surface. This product can be specified with a wide range of options allowing it to suit many project requirements including multiple bezel finishes to choose from. The bezel is minimal with toughened, black trim glass and an optional honeycomb louvre can be specified to further reduce glare. LD155 offers a choice of powerful E2, N1 and F1 LED engines with outputs up to 900lm, colour temperatures between 2200K-5000K and excellent CRIs of 90+ (when choosing N1/F1). This is a unique product that was designed specifically to provide lighting designers with a powerful uplight solution that ensures excellent thermal and light output performance and the ability to make easy adjustments to the beam position on-site.

Key Features

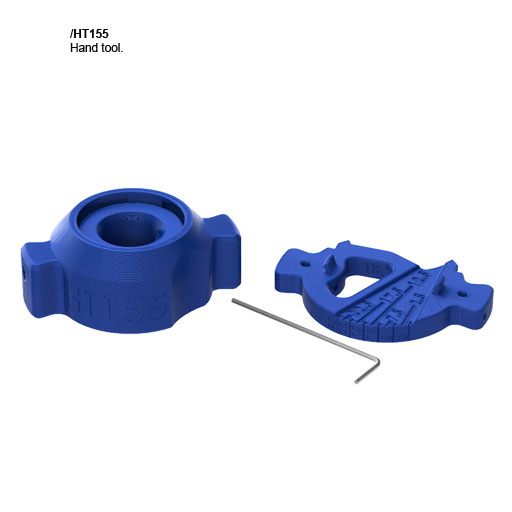

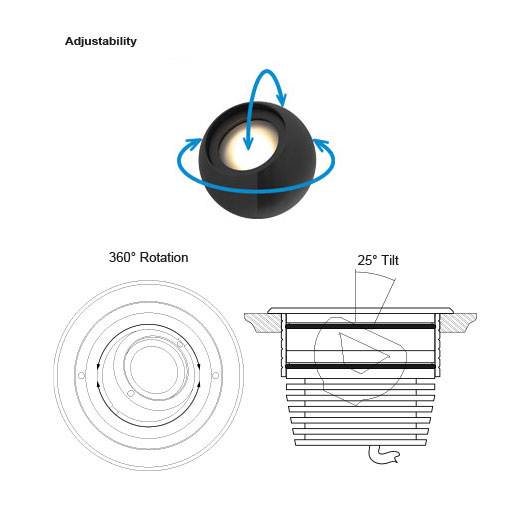

  • Removable inner bezel for quick on-site focusing with 3D printed tool that allows fine adjustment of the tilt angle at set increments up to 25°
  • Innovative ball joint design with multi-directional 360° rotation

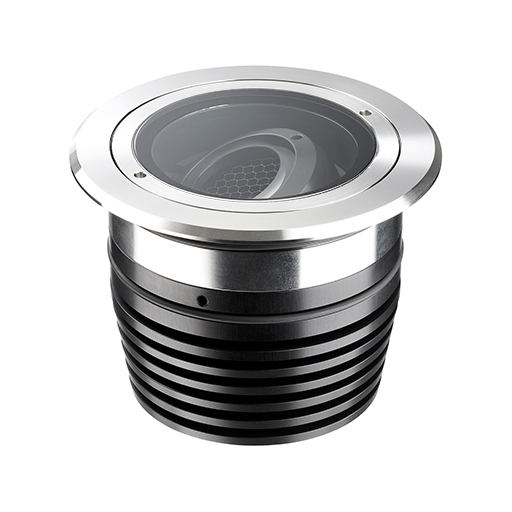

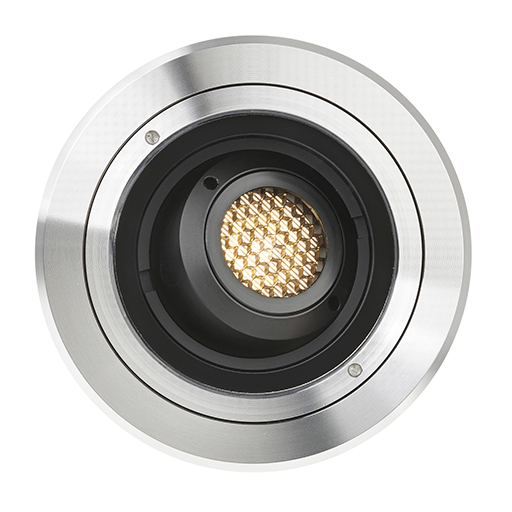

  • Interchangeable optics and accessories including a honeycomb louvre
  • E2 LED engine, producing up to 614 lumens at 700mA in 3000K with built-in reverse polarity protection
  • N1 LED engine options, producing up to 853 lumens at 700mA in 3000K
  • Compact design with excellent thermal management and light output performance in temperatures up to 45° (500mA)

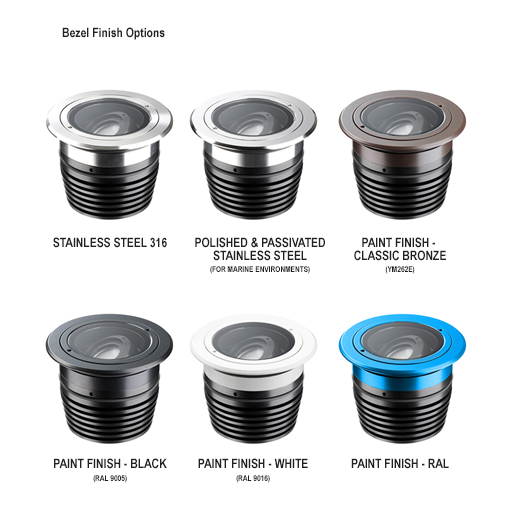

  • Bezel available in 316 Stainless Steel, Polished and paint finish with anodised aluminium matt black body
  • Single light source and optic produces a very consistent beam, no multiple shadows
  • Toughened glass with black ceramic trim
  • Fitting rated IK08
  • Switched, 0-10V, Casambi, DMX, DALI, or Mains dimmable drivers available



Applications

Recessed Uplighting, Wall Wash

Fixing

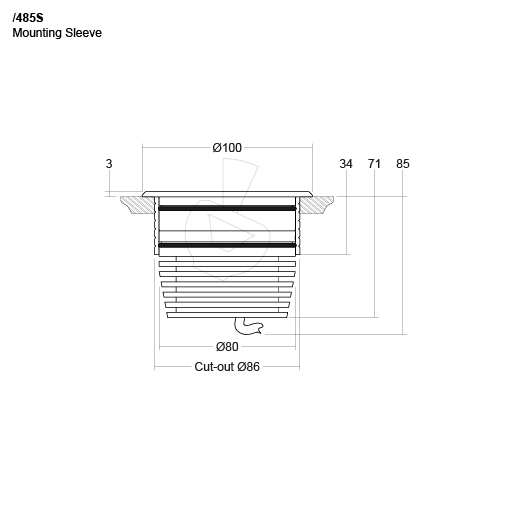

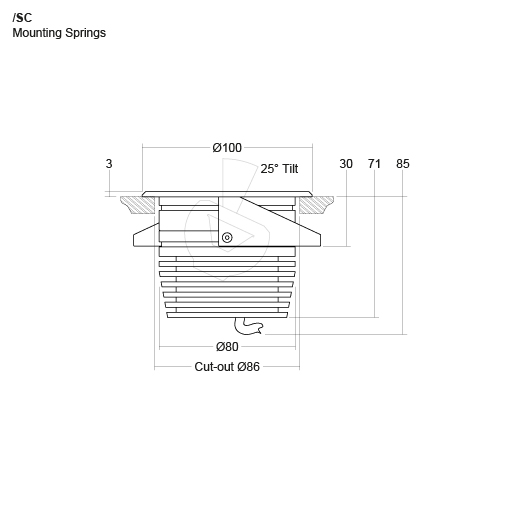

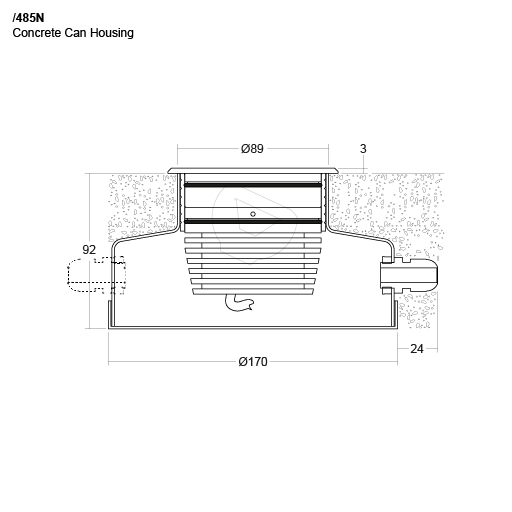

Mounting Spring Clips, Fixing Sleeve, Concrete Can Housing

Lamp Information

E2 light engine - up to 10w @700mA, N1 light engine - up to 14W @700mA

F1 LED Engine - Up to 7W @ 700mA (White)

Materials

Bezel: machined 316 Stainless Steel, Polished Stainless Steel, RAL paint finish White, Black, Bronze

Sleeve: Black Acetal

Body: black anodised aluminium body

IP Rating

IP67

Accessories

Honeycomb louvre, Hand adjustment tool
