LD38 RGBW

Description

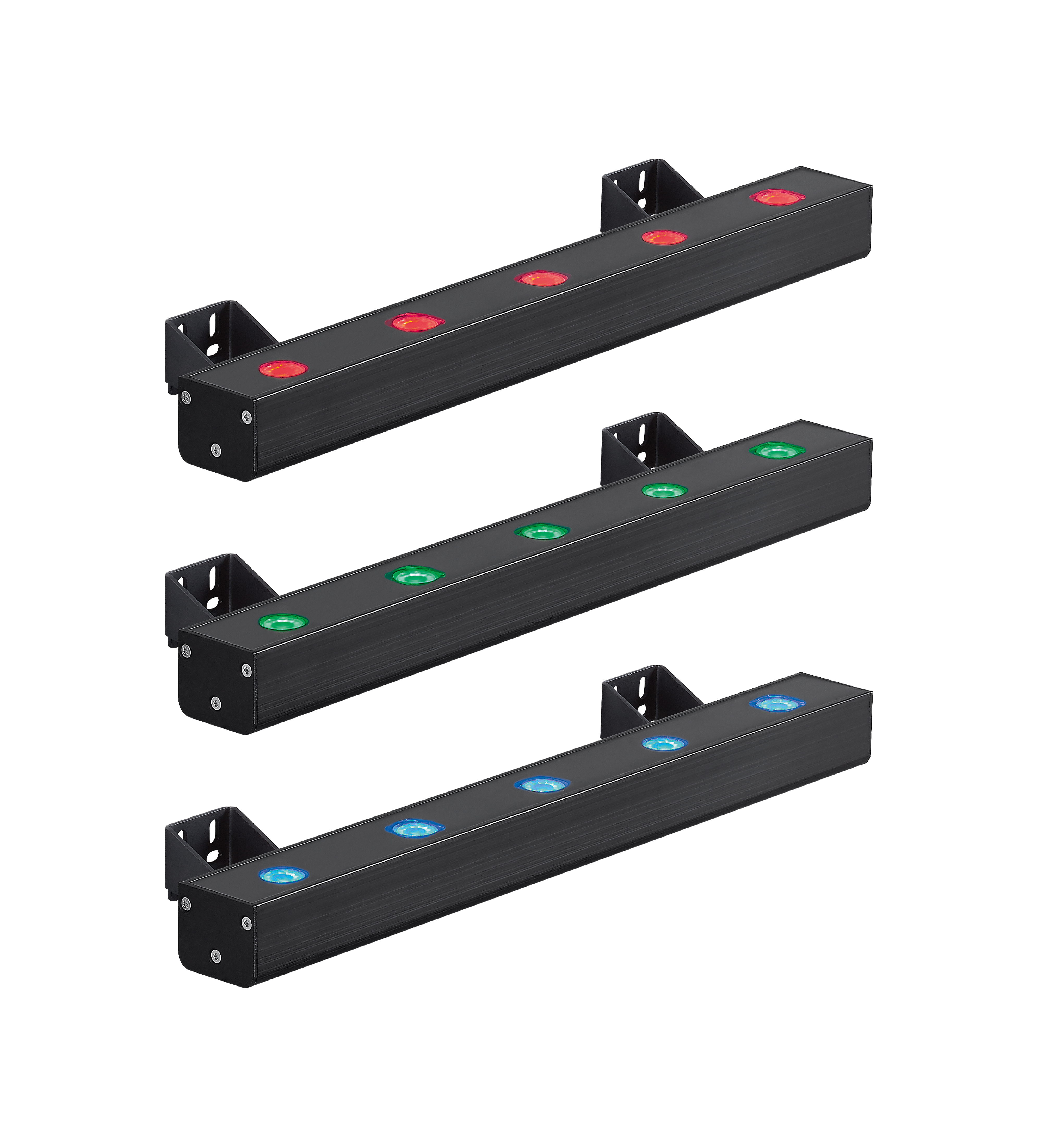

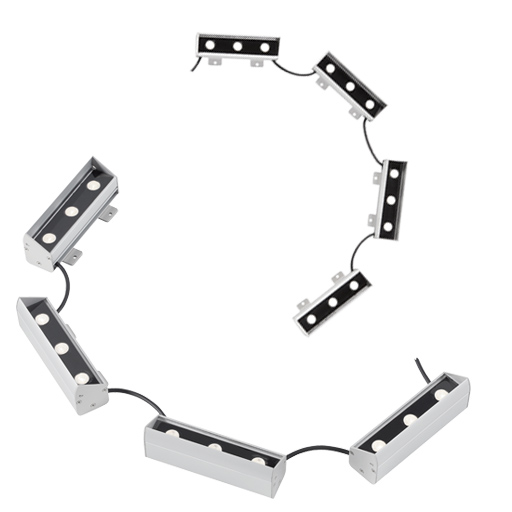

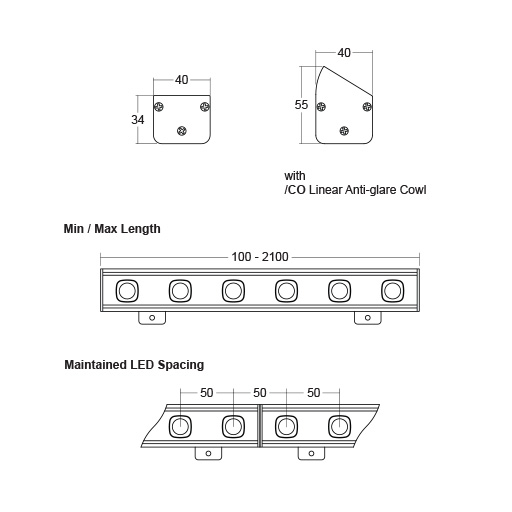

LD38 RGBW is an exterior rated, high power surface grazer that offers superb continuous wall washing and colour mix capabilities. The 4 die RGBW LED is placed under a single 60deg colour mix optic, which allows mixing at source with no coloured shadows. It offers great flexibility to the designer with a range of options that suit most design details and applications; available in custom lengths up to 975mm; RGB and RGBW colour mix options; various mounting options, finishes and accessories. These coupled with the latest in LED technology make LD38 the perfect choice for illuminating an entire external project.

Applications

Colour Change, External, Linear, Surface Mounted, Wall Wash, Pathway

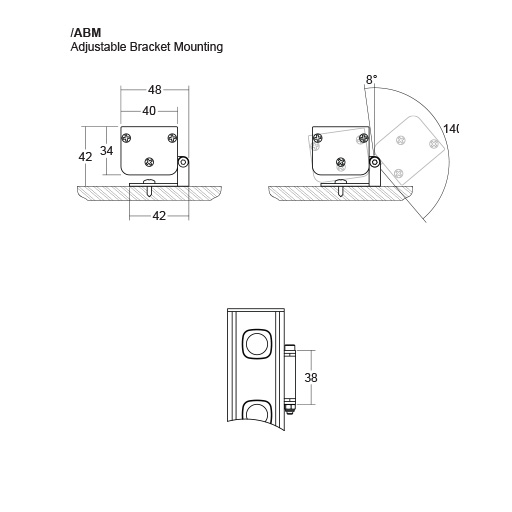

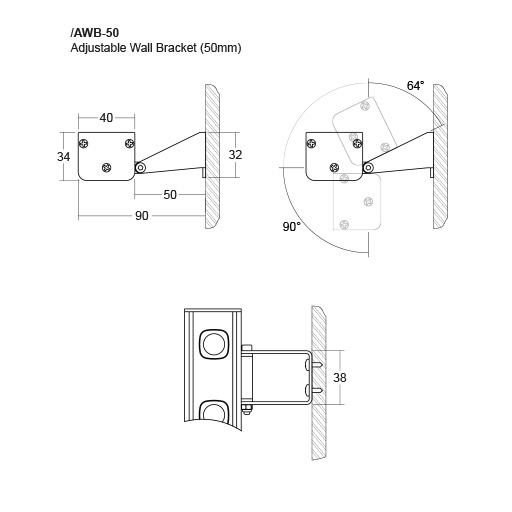

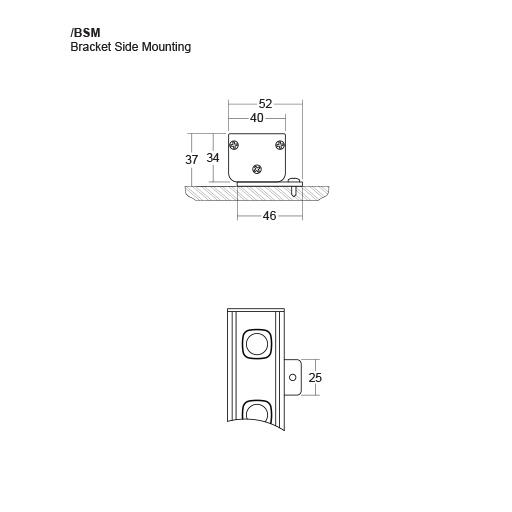

Fixing

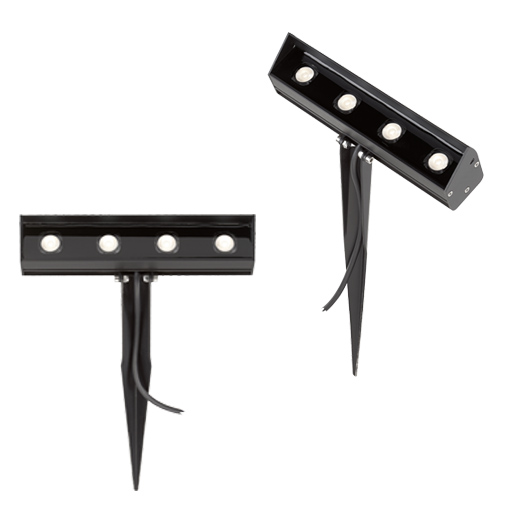

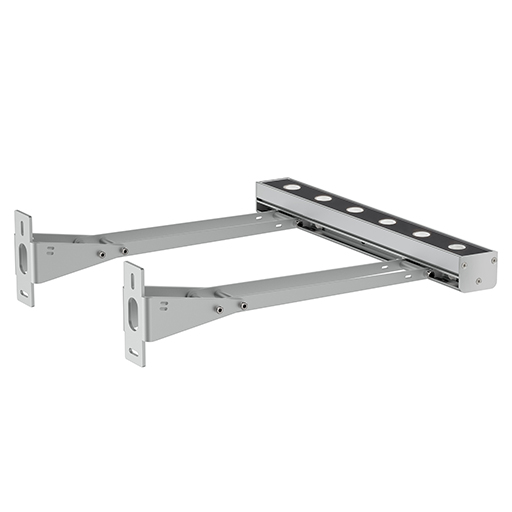

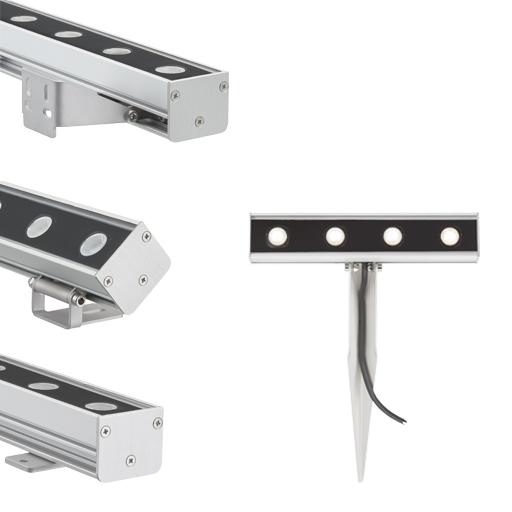

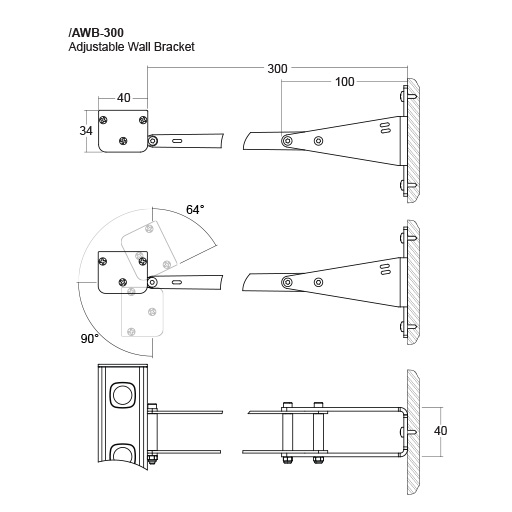

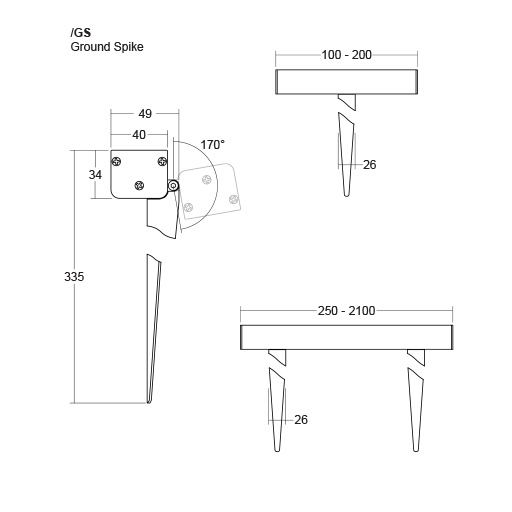

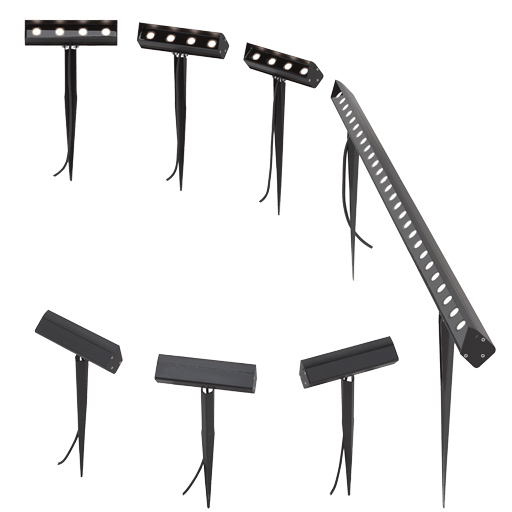

Wide ranges of fixing options are available making it suitable for all types of applications, including an innovative ground spike

LED Information

Cree XML: 4.8W @ 350mA per RGB LED, 6.8W @ 500mA per RGB LED

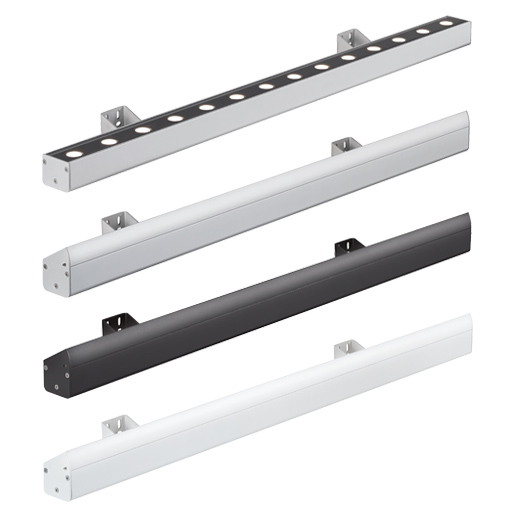

Materials

Anodised aluminium

IP Rating

IP67

Accessories

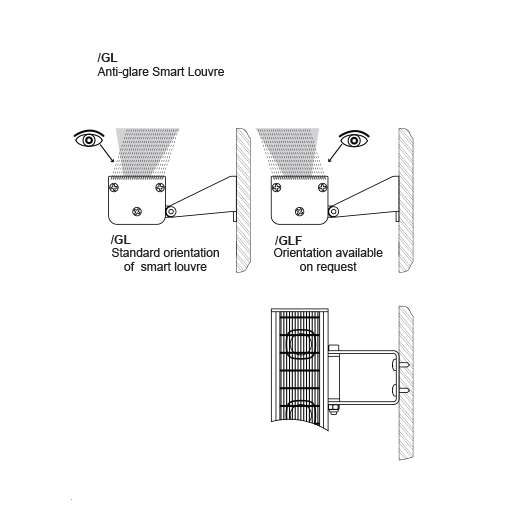

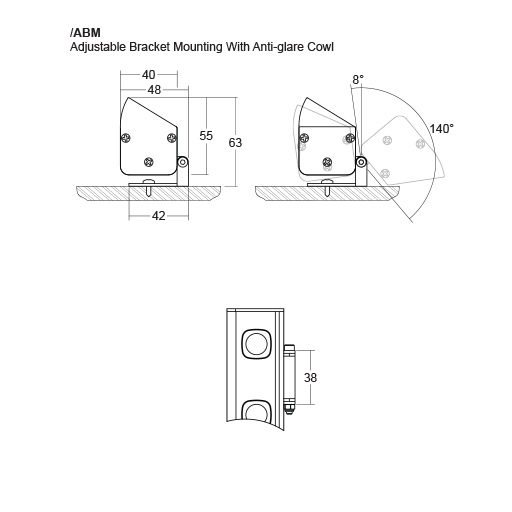

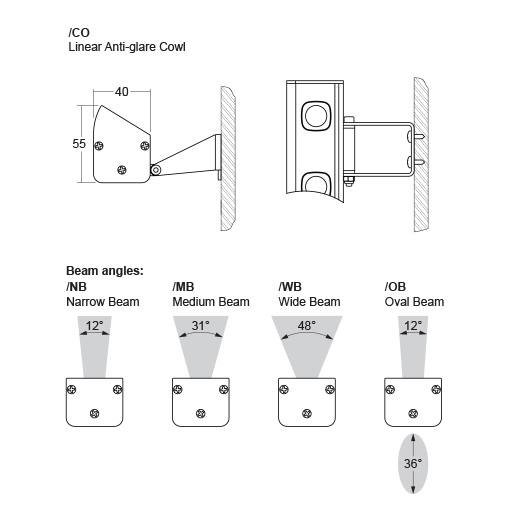

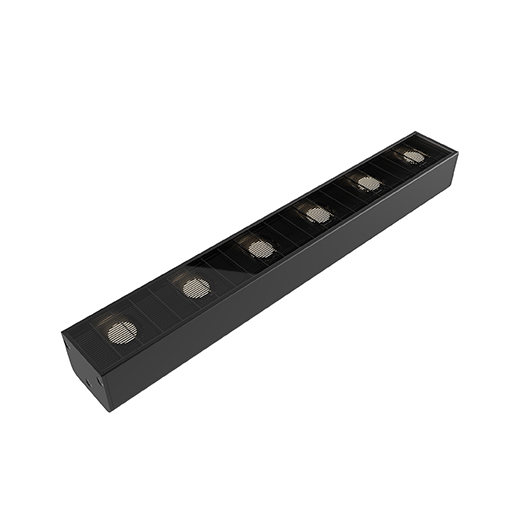

Linear glare cowl, Smart Louvre

Downloads

LD38 Datasheet

Design Pack

Drivers
