LD42

Description

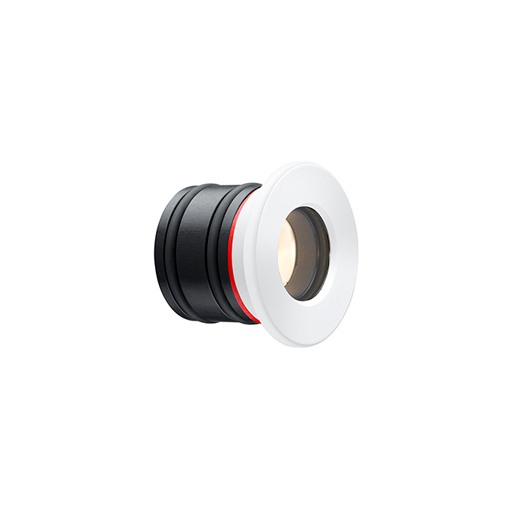

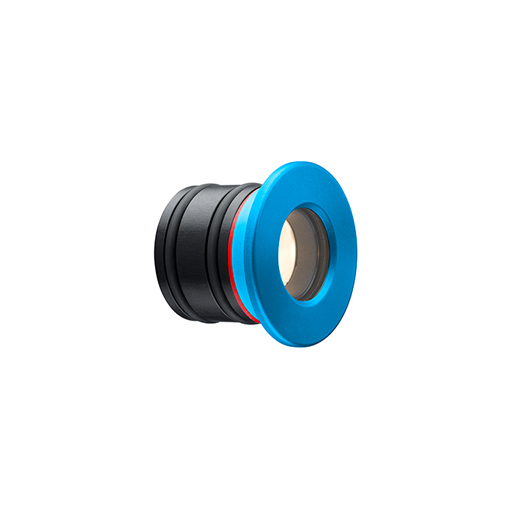

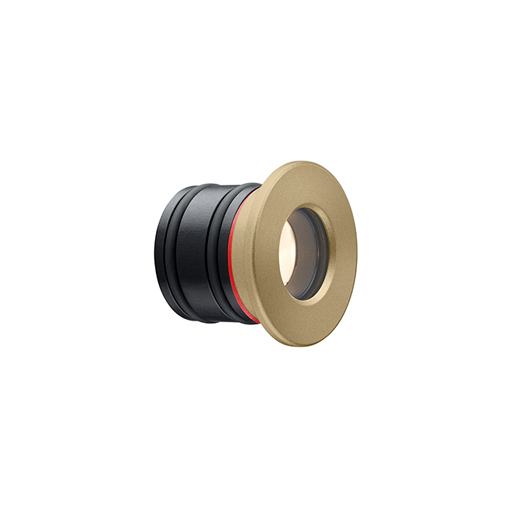

LD42 is a powerful, miniature recessed LED wall light. Rated IP68, this high quality fitting can be used for interior or exterior applications including yachts. Designed for applications where low glare is important, the lens assembly is set back and interior finish is black anodised. Behind the machined bezel the glass is held in place by a gasket so no glue line is seen. Photometric data is available in the design pack.

Applications

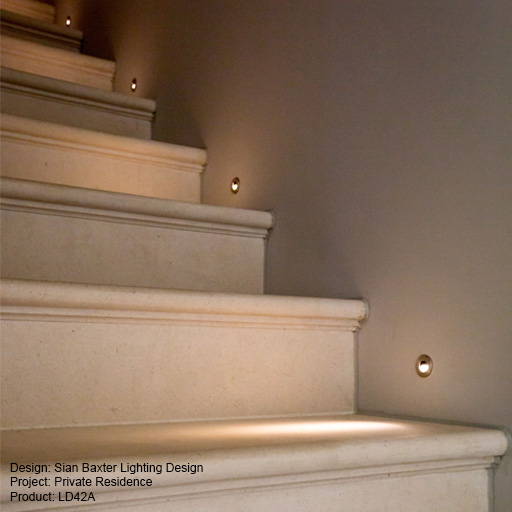

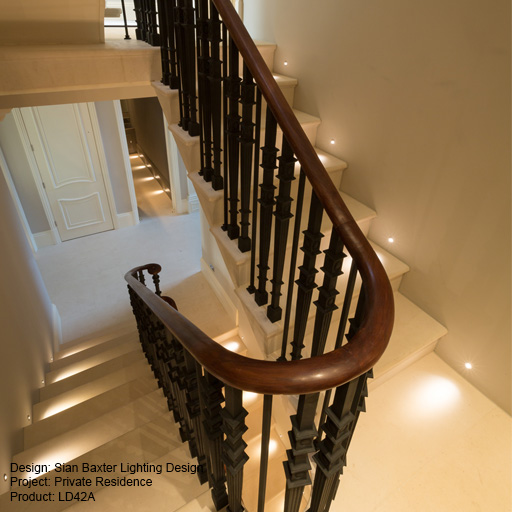

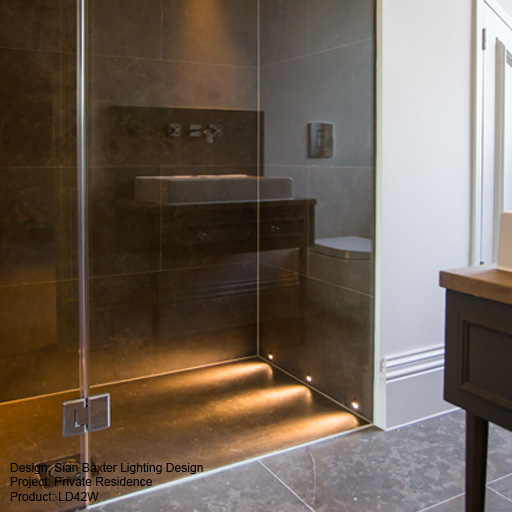

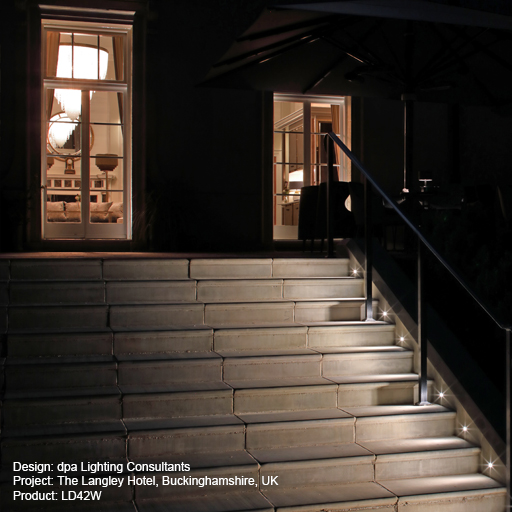

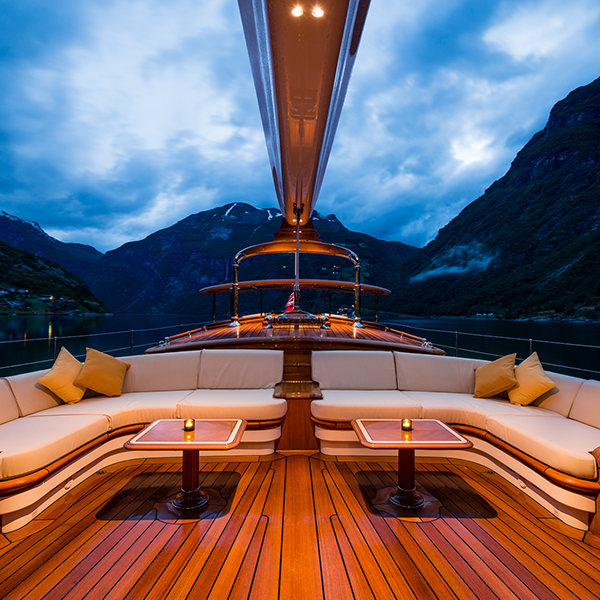

Bathroom and Mirror, External, Floor Wash, Steps, Yacht Lighting, Pathway, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

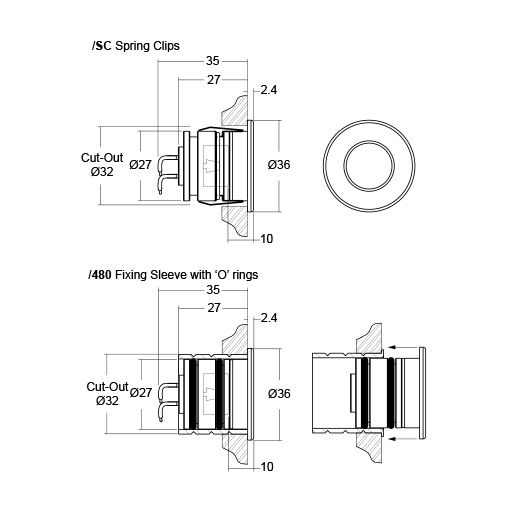

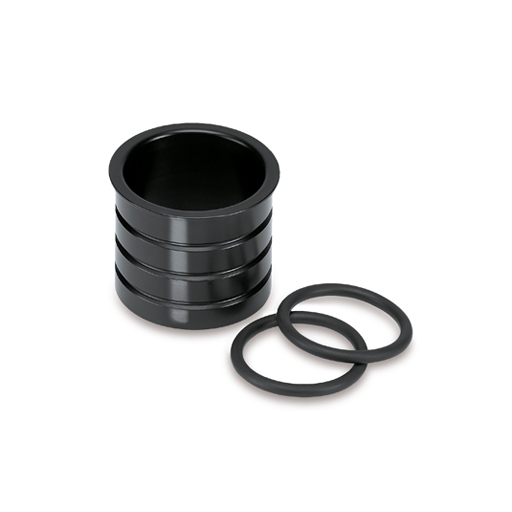

Spring clips /SC, /480 Fixing sleeve and O-rings (recommended)

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD42-C1-350),1.7W @ 500mA (LD42-C1-500)

Materials

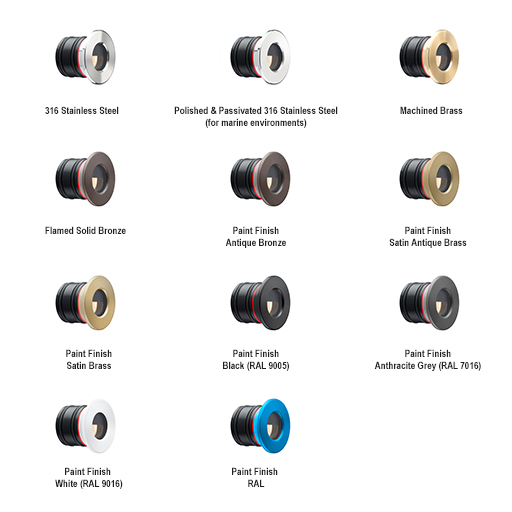

316 Stainless Steel bezel, hard anodised aluminium body, 3.3mm borosilicate glass

IP Rating

IP68 - Not for permanent submersion (LD242A)

Accessories

Tilt lens, Glare shield

Downloads

LD42
LD42C1 Datasheet
LD42
Design Pack
LD42
Photometric LDT
Files
LD42
Install Instructions
LD42
Drivers

Similar Products

LD43

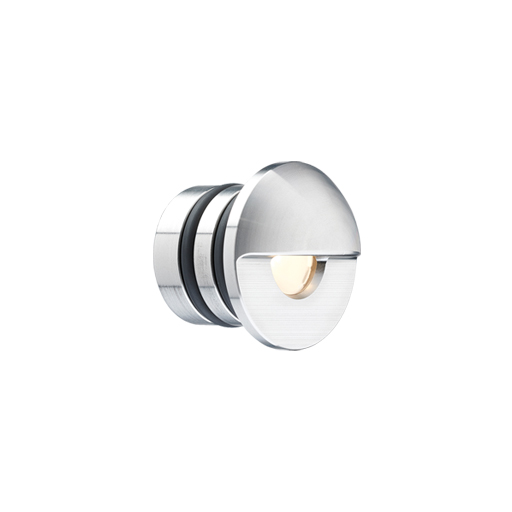

LD42D
