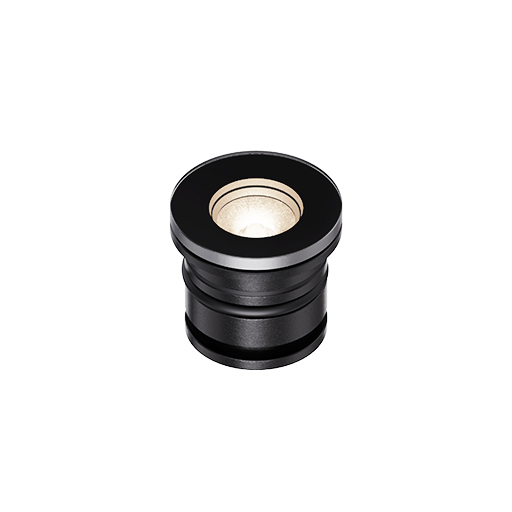

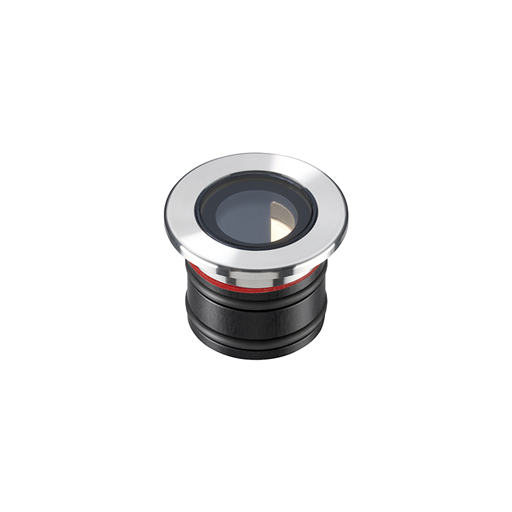

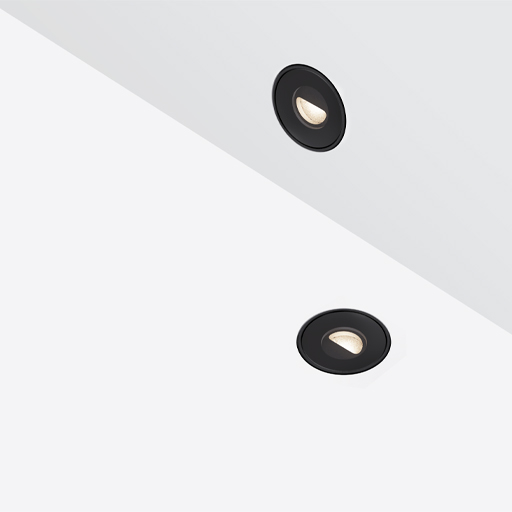

The new Trimless family is an exciting new addition to the LightGraphix product portfolio, offering lighting designers a modern aesthetic for their projects. They have been made possible by the modularisation of some of our existing fittings. The LD43G is a dual-purpose, recessed, miniature LED uplight and wall light. Featuring a high-quality, seamless glass bezel, the LD43G blends perfectly into its surroundings and can be used internally or externally. As a miniature fitting, it has very minimal body depth and bezel diameter of 36mm. The LD43G produces an excellent throw of light when more output is required despite its size. It can be configured in a wide variety of beam options and angles.
Recessed Uplighting, Steps, Wall Wash, Yacht Lighting, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range, Trimless

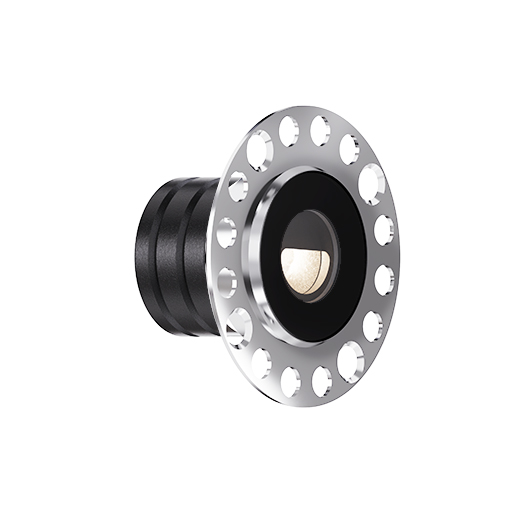

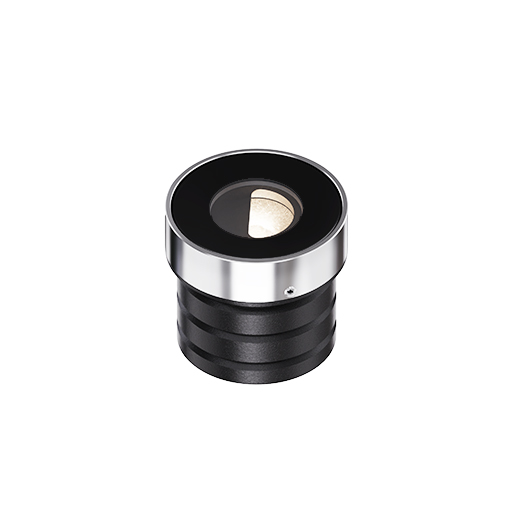

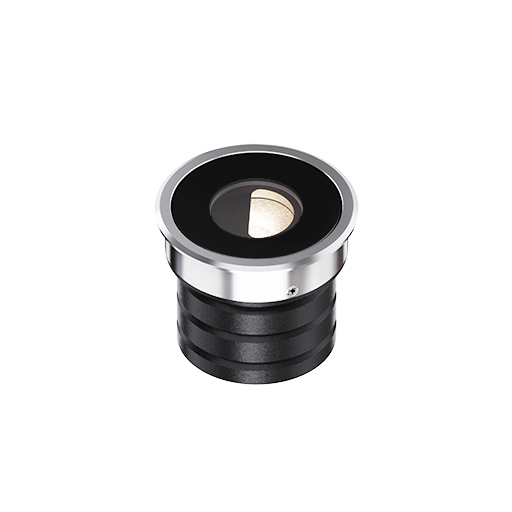

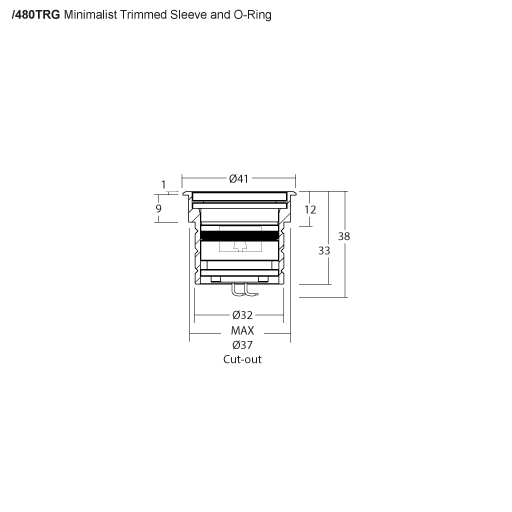

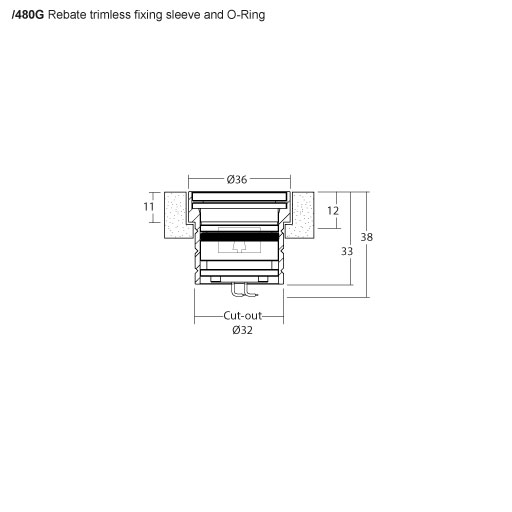

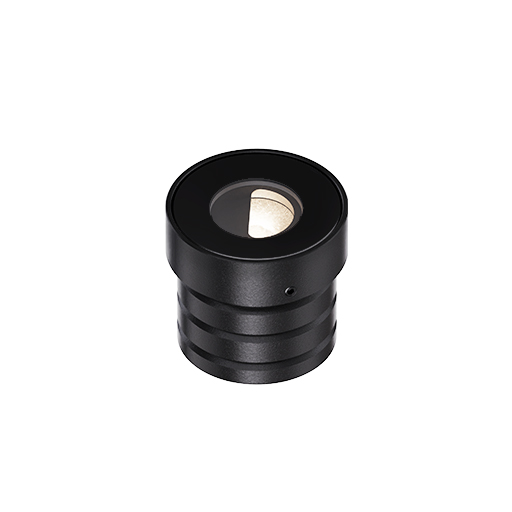

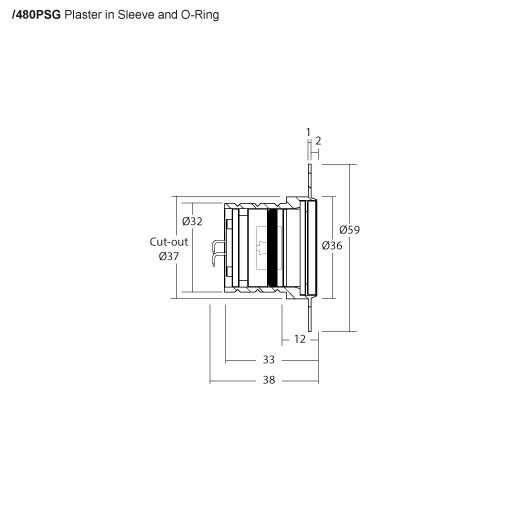

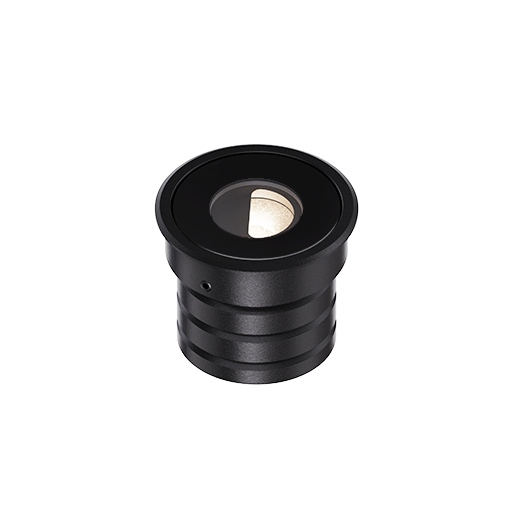

Rebate trimless fixing sleeve and O-Ring (480G), Minimalist Trimmed Sleeve and O-Ring (/480TRG), Plaster in Sleeve and O-Ring (/480PSG)
NICHIA C1 LED Engine: 1.2W @ 350mA (LD43-C1-350),1.7W @ 500mA (LD43-C1-500)
Anodised aluminium body, glass bezel

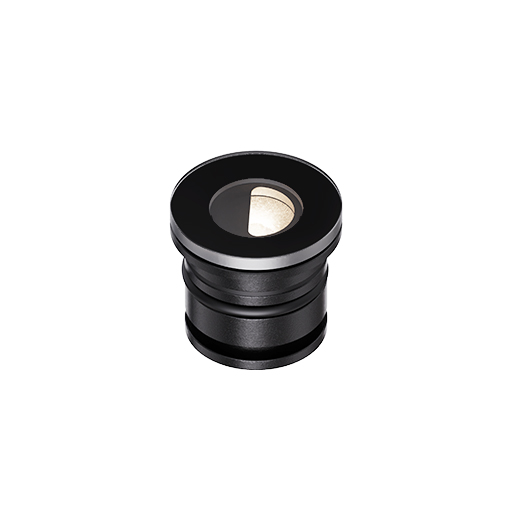

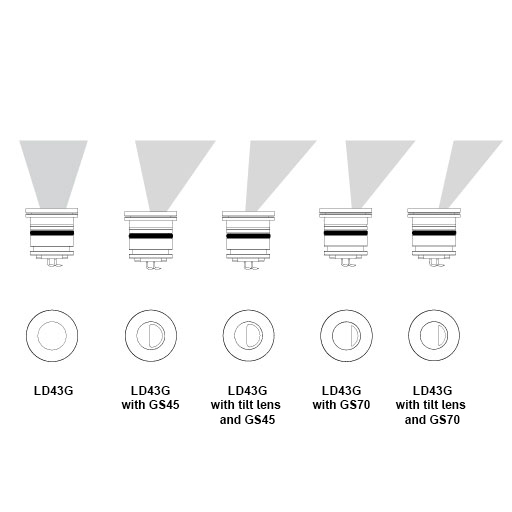

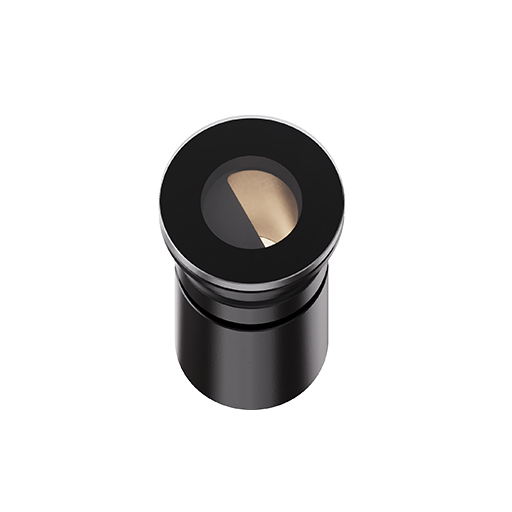

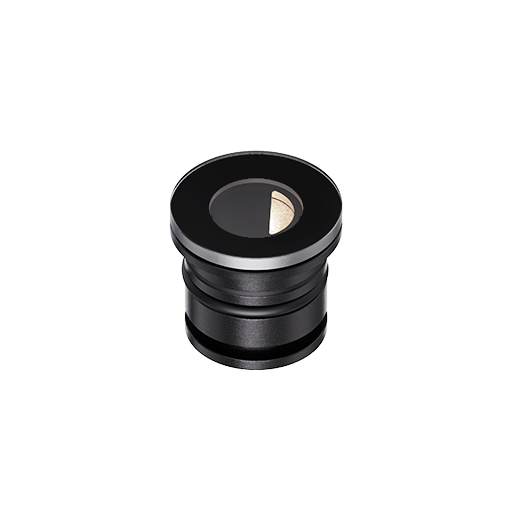

Half moon glare shield, 70% glare shield, tilt lens
