LD57

Description

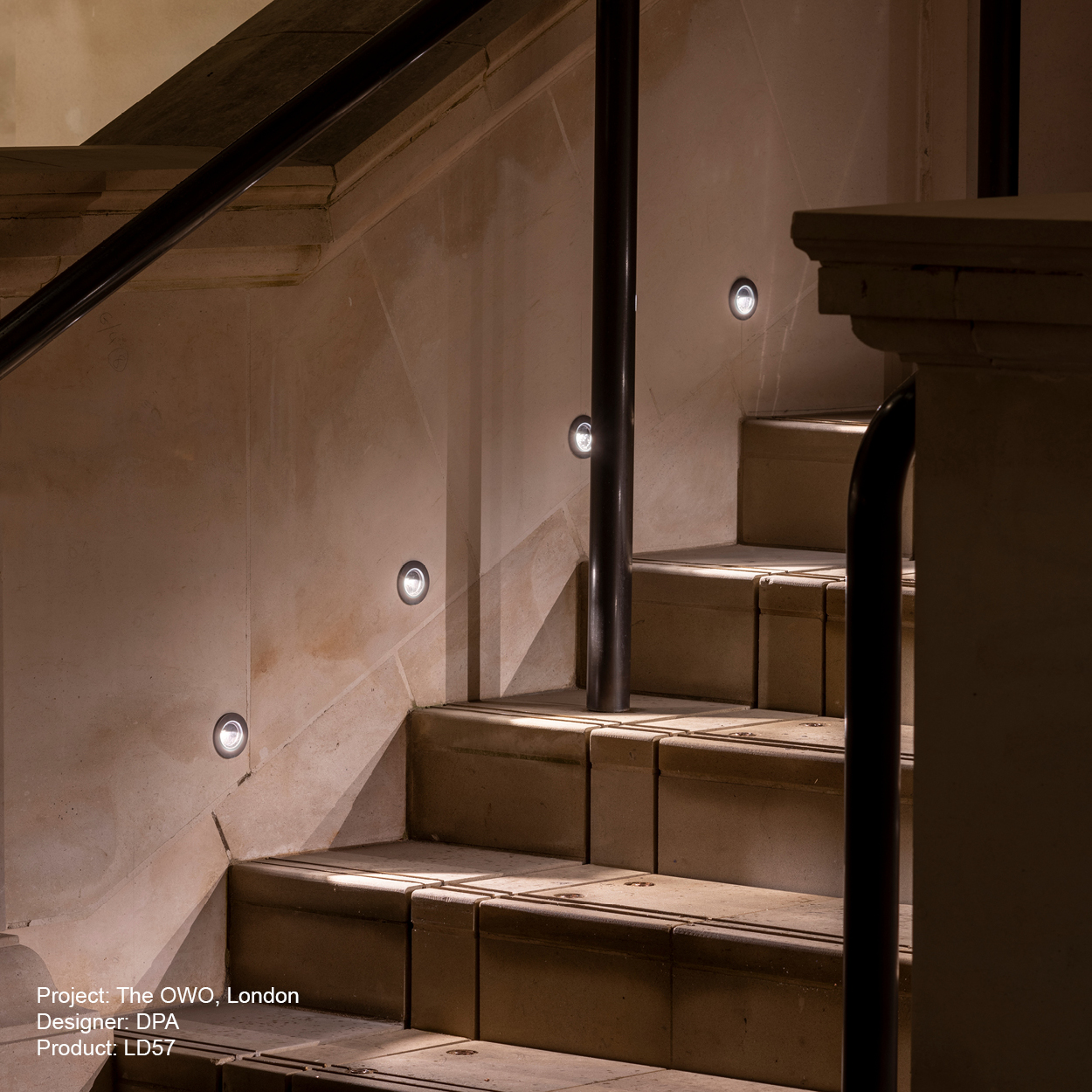

The LD57 LED is hidden from view with a glare shield and whilst the lack of an optic means output is lower, it is adequate for gentle deck and step lighting without any glare from the light source. It has no visible fixings, and is available with a choice of colour temperatures, working best when run at 700mA 2.4W, LD57-C1-700.

Applications

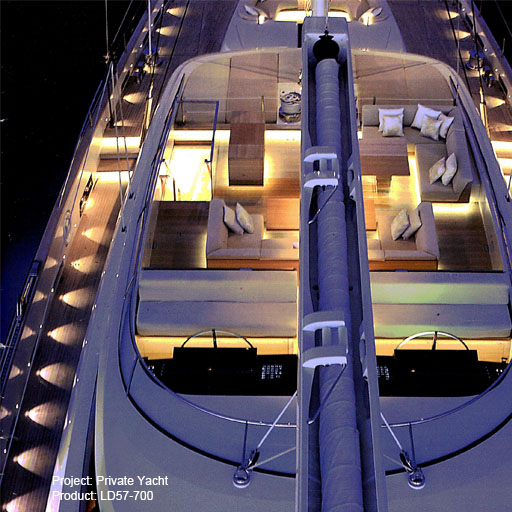

Bathroom and Mirror, External, Floor Wash, Steps, Yacht Lighting, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

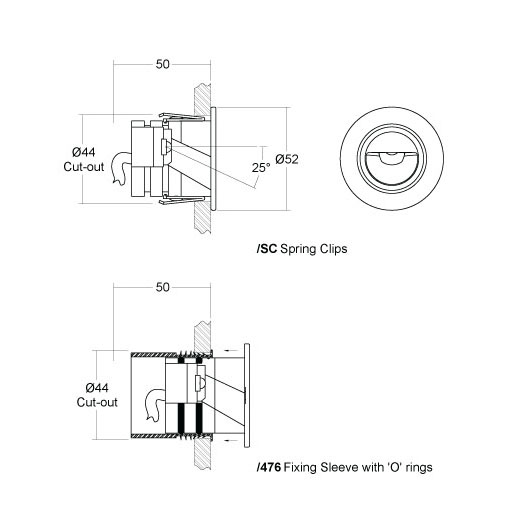

Spring clips, 'O' rings and the /476 fixing sleeve

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD57-C1-350), 1.7W @ 500mA (LD57-C1-500) or 2.4W @ 700mA (LD57-C1-700)

Materials

Machined 316 Stainless Steel bezel, hard anodised aluminium body, 5mm black ceramic screen print borosilicate glass

IP Rating

IP68 - Not for permanent submersion (for permanent submersion applications use LD242A)

Downloads

LD57
LD57C1-1 Datasheet
LD57
Design Pack
LD57
Install Instructions
LD57
Drivers
