LD59

Description

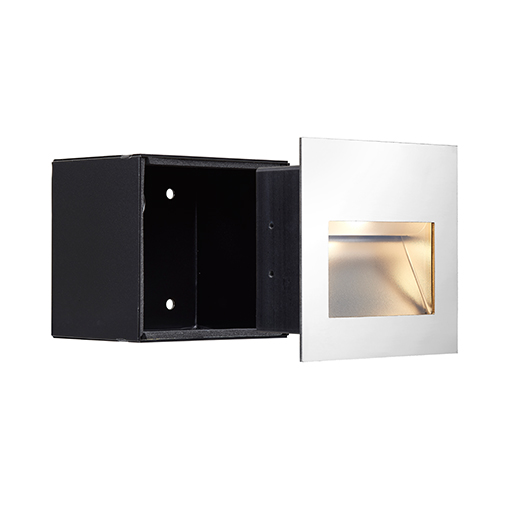

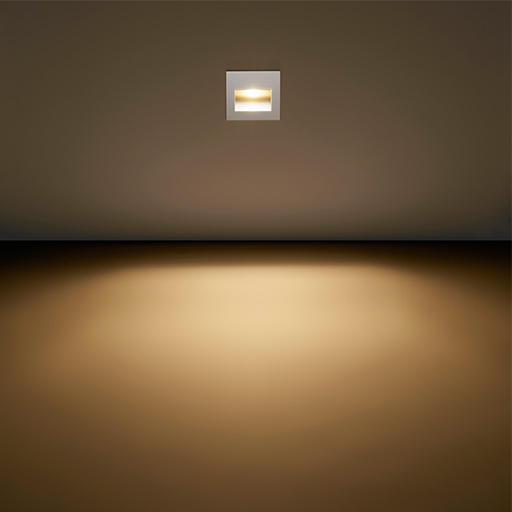

LD59 replaces the LD10234 and offers the same low glare and broad illumination with an IP67 rating for both interior and exterior projects. The square recessed wall light uses a single LED for a soft edge beam with no multiple shadows. It comes as standard with a 1.5mm polished & passivated 316 stainless steel bezel with no visible fixings. The specular reflector gives a diffused wash of light onto a path or floor with minimal glare.

Applications

Floor Wash, Steps, Yacht Lighting, (50lm-200lm) Miniature range

Fixing

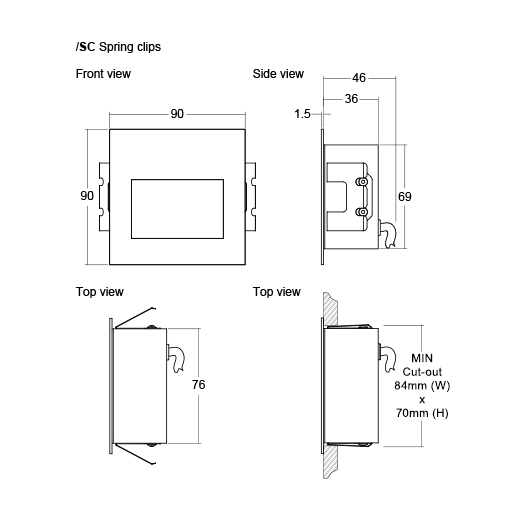

Spring clips /SC, Concrete-in back box /CB

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD59-C1-350), 1.7W @ 500mA (LD59-C1-500) and 2.4 @ 700mA (LD59-C1-700)

Materials

Machined, Polished & Passivated 316 Stainless Steel bezel, hard anodised aluminium body, 2mm borofloat glass

IP Rating

IP67

Accessories

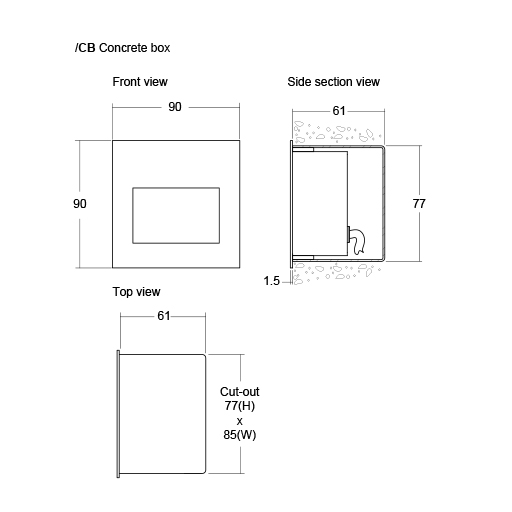

/CB - Concrete-in back box

Downloads

LD59
LD59C1-1 Datasheet
LD59
Design Pack
LD59
Photometric LDT
Files
LD59
Install Instructions
LD59
Drivers
