LD74SR

Description

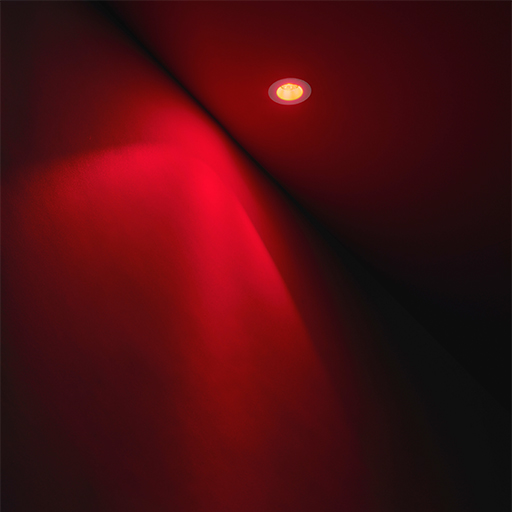

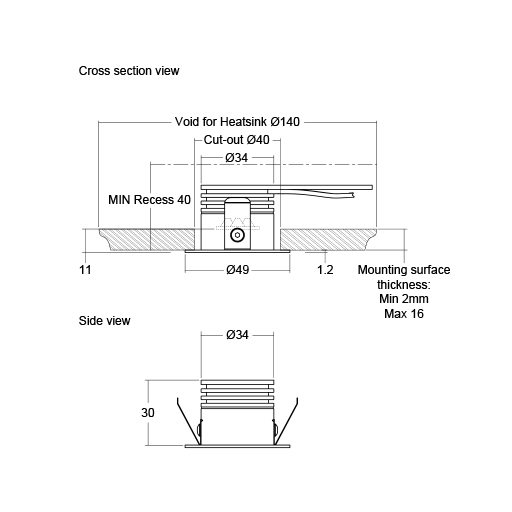

The LD74SR is part of a range of ultra shallow, high-power downlights designed to fit into ceilings with a minimal recess depth. The innovative horizontal heat sink plate combined with low profile optics ensure that the LD73SR fits into a ceiling depth of only 40mm, whilst delivering over 357lm, making it is ideal for general lighting or display applications. Originally designed for yacht installations, this fitting can be specified with an extra red LED for nighttime navigation. It is also rated at IP54 as standard making it ideal for use in wet environments.

Applications

Display and Shelf, Downlights, Wall Wash, Yacht Lighting

Fixing

Spring Clips /SC

LED Information

3 x NICHIA C1 LED Engine: 3.6W @ 350mA (LD74SR-C1-350), 5.1W @ 500mA (LD74SR-C1-500)

Materials

Anodised aluminium body and painted bezel, 1.2mm borosilicate glass

IP Rating

IP54

Downloads

LD74SR
LD74SRC1-2 Datasheet
LD74SR
Design Pack
LD74SR
Photometric LDT
Files
LD74SR
Install Instructions
LD74SR
Drivers
