LD45

Description

A small square, high quality fitting rated IP67 with no visible fixings. Manufactured with a machined 316 Stainless Steel bezel and black anodized body these can be used for indoor and outdoor use. The compact design and set back lens reduces glare making them ideal for step lighting. The 12° beam angle will kiss light across the step or 31° beam can be used to wash light more directly to the edges. Available with a wide choice of beam angles and colour temperatures.

Applications

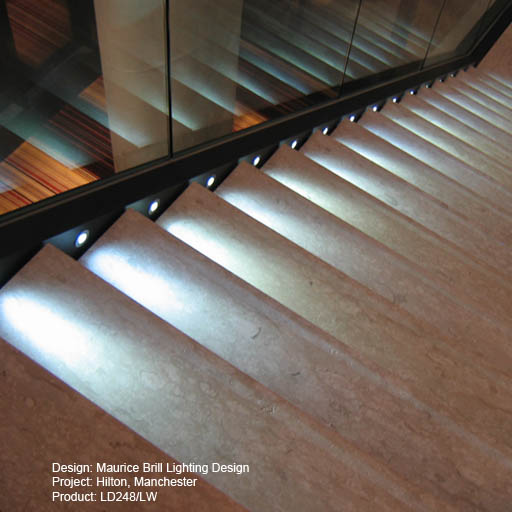

Bathroom and Mirror, Downlights, External, Floor Wash, Steps, Yacht Lighting, Pathway, (50lm-200lm) Miniature range

Fixing

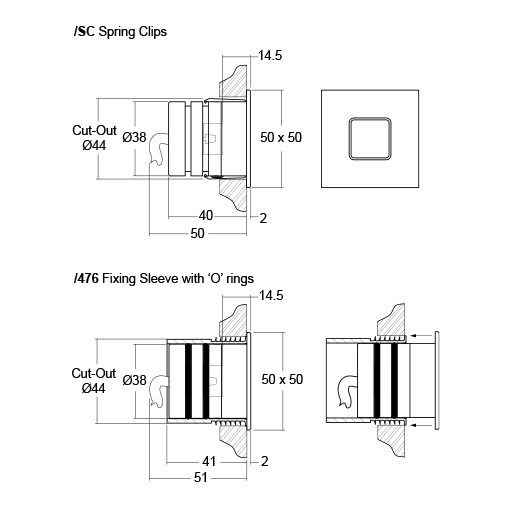

Spring clips, 'O' rings and the /476 fixing sleeve

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD45-C1-350), 1.7W @ 500mA (LD45-C1-500) or 2.4W @ 700mA (LD45-C1-700)

Materials

316 Stainless Steel bezel, hard anodised aluminium body, 5mm borosilicate glass

IP Rating

IP67

Accessories

/476 Fixing sleeve and 'O' rings

Downloads

LD45
LD45C1 Datasheet
LD45
Design Pack
LD45
Photometric LDT
Files
LD45
Install Instructions
LD45
Drivers
