LD780

Description

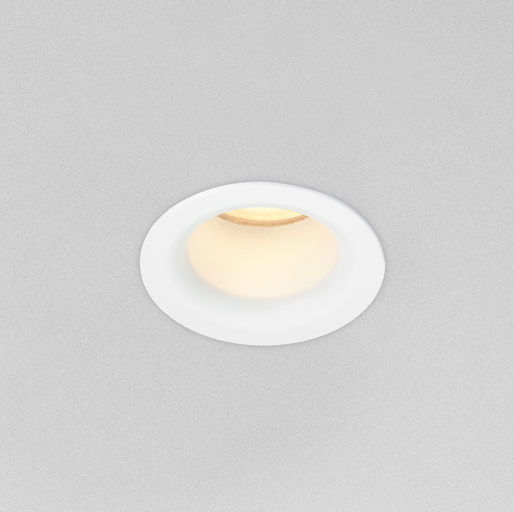

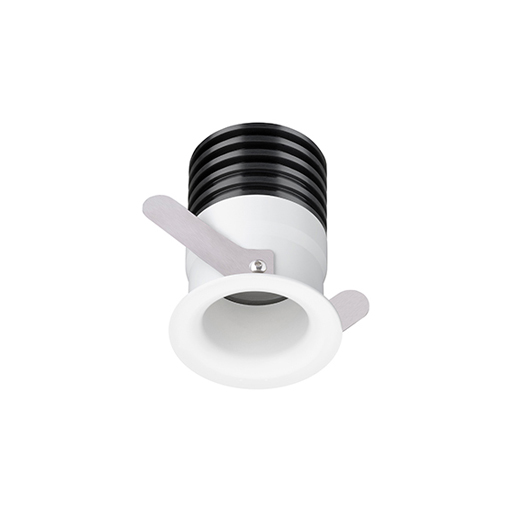

The compact LD780 has an excellent size to output ratio that is ideal for general downlighting and the highlighting of walls and columns within interior, exterior and marine applications. With a diameter of just 46mm, the aluminium bezel can be specified in a wide range of paint finishes and features a deep recessed optic within the body to ensure ultimate low glare. Available LED engines include E2 and F1, offering colour temperatures of 2200K-5000K and a variety of beam angles, including a super tight 10° narrow beam with medium options for more general downlighting. Though compact, the LD780 provides brilliant thermal and light output performance, with a single optic generating a superior beam shape and no multiple shadows.

Key features:

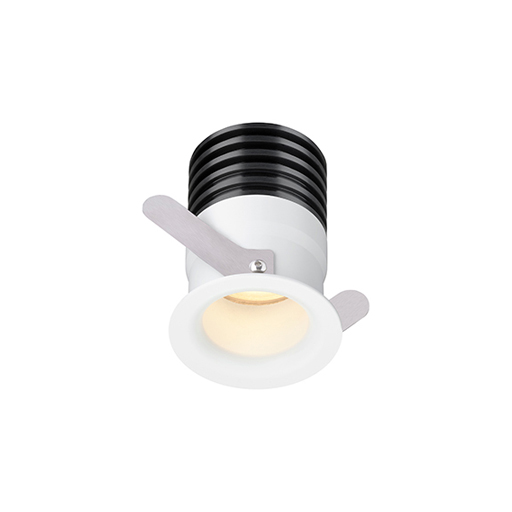

  • Very low glare with deep recessed optic set back 25mm
  • Single optic for superior beam shapes with no multiple shadows
  • Compact powerful fitting delivering over 400lm in 3000K
  • Super tight 10° narrow spot beam available

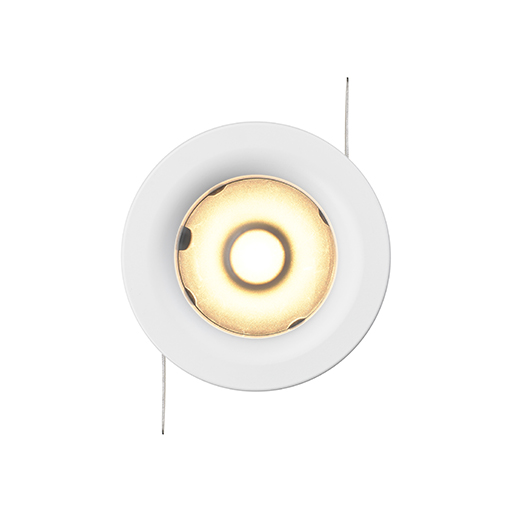

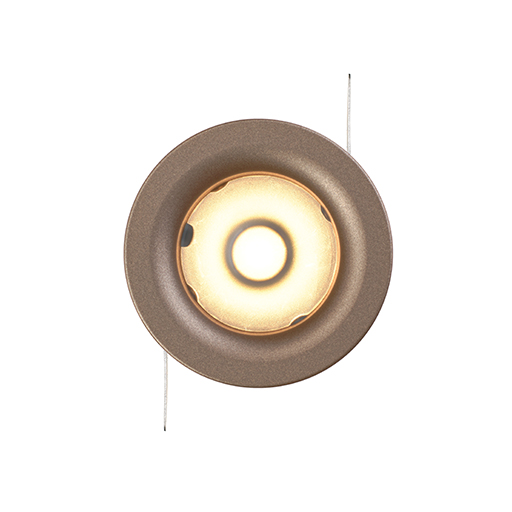

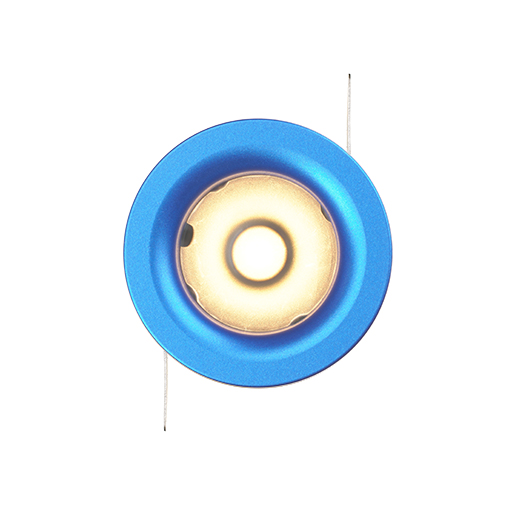

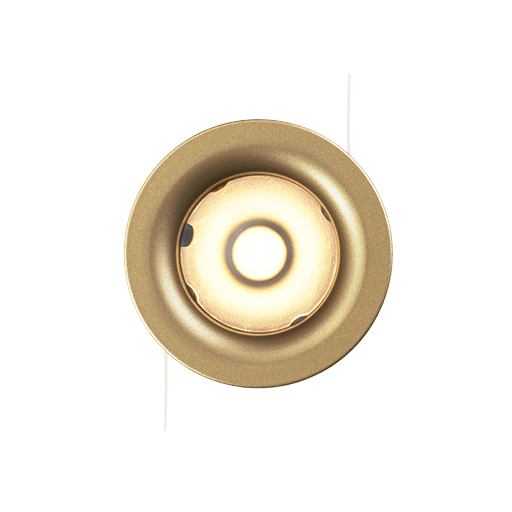

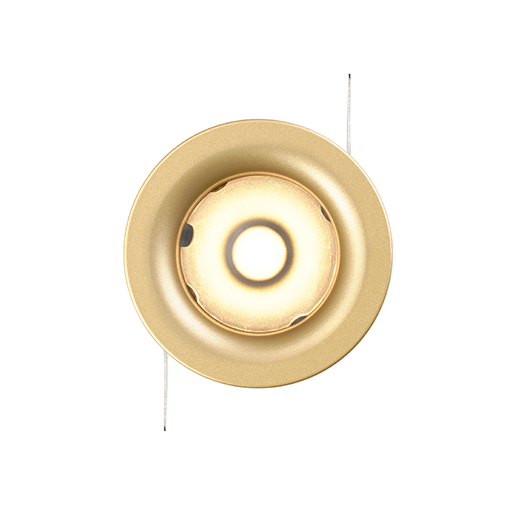

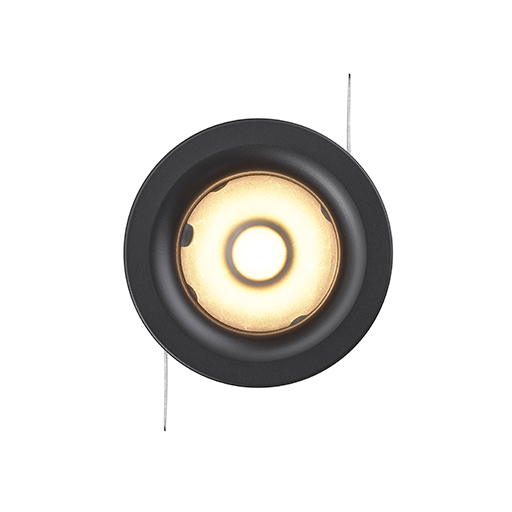

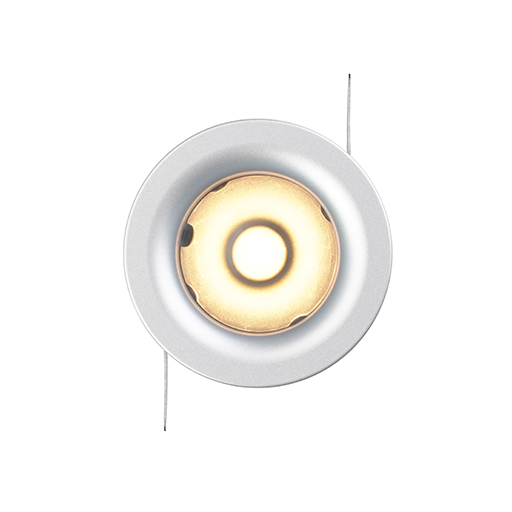

  • Machined aluminium bezel available in a wide range of finishes; White (RAL 9016), Black (RAL 9005), Silver, Antique Bronze, Satin Antique Brass, Satin Brass, Anthracite Grey (RAL 7016) or any RAL paint finish
  • Versatile fitting rated IP65, ideal for interior and exterior projects including marine, hospitality and residential general downlighting, column and wall washing
  • Features our E2 & F1 LED engines which are used across our uplight and surface mounted products enabling colour and beam consistency across a project
  • E2 engine features reverse polarity protection
  • F1 COB engine with super warm 2200K option and 90+ CRI
  • Switched, 0-10V, Casambi, DMX, DALI, or Mains dimmable drivers available

Applications

Bathroom and Mirror, Downlights, External, Wall Wash, Yacht Lighting

Fixing

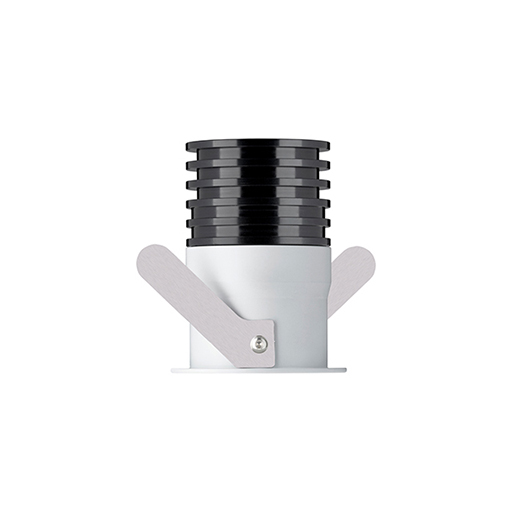

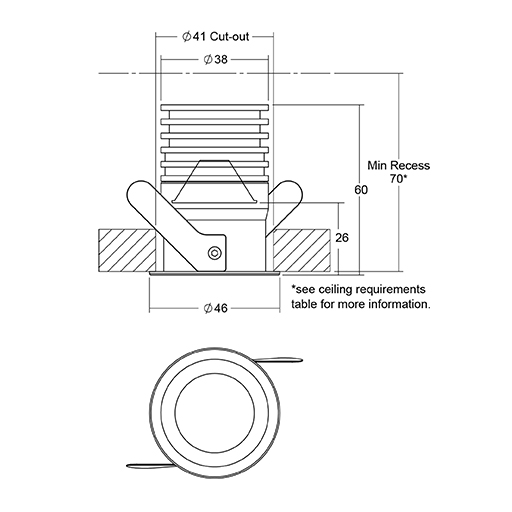

2 x spring clips supplied as standard

Lamp Information

E2 LED Engine - Up to 7W @ 500mA

F1 LED Engine - Up to 7W @ 700mA

Materials

Bezel: aluminium, available in a wide range of paint finishes Body: black anodised

IP Rating

IP65

Downloads

LD780
LD780E2F1-2 Datasheet
LD780
Design Pack
LD780
Photometric LDT
Files
LD780
Drivers
