LD790

Description

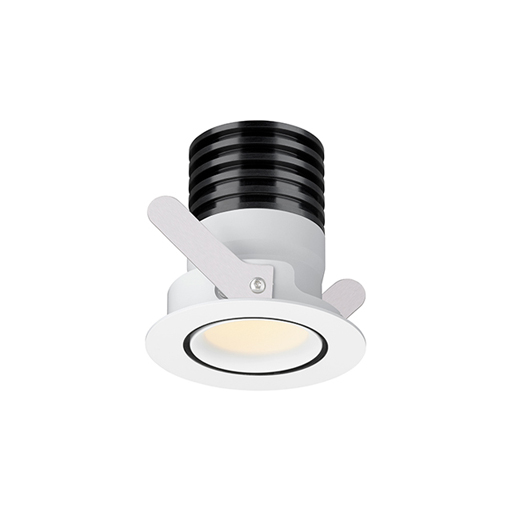

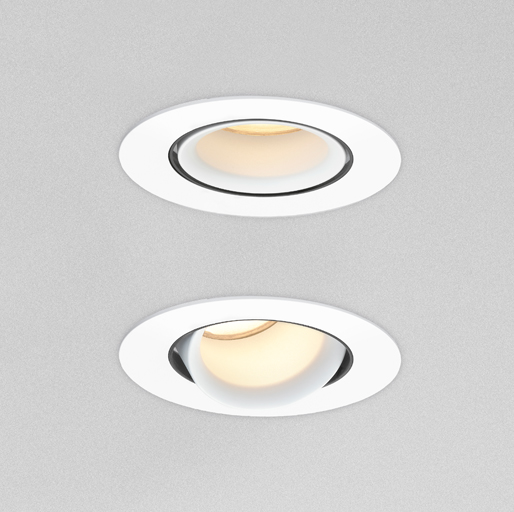

The compact LD790 has an excellent size to output ratio that is ideal for general downlighting and the highlighting of walls and columns within interior, exterior and marine applications. Featuring a wide range of paint finish options, the aluminium bezel has a diameter of just 60mm and houses a deep recessed optic for ultra-low glare. The adjustable lens assembly can be tilted up to 30° to allow ultimate flexibility when focusing the product. Available LED engines include E2 and F1, offering colour temperatures of 2200K-5000K and a variety of beam angles, including a super tight 10° narrow beam and medium options for general downlighting. Though compact, the LD790 provides brilliant thermal and light output performance, with a single optic generating a superior beam shape and no multiple shadows.

Key features:

  • Very low glare with deep recessed optic set back 25mm

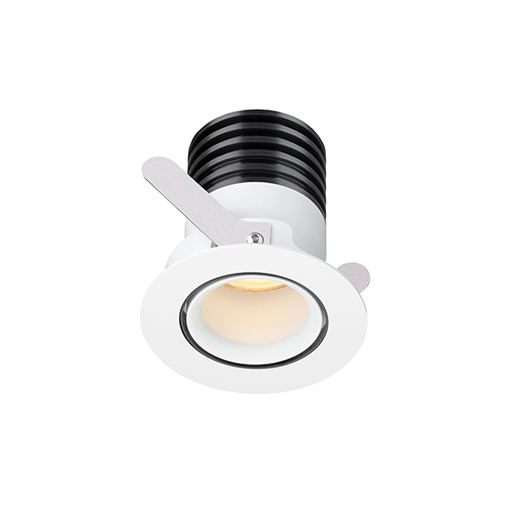

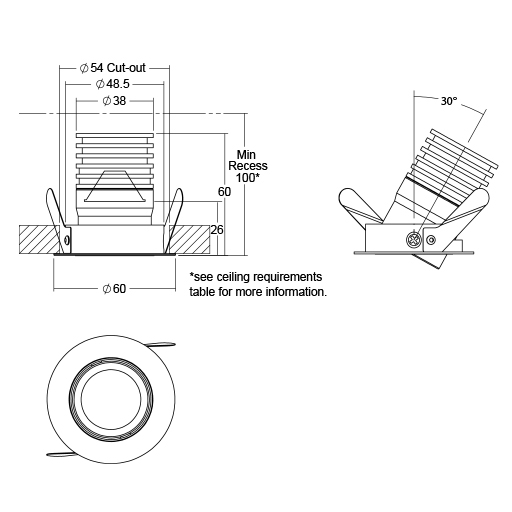

  • Black anti-glare ring (see diagram) to prevent glare when tilted
  • Single optic for superior beam shapes with no multiple shadows
  • Compact powerful fitting delivering over 400lm in 3000K
  • Super tight 10° narrow spot beam available

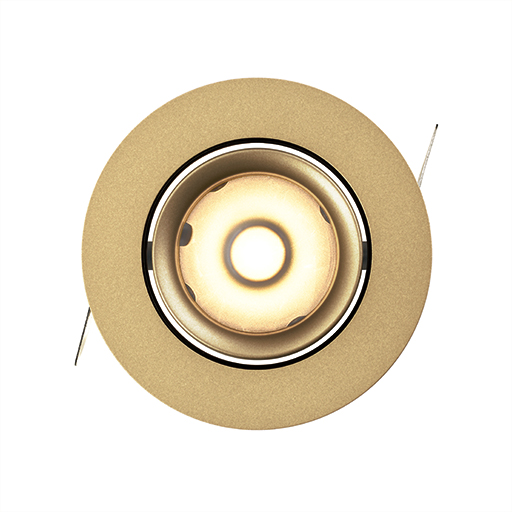

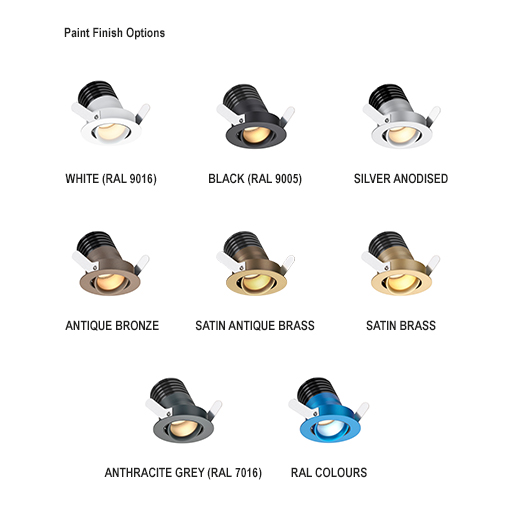

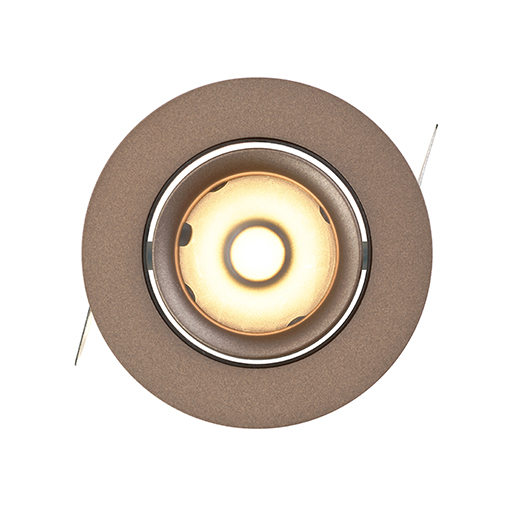

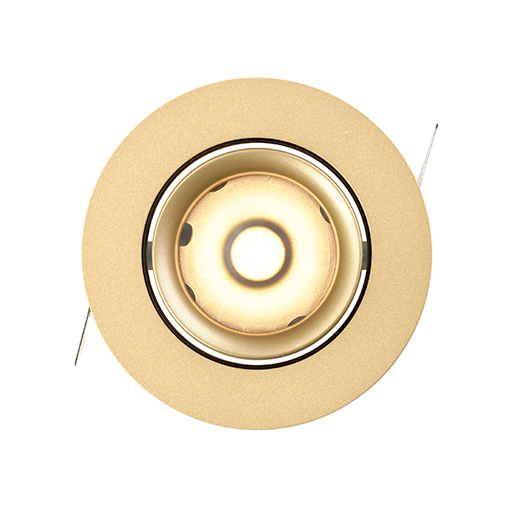

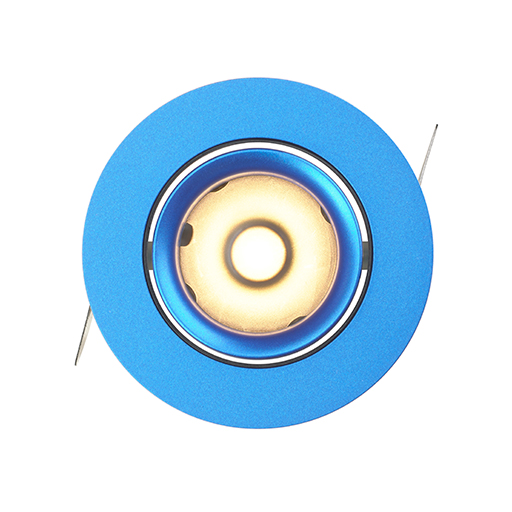

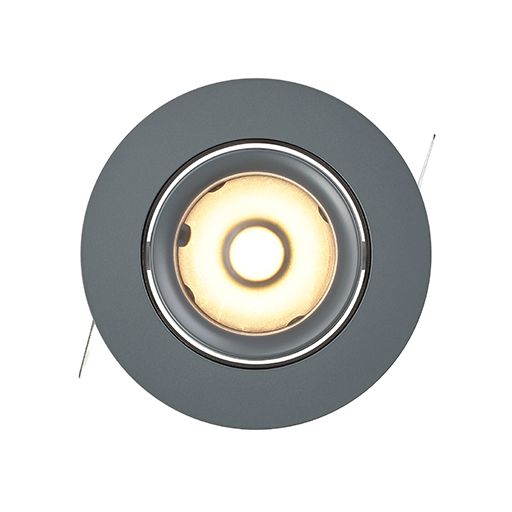

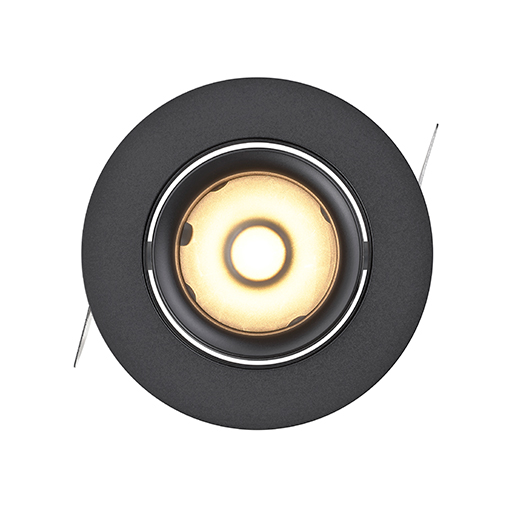

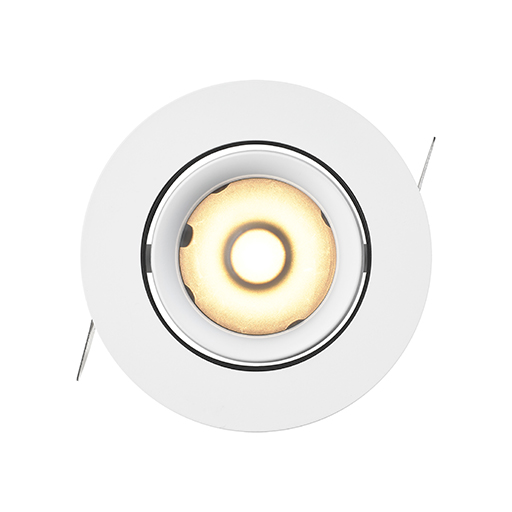

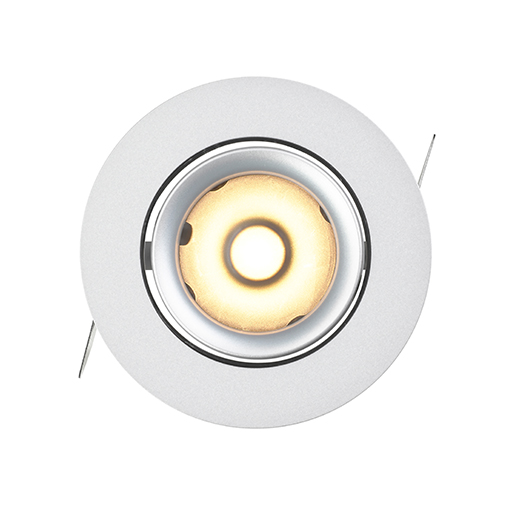

  • Machined aluminium bezel available in a wide range of finishes; White (RAL 9016), Black (RAL 9005), Silver, Antique Bronze, Satin Antique Brass, Satin Brass, Anthracite Grey (RAL 7016) or any RAL paint finish

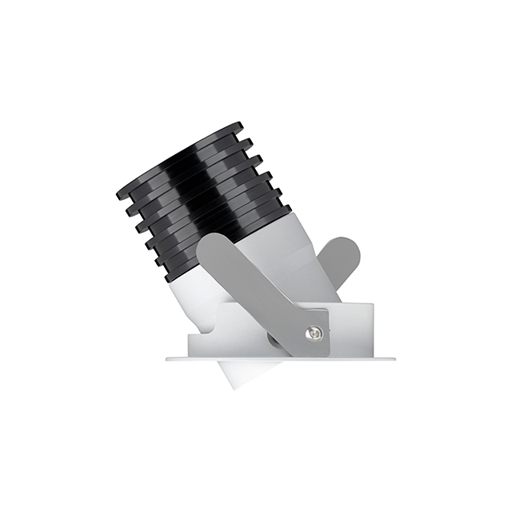

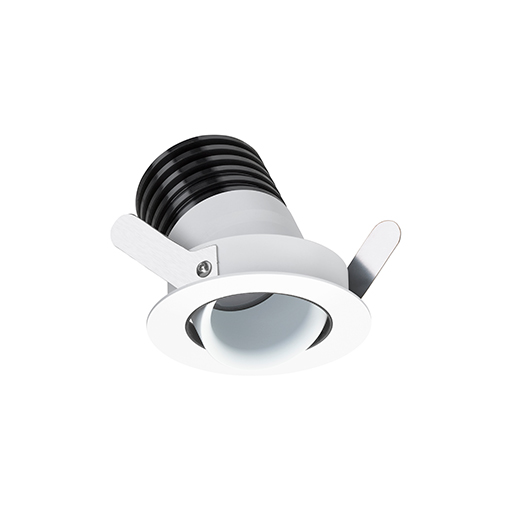

  • 30° tilt adjustability for ultimate flexibility
  • Versatile fitting rated IP65, ideal for interior and exterior projects including marine, hospitality and residential general downlighting, column and wall washing
  • Features our E2 & F1 LED engines which are used across our uplight and surface mounted products enabling colour and beam consistency across a project
  • E2 engine features reverse polarity protection
  • F1 COB engine with super warm 2200K option and 90+ CRI



Applications

Bathroom and Mirror, Downlights, External, Wall Wash, Yacht Lighting

Fixing

2 x spring clips supplied as standard

Lamp Information

E2 LED Engine - Up to 7W @ 500mA

F1 LED Engine - Up to 7W @ 700mA

Materials

Bezel: aluminium, available in a wide range of paint finishes Body: black anodised

IP Rating

IP65

Downloads

LD790
LD790E2F1-4 Datasheet
LD790
Design Pack
LD790
Photometric LDT
Files
LD790
Drivers
