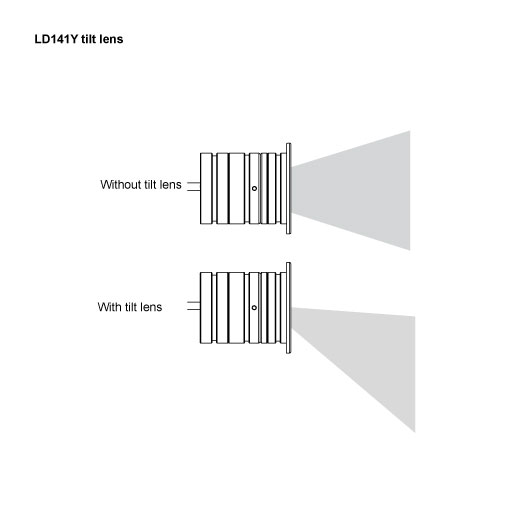

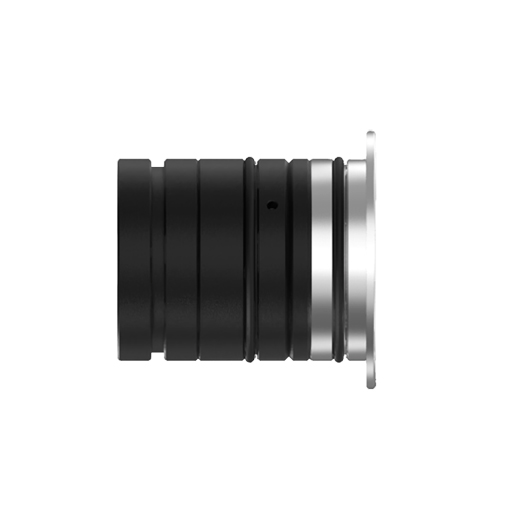

The LD141 has been designed for exterior applications and can be specified as an uplight (LD141X) or wall light (LD141Y). Compact in size, the fittings offer a powerful output with a large range of features. There are 2 LED engine options available. The E3 engine delivers a high output of 462 lumens and beam angles ranging from a 12° narrow to a 15° x 49° oval beam, whilst the F1 engine offers a super warm colour temperature of 2200K. Both configurations offer the ability to specify a 20° tilt film to angle the light down onto the lit surface for a more concentrated effect. Designed with a repairable light engine, glare and fixing accessories, the LD141 offers a circular, low glare, solution for a range of exterior rated applications.
External, Floor Wash, Yacht Lighting, Pathway, (400lm-600lm) Compact range

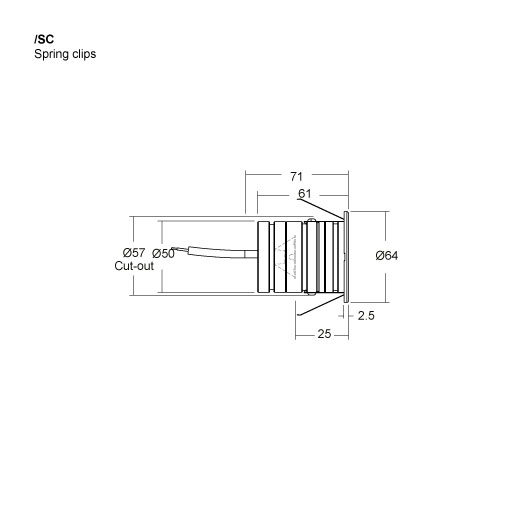

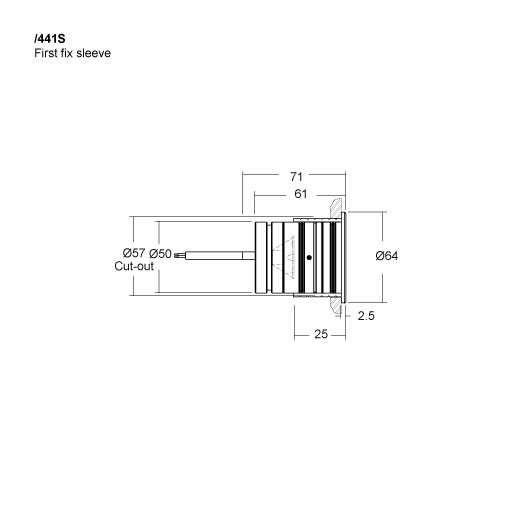

/SC - spring clips, /441S - first fix sleeve
E3 NICHIA LED engine - up to 7W @ 500mA
F1 CREE LED engine - up to 5W @ 500mA

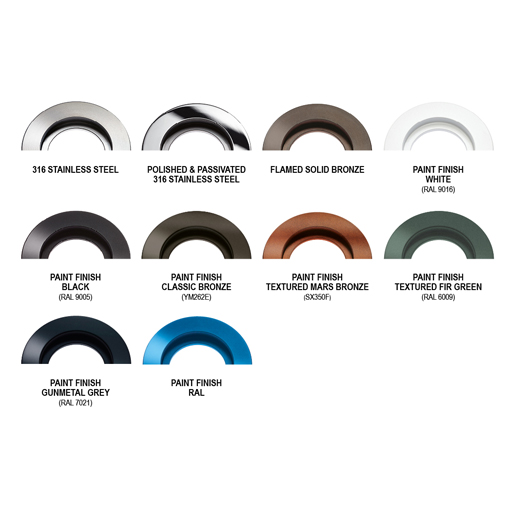

316 Stainless Steel bezel, hard anodised aluminium body, 6mm black ceramic screen print toughened glass

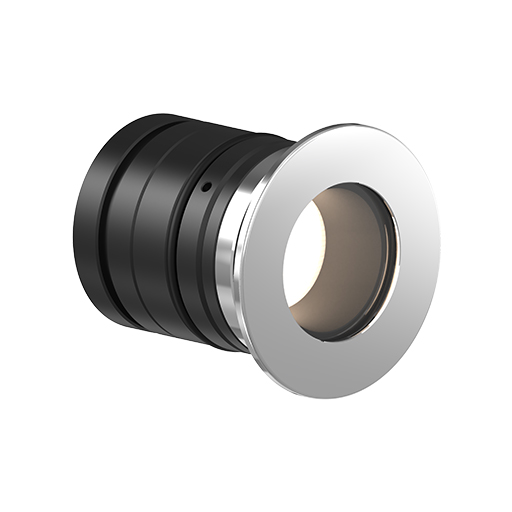

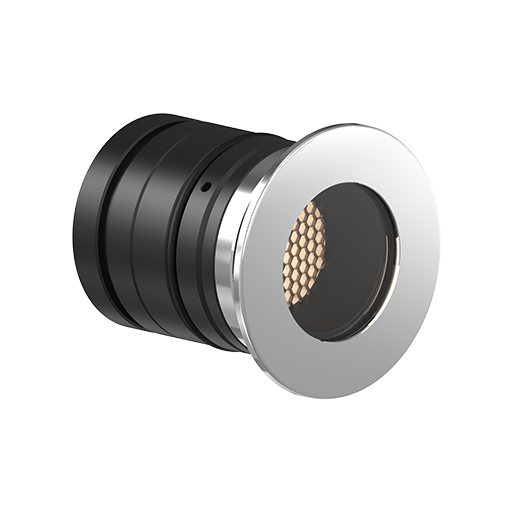

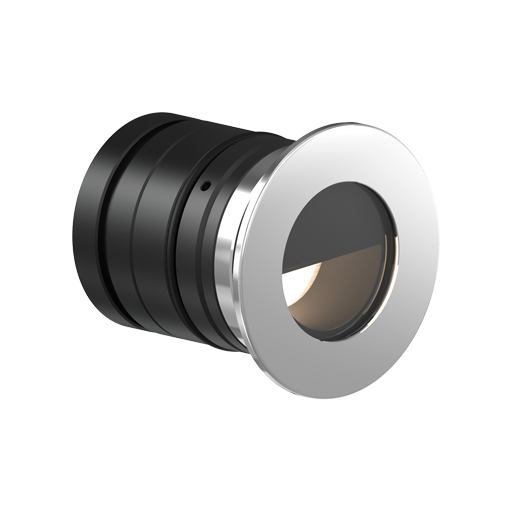

Glare control: /NGS - no glare shield, /GSHM - half moon glare shield, /HL - honeycomb louvre
