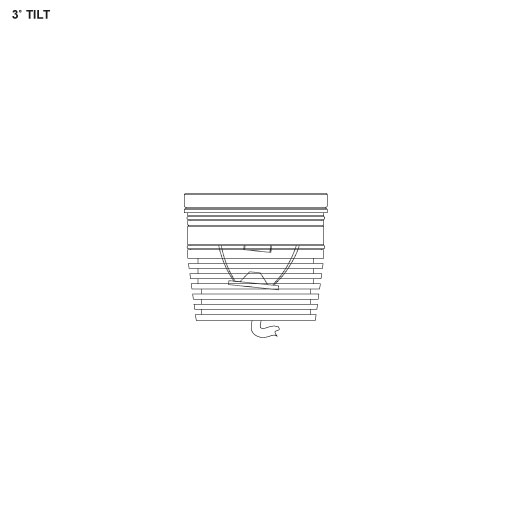

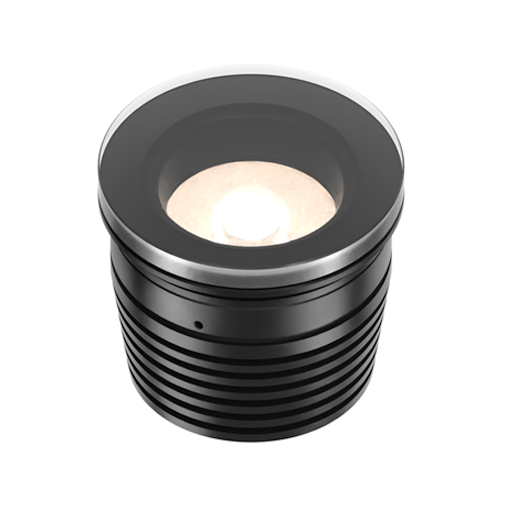

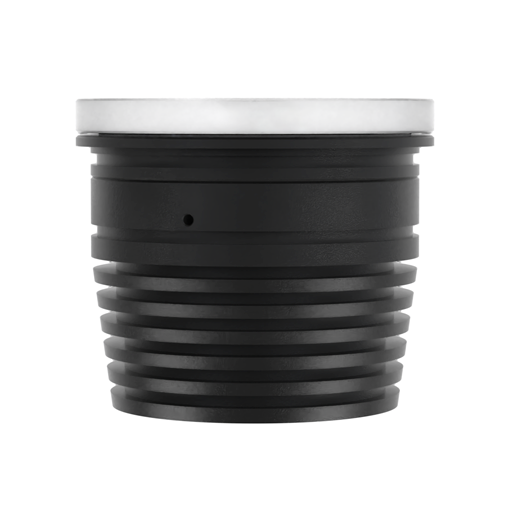

The new Trimless family is an exciting new addition to the LightGraphix product portfolio, offering lighting designers a modern aesthetic for their projects. They have been made possible by the modularisation of some of our existing fittings. The LD154TG is part of our Ultra range, delivering up to 1375lm from a minimal body depth of 85mm including the seamless glass bezel. It features an asymmetric beam with optics set at a 3° tilt, allowing the fitting to be installed further away from the lit surface and focus the light where needed. There are 3 LED engine options available. Our new P1 engine delivers the highest output, whilst the E3 offers an exceptional extra narrow beam of 10° and the N1, a 14° beam. The lens assembly features large 50mm optics which offer ultra-high efficiency, superior beam quality and low glare. Reaching heights of up to 14 metres and designed with our robust glass bezel, the LD154TG demonstrates an excellent size-to-output ratio, offering a discreet yet powerful exterior solution.
External, Recessed Uplighting, Wall Wash, Yacht Lighting, (900+ lm) Ultra range, Trimless

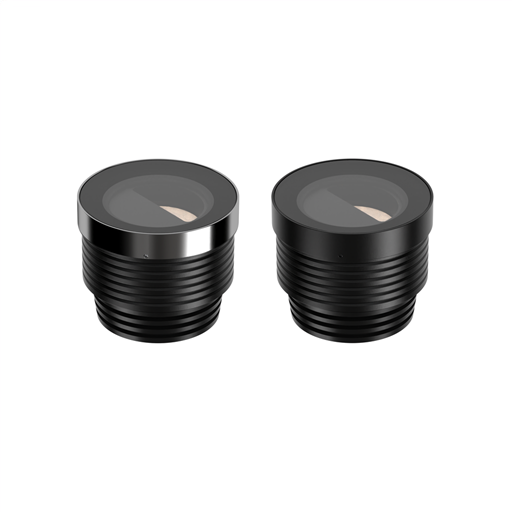

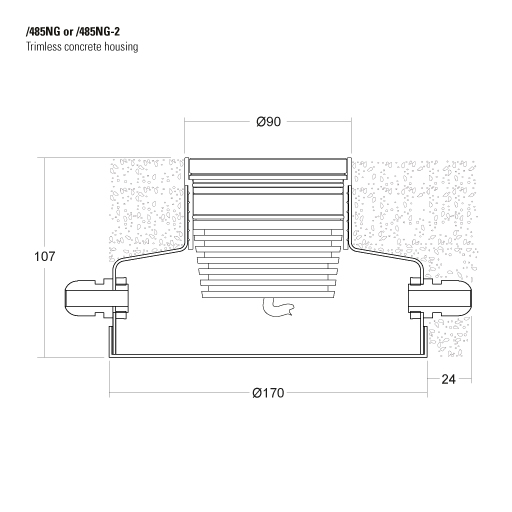

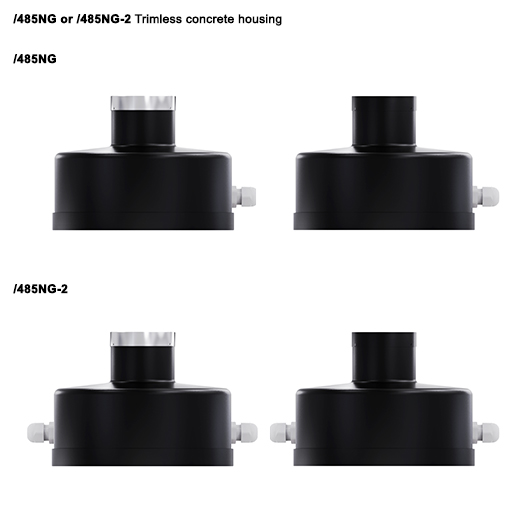

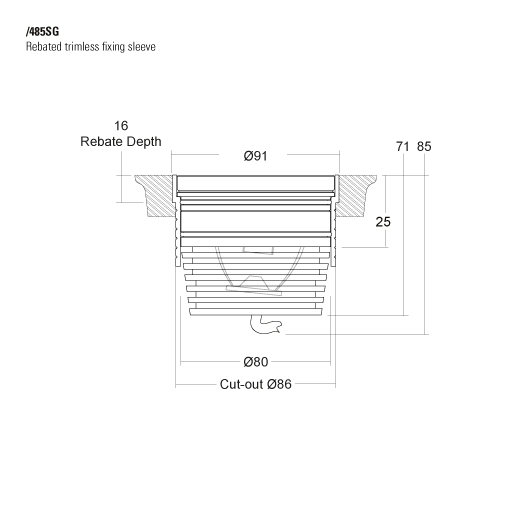

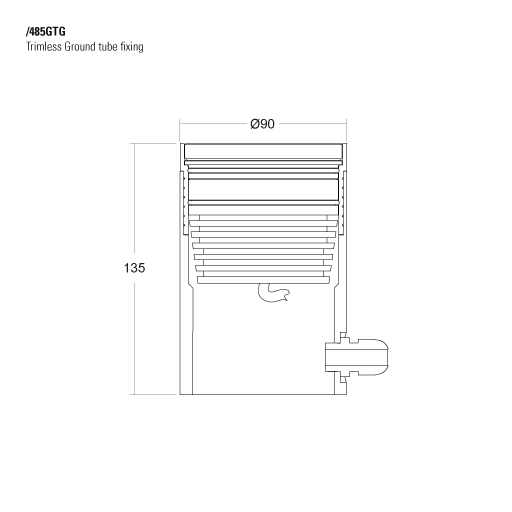

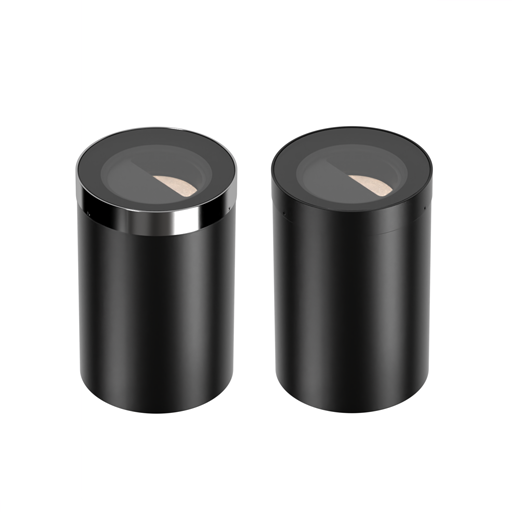

Rebated trimless fixing sleeve (/485SGs), Trimless ground tube fixing (/485GT), Trimless concrete housing with one or two glands (/485NG or /485NG-2)
E3 LED engine - up to 10W @700mA, N1 LED Engine - up to 14W @ 700mA, P1 LED Engine - up to 20W @ 500mA
Anodised aluminium body, glass bezel

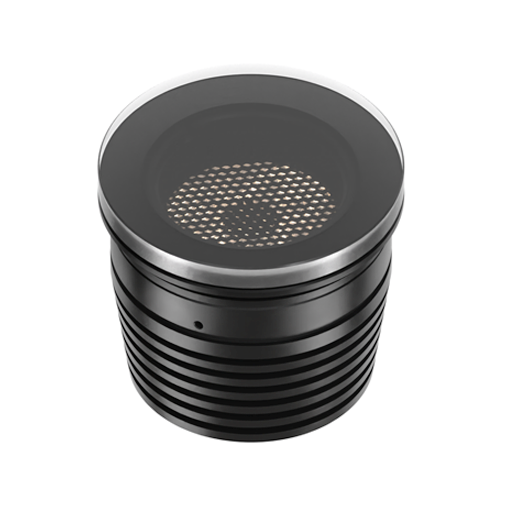

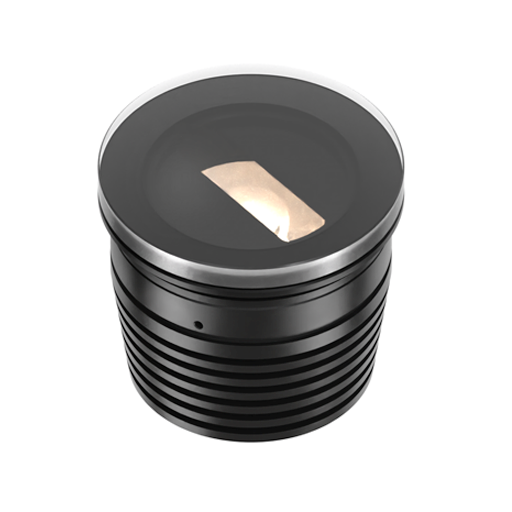

Half-moon glare shield (/GSHM154), Honeycomb louvre (/HL), Oval beam glare shield (/GSOB154)
