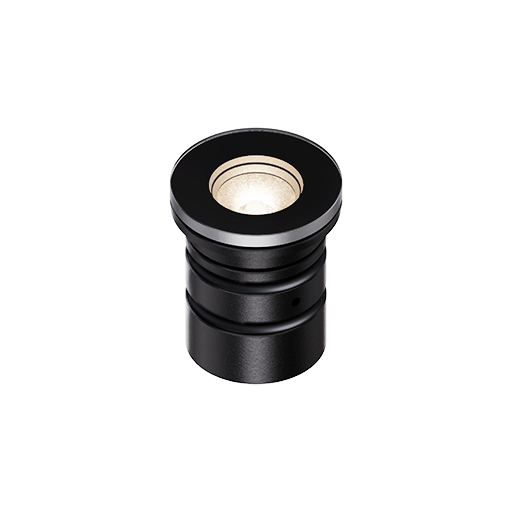

LD44G

Description

The new Trimless family is an exciting new addition to the LightGraphix product portfolio, offering lighting designers a modern aesthetic for their projects. They have been made possible by the modularisation of some of our existing fittings. The LD44G has been designed for interior & exterior applications, featuring a high-quality, seamless glass top to blend perfectly into its surroundings. Developed around our LD42, LD43 and LD44 fittings, it features a 2-core sheathed cable for exterior installations, delivering up to 180 lumens with a drive current option of 700mA. Optics are recessed 10mm for low glare and glare shield options allow aperture reductions of 45% or 70%. An optional 20° tilt film can be used to focus the light onto the lit surface for a more concentrated effect. With a replaceable light engine and anti-wicking barrier, the LD44G offers a robust, miniature solution for exterior-rated uplighting and wall light applications in harsh environments.

Applications

External, Floor Wash, Recessed Uplighting, Steps, Wall Wash, Yacht Lighting, Pathway, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range, Trimless, NEW Product

Fixing

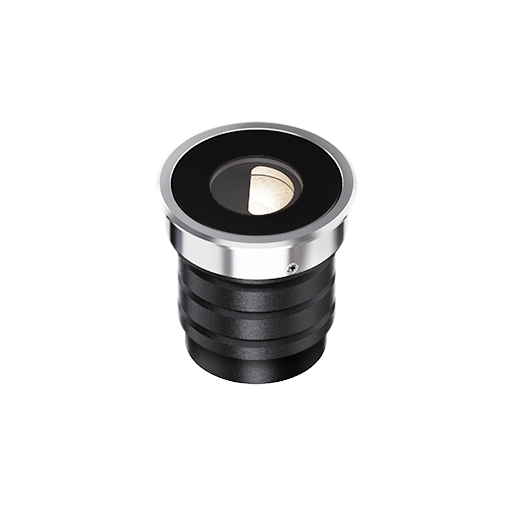

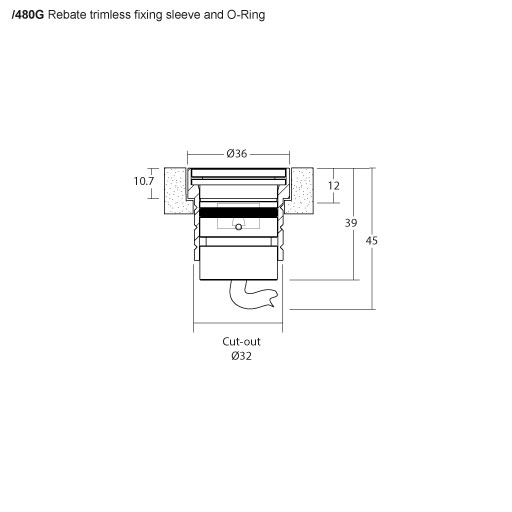

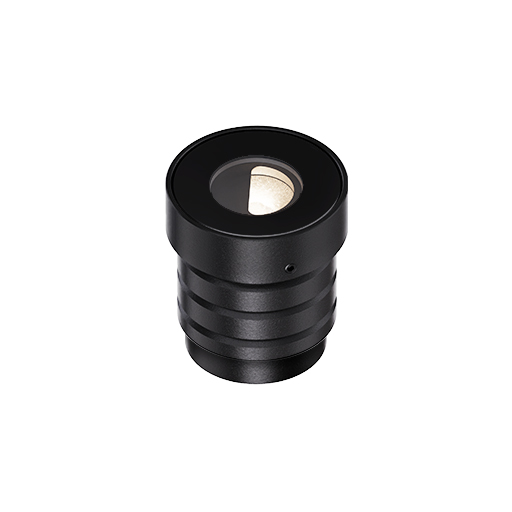

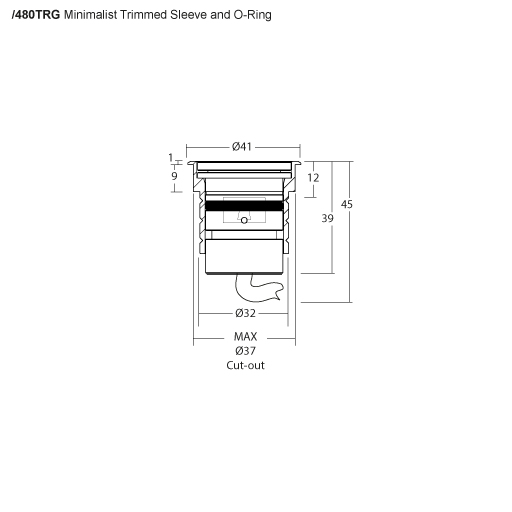

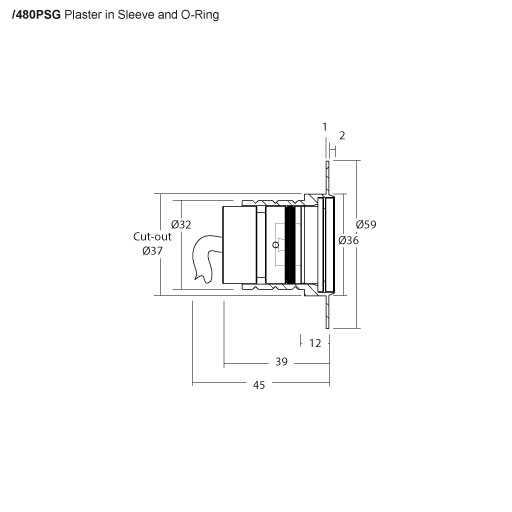

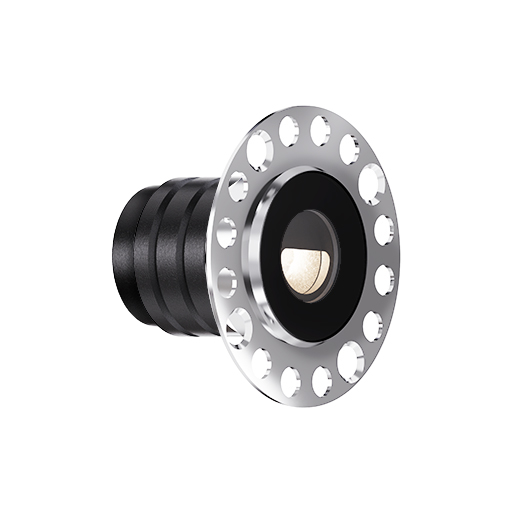

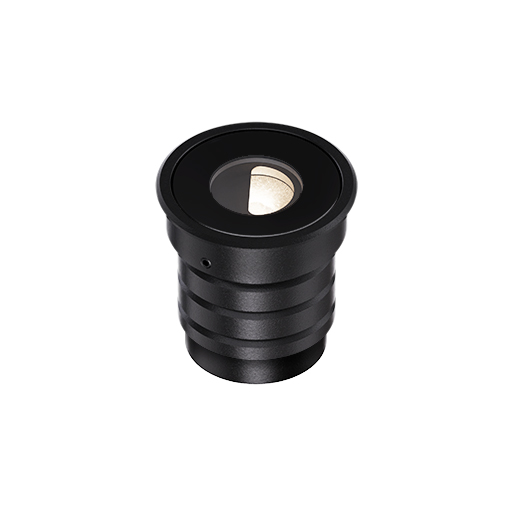

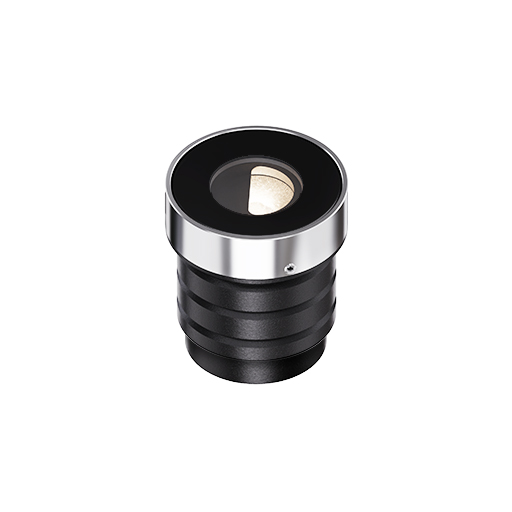

Rebate trimless fixing sleeve and O-Ring (480G), Minimalist Trimmed Sleeve and O-Ring (/480TRG), Plaster in Sleeve and O-Ring (/480PSG)

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA,1.7W @ 500mA, 2.4W @ 700mA

Materials

Anodised aluminium body, glass bezel

IP Rating

IP68

Accessories

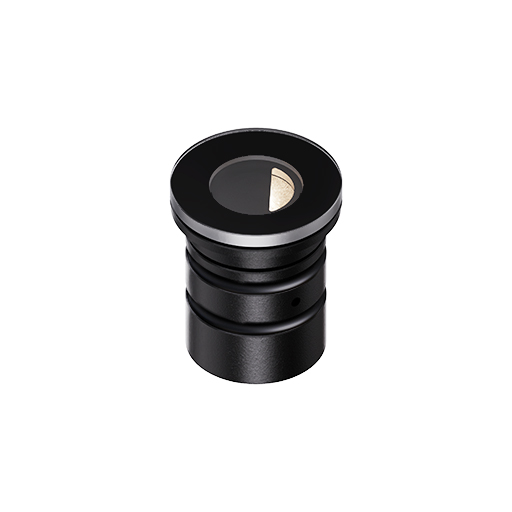

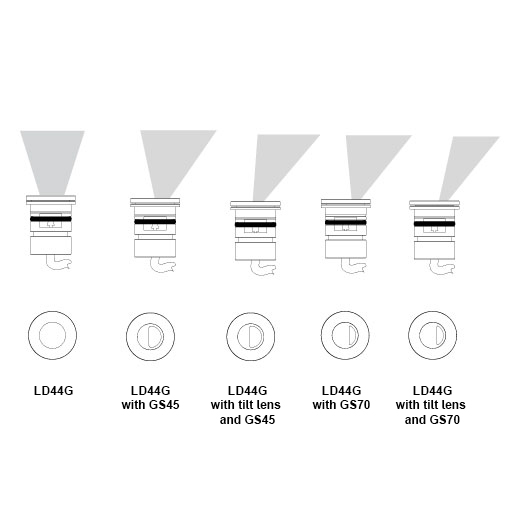

Half moon glare shield, 70% glare shield, tilt lens

Downloads

LD44G
LD44GC1-5 Datasheet
LD44G
Design Pack
LD44G
Photometric LDT
Files
LD44G
Drivers
