LD44Y

Description

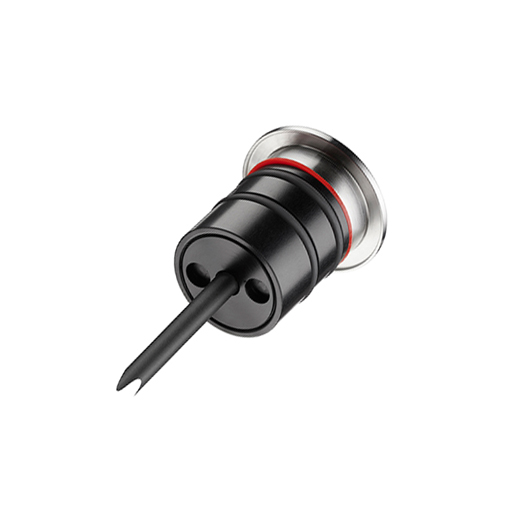

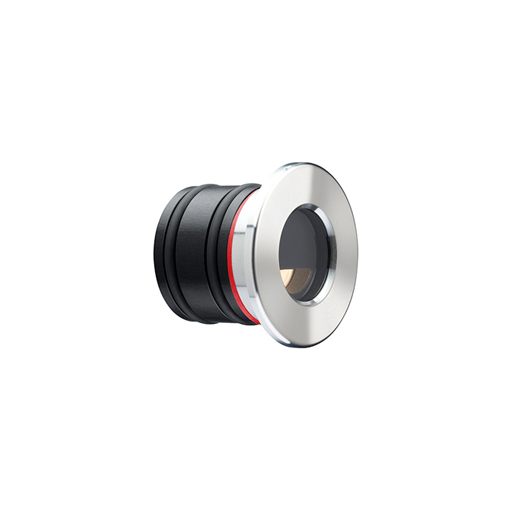

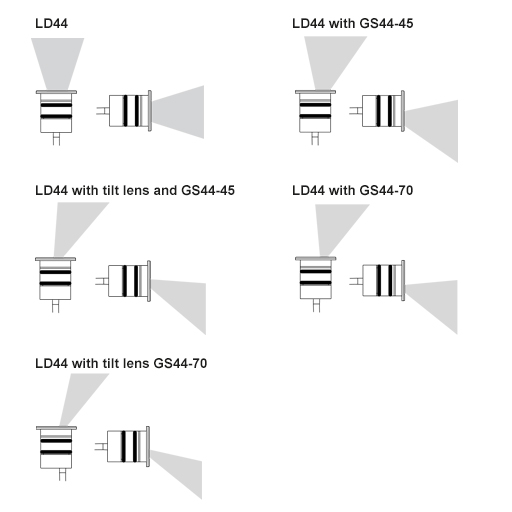

The LD44 has been designed for interior & exterior applications and can be specified as an uplight (LD44X) or wall light (LD44Y). Developed around our LD42 and LD43 range, it features a 2-core sheathed cable for exterior installations, delivering up to 180 lumens with a drive current option of 700mA. Optics are recessed 10mm for low glare and glare shield options allow aperture reductions of 45% or 70%. An optional 20° tilt film can be used to focus the light onto the lit surface for a more concentrated effect. With a replaceable light engine and anti-wicking barrier, the LD44 offers a robust, miniature solution for exterior rated uplighting and wall light applications in harsh environments.

Applications

External, Floor Wash, Steps, Wall Wash, Yacht Lighting, Pathway, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

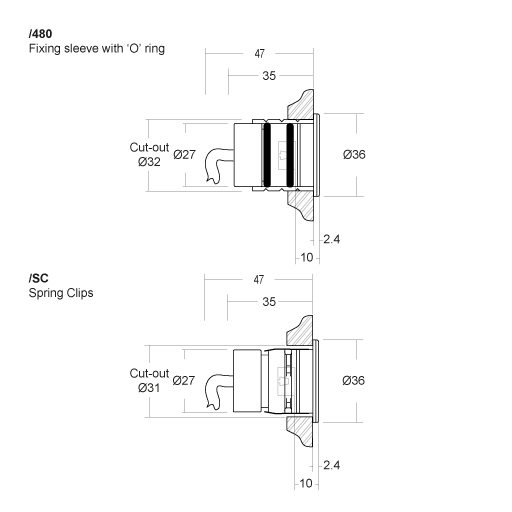

Spring clips, Fixing sleeve and O-rings

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA,1.7W @ 500mA,700mA @ 2.4W

Materials

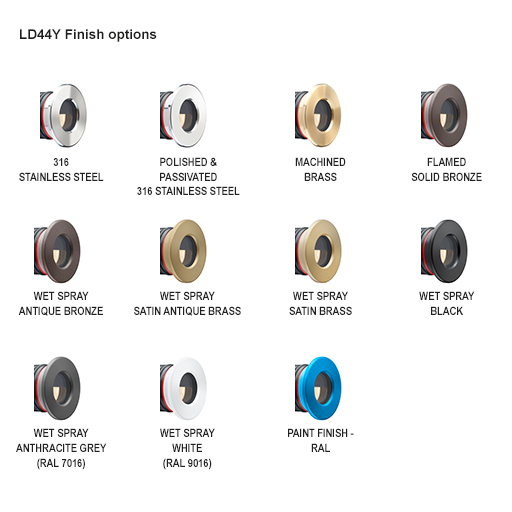

Hard anodised aluminium body, machined 316 stainless steel bezel

IP Rating

IP68

Accessories

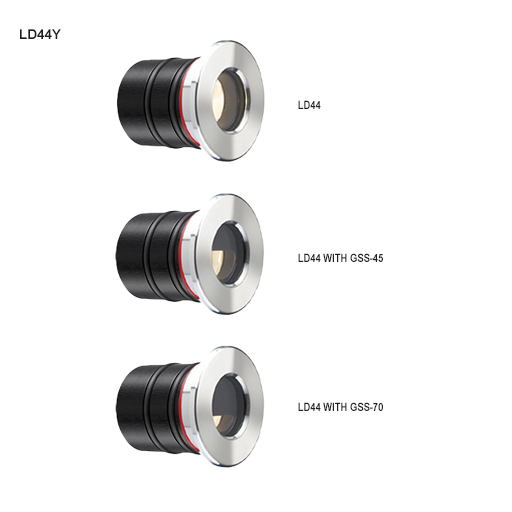

GS44-45 Half moon glare shield, GS44-70 half moon glare shield

Downloads

LD44Y
LD44C1-7 Datasheet
LD44Y
Design Pack
LD44Y
Photometric LDT
Files
LD44Y
Install Instructions
LD44Y
Drivers
