LD57SQ

Description

The LD57SQ is the square bezel version of the LD57. It has been specifically designed to produce minimal glare and is IP67 rated.This makes it perfect for use as a steplight or bulkwalk mounted yacht decklight. The LED is hidden from view by a glare shield and whilst the lack of an optic means output is lower, it is adequate for gentle deck and steplighting without any glare from the lightsource. It has no visible fixings, and is available with a choice of colour temperatures, working best when run at 700mA 2.4W, LD57SQ-C1-700.

Applications

Bathroom and Mirror, External, Floor Wash, Steps, Yacht Lighting, Pathway, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

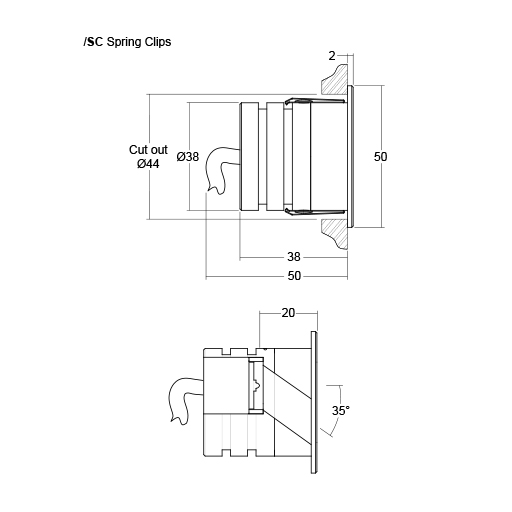

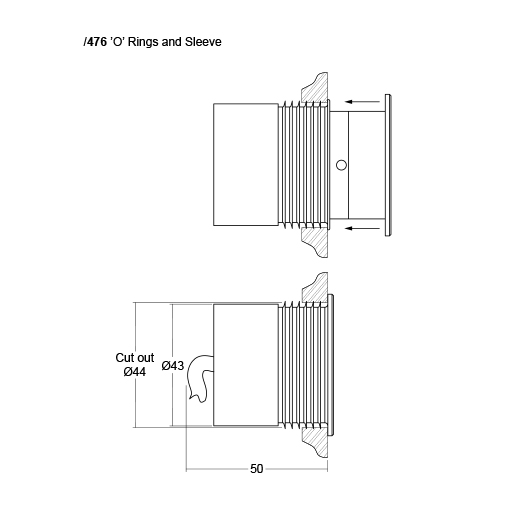

Spring clips or 'O' rings with /476 fixing sleeve

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD57SQ-C1-350), 1.7W @ 500mA (LD57SQ-C1-500) and 2.4W @ 700mA (LD57SQ-C1-700)

Materials

Machined 316 Stainless Steel bezel, hard anodised aluminium body, 2mm borosilicate glass

IP Rating

IP67

Downloads

LD57SQ
LD57SQC1 Datasheet
LD57SQ
Design Pack
LD57SQ
Install Instructions
LD57SQ
Drivers
